INSTALLATION AND SERVICE MANUAL

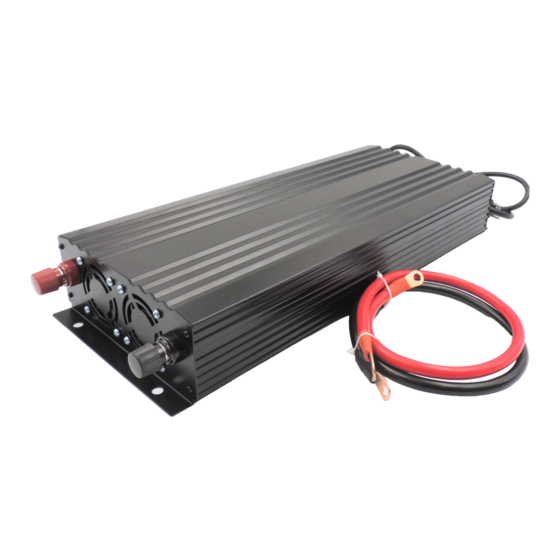

Model # RAI-1500
Primary Sump Pump Backup Power System
NOTICE: INSTALLER - Please provide this manual to the property owner
responsible for the service and maintenance of the sump pump system.
2723 Kersten Court, Kalamazoo, Michigan 49048
www.RAYBEND.com
Phone: (269)-254-8497
©
2020 RAYBEND. All Rights Reserved.
Advertisement
Table of Contents
Summary of Contents for Raybend RAI-1500
- Page 1 Primary Sump Pump Backup Power System NOTICE: INSTALLER - Please provide this manual to the property owner responsible for the service and maintenance of the sump pump system. 2723 Kersten Court, Kalamazoo, Michigan 49048 www.RAYBEND.com Phone: (269)-254-8497 © 2020 RAYBEND. All Rights Reserved.
- Page 2 GENERAL INFORMATION To ensure safe and reliable operation, please carefully read this service and installation manual in its entirety before installing and / or using this product. Reasonable care and safe methods in according with sound plumbing practices should be strictly adhered to. Before installation, refer to and understand all relevant local plumbing and electrical codes. DO NOT THROW AWAY THIS MANUAL.
- Page 3 OPERATION When 120VAC household power is available to the Power Unit and the unit is powered ON ( Power Indicator is “GREEN”) , household power is directly routed through to both of the Output Power Outlets on this unit. While the CHARGER SWITCH in the on position, the Power Unit is also charging the deep cycle battery.
- Page 4 INSTALLATION 1. Mount the power unit on the wall at least 36 inches off the floor and within 3 feet of a 120 VAC electrical outlet. Secure to the wall studs or anchor securely to a block wall. Make sure to keep all sides of the power unit clear of obstructions by at least 12“.
- Page 5 TROUBLE-SHOOTING (CONTINUED) PUMP DOES NOT RUN OR HUM. 1. Power Unit Fuse/Overload Protection tripped or loose. Check / replace fuse. 2. Water level in pit may be too low to activate switch. Add more water to pit. 3. Plug on power cord may not be making contact in receptacle. Check security and connection. 4.
- Page 6 You MUST retain your original purchase receipt along with this manual. In the event that you need to exercise a warranty claim, you MUST send a copy of the purchase receipt along with the material or correspondence. Please call RAYBEND (269-254-8497 for return authorization and instructions.
- Page 7 (the “Warranty Period”). During the Warranty Period, RAYBEND will repair or replace at no coast to you, to correct any such defect in products founds upon examination by RAYBEND to be defective in materials or workmanship.
