Whisper SPORT WS2 User Manual

Two Ways Transceivers
User Manual
S E T
G R O P C H
English

WS2 Introduction

Hello! Thank you for choosing the Whisper SPORT
WS2! After a short test period, you will not be able to
imagine a training session without it.
We have tried to structure the manual as easily and
clearly as possible. If you have any questions, please
do not hesitate to contact us by
info@whispersport.com
Please take care to use Whisper accessories only
(headsets, loading equipment etc.) in order to avoid
damage to the system and to protect any warranty
claims.
Whisper SPORT WS2 general information

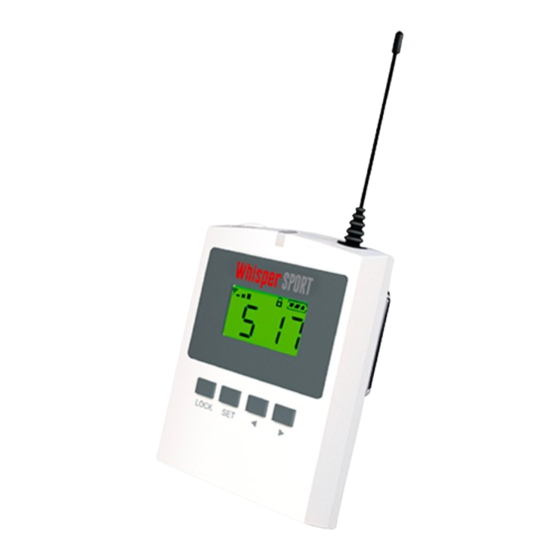

Your Whisper SPORT WS2 consists of 2 white
transceivers. One master and one (or more) slave.
There is no limit to the number slave tranceivers,
which can be used simultaneously.
Two-Way Communication allows a conversation –
similar to a telephone communication.
This system uses a built-in high energy polymer
lithium battery which is environmentally-friendly.
Wider band allows crystal clear sound transmission
Advanced microchips ensure very little noise and
compact size.

Technical Data

• Transmitter Power: 10mW
• Sensitivity: -95 dBm
• Modulation: QPSK
• Frequency response: 40Hz-3.5KHz
• Mic Input Voltage: 20mV
• Input microphone/audio: 3.5mm
• Earphone/audio: 3.5mm
• Display: LCD Back light
• Wave band group: 769-928 Mhz
• Output No. of channels:
Group: 864-869 Mhz (6 channels)
Group: (CE) 863-865 Mhz (2 channels)
Group: 902-928 Mhz (13 channels)
Group: 769-821 Mhz (27 channels)
• Power supply: 3.7 V rechargeable Lithium
• Battery Capacity: 3.7V 2500mAh (Master TRX) 3.7V
1200mAh (Slave TRX)
• Working time: Master 12h in countinus trasmission
Slave 15-20h (depned of the time of trasmission)
