MN9000 Digital Lock Installation Instructions

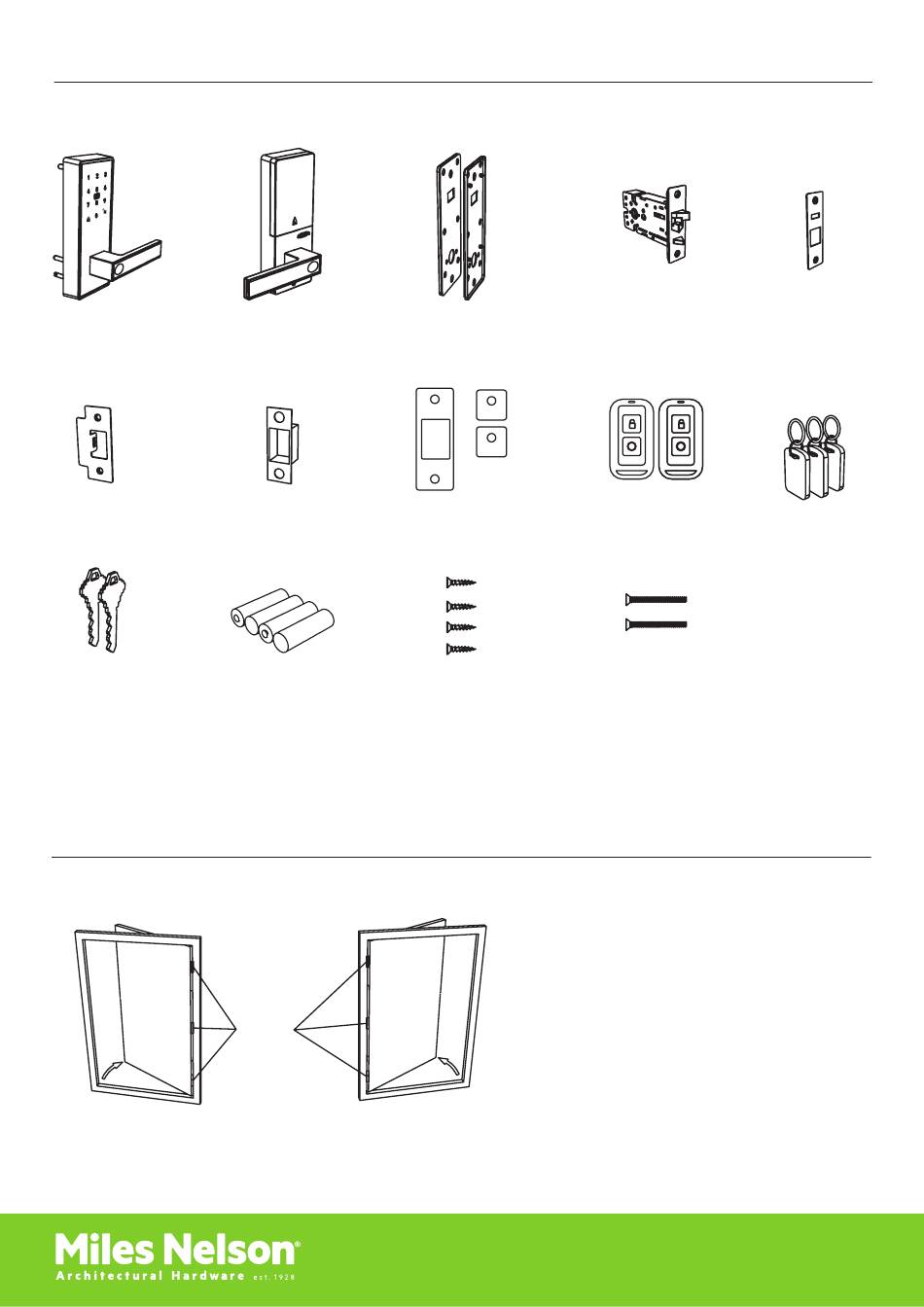

PACKAGE CONTENTS
Exterior
key pad
Strike plate
Keys x 2
IDENTIFYING YOUR DOOR HANDING
Left hand
Interior unit
Dust box
Long packer x 1
Small square packer x 2
AA, 1.5V
3/4" 19mm Screws
Batteries
4 Pack
Hinge
Right hand
Rubber
gaskets x 2
19/16" 65mm Screws
4 each
Stand on the secure side of the door, the outside (where you
would insert your key, or to enter on the keypad).
a. If the hinges are on the left your door is right handed
b. If the hinges are on the right your door is left handed
Door opens inwards.
NOTE: If you purchased the wrong sided unit, no problem,
just visit our website or YouTube channel for instructions on
how to change the handle over.
Mortise lock
Mortise lock
body
face plate
Remote x 2
FOBs x 3
2 each
milesnelson.co.nz
Advertisement
Summary of Contents for Miles Nelson MN9000
- Page 1 MN9000 Digital Lock Installation Instructions PACKAGE CONTENTS Exterior Interior unit Rubber Mortise lock Mortise lock key pad gaskets x 2 body face plate Strike plate Dust box Long packer x 1 Remote x 2 FOBs x 3 Small square packer x 2 Keys x 2 AA, 1.5V...
- Page 2 MN9000 Digital Lock Installation Instructions TEMPLATE SCALE 1.1 FOLD HERE 55mm 90.5mm...
- Page 3 MN9000 Digital Lock Installation Steps DOOR PREPERATION 1. Fold Template and place on door edge at desired height. 2. Mark square spindle height on middle of door edge (This will be the handle height). 3. Mark door face through holes on both sides of door.
- Page 4 MN9000 Digital Lock Installation Steps MECHANICAL KEY Slide cover and use mechanical key to open the lock. Holding lever handle, first turn key 90 degrees anti clockwise, then a further 45 degrees anti clockwise, while pulling lever Slide cover handle down to engage the key cylinder and manual override.
