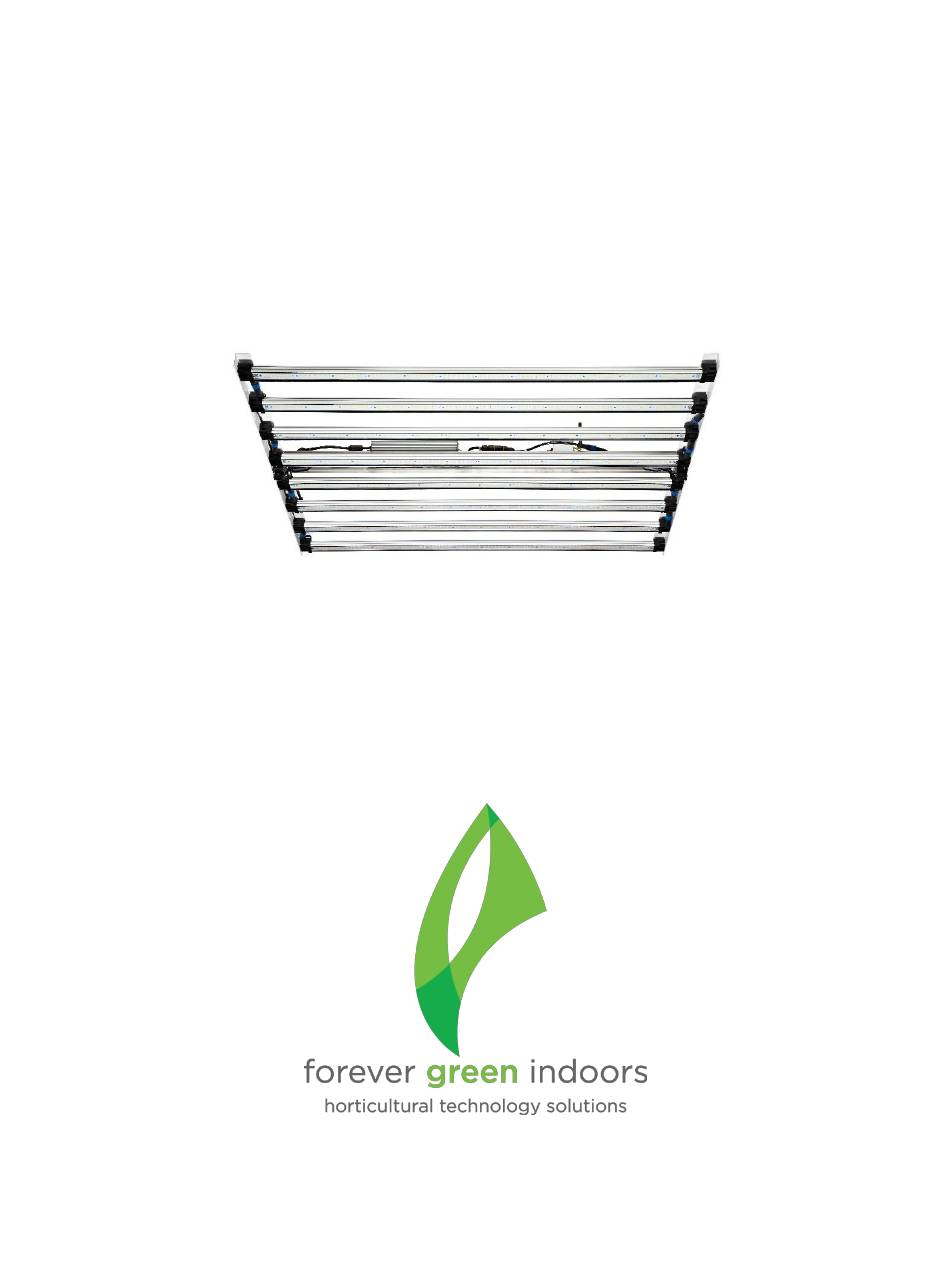

Product Manual & Install Guide
FGI Uniformity Pro
The FGI Uniformity Pro is an indoor LED grow light fixture scientifically designed to replicate the light
of the sun with appropriate PAR (photosynthetically active radiation) levels for plant growth of all phases.
Brought to you by Forever Green Indoors, home of FGI brand LED grow lights
Forever Green Indoors 1314 S. Grand Blvd, Suite 2-127, Spokane, WA 99202
1-800-630-7345
FGI is a registered trademark of Forever Green Indoors
1
Advertisement
Related Manuals for Forever Green Indoors FGI Uniformity Pro
Summary of Contents for Forever Green Indoors FGI Uniformity Pro
- Page 1 Product Manual & Install Guide FGI Uniformity Pro The FGI Uniformity Pro is an indoor LED grow light fixture scientifically designed to replicate the light of the sun with appropriate PAR (photosynthetically active radiation) levels for plant growth of all phases.
-
Page 2: General Care
Do not spray the light with chemicals. Clean the light with a damp cloth using water only. Before cleaning or performing maintenance, unplug the light from the wall socket, or turn off at the breaker. GENERAL CARE The FGI Uniformity Pro product line is a passively cooled LED grow light. There are no moving parts. - Page 3 They are sealed and designed for damp and wet environments and for maintenance-free performance. Some basic care will keep your system operating at peak performance during the life of your FGI lamp. In order for the system to properly cool itself, at least two inches of space is required between the power supply/driver housing and the roof of your grow area.
- Page 4 Your FGI Uniformity Pro ships partially constructed and folded (A) to reduce the expense of shipping and protect the components in the light. Illustration A Take care when unpacking and handling the light fixture. Unpack gently and avoid pinching your fingers when you fold the unit open.
- Page 5 Mount the power supply by attaching the four wing nuts and washers to the screws protruding on the light frame (C). Tighten securely but do not over tighten the nuts. Illustration C Place power supply enclosure on top of brackets, aligning the bracket mounts with the receivers. The snap connector wiring connections are universal however they are slightly different lengths.
- Page 6 Connecting the power to the power supply: Next connect the power supply to both snap connectors on each side (D). Simply plug in and twist the connection closed. This helps ensure the fixture is water resistant. Illustration D Once the power supply enclosure is installed, do not attempt to fold the Uniformity Pro. Doing so will cause significant damage to the fixture.
- Page 7 Attaching the hanging snap connectors: We supply four cable connectors which attach to holes in the top of the frame (E) and these can be used together with supplied cable hangars, rope hangars or other hanging hardware to suspend your Uniformity Pro over the grow area.
- Page 8 Light to Light T connector (daisy chain) for Controller/Dimmer Accessories FGI Uniformity Pro models are available with the optional FGI controllers. Each light is pre-wired to allow connection of the controller, and also pre-wired to allow daisy chaining the units to one another. (F) Illustration F Maximum number of lights per daisy chain: recommended 20 units.
- Page 9 Installation Distance: The FGI Uniformity Pro is designed for ideal light uniformity on the plant canopy. The units should be mounted so that the bars on adjacent units are within the same distance as the bars on the light itself, 50 MM or about 2”...
- Page 10 1-10V dimmer or controllers available from FGI. Non-dimming: The FGI Uniformity Pro can be used without dimming. The unit is designed to produce very uniform and even PAR distribution depending on the height it is hung from the canopy. Moving the light further away from the top of the canopy serves to reduce light intensity and also has the effect of increasing uniformity of light.
-
Page 11: Warranty
FGI is committed to manufacturing and distributing the highest quality products with the highest level of workmanship in the marketplace. We provide a limited 5 year warranty for the FGI Uniformity Pro against defects in manufacturing. Please see our website for a full explanation of our warranty terms and... -
Page 12: Troubleshooting
Troubleshooting Your new Uniformity Pro was designed and built using the highest quality components and electrical design. Unfortunately however, in rare instances, the unit may suffer a malfunction. In the case that the light does not turn on as expected, or, in the case of the Uniformity Pro 640 only half the bars light up, it is likely that there is a wire connection which has come loose. - Page 13 #5 Gently pull the outer cap and then the inner cap down the wire to allow inspection of the wire connection to the T connector. #6 Inspect the two wires (one blue- and one red+) as they lead into the two sockets and the two screws that create a tight connection.
- Page 14 twist while you tighten the outer cap and that the wire in snugly secure in the tensioner. #15 Plug the light back in to the power source and power up the light. IF THE LIGHT FAILS TO COME ON THEN MOVE TO STEP TWO The light does not The second possible cause...
- Page 15 twisted and are touching one another this is the problem which is causing the light to malfunction. #7 Use a small Philips screw driver to unscrew the two terminals. #9 Gently remove the wires from the sockets. IMPORTANT: Before you remove note the polarity indication on the side of the connector next to the Phillips head screw.
- Page 16 power it up. If it still not working follow the steps here based on the symptoms. Next, note which 4 bars are not working and follow the wire back to the T connector. This is the connection you will be troubleshooting. #1 Turn off power to the light and unplug from the wall.
- Page 17 complete this task.) shop@forevergreenindoors.com #9 Gently remove the black- and white+ wires from the sockets. IMPORTANT: Before you remove note the polarity indication on the surface of the connector. They are very small. L is the load or white+ and N is the neutral or black-. #10 Measure the length of the stripped bare wire.
