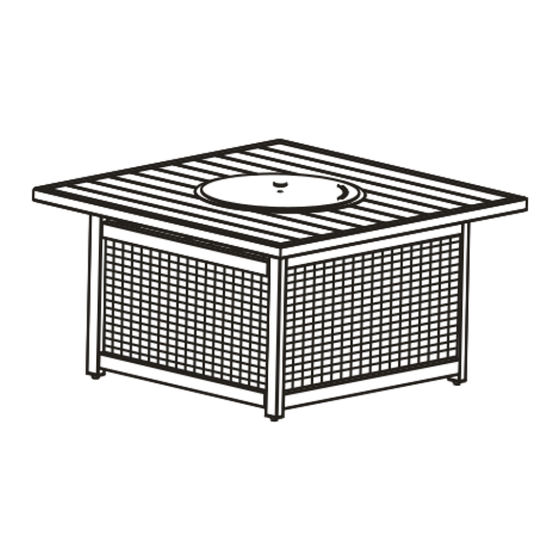

Hanover Outdoor Furniture
IMPORTANT
If you have any problems with this product (missing or damaged parts, assembly issues, etc.),
PLEASE DO NOT RETURN TO THE RETAILER/STORE
from where you purchased the product.
1‐800‐416‐3511
Please call our Toll‐Free Customer Service Hotline at:
Between 9:00 AM and 5:00 PM Eastern Time, Monday through Friday
www.hanover‐products.com
Or visit our website at:
To expedite any future warranty claims, please retain the Instruction Sheet, Warranty
Card and receipt for future use.
For additional on‐line support on assembly, troubleshooting and care & maintenance of your outdoor
furniture, please visit our website at: www.hanover‐products.com.
6/1/2015 (a)
Advertisement
Table of Contents
Related Manuals for Hanover Patio Glow 98900
Summary of Contents for Hanover Patio Glow 98900
- Page 1 Hanover Outdoor Furniture IMPORTANT If you have any problems with this product (missing or damaged parts, assembly issues, etc.), PLEASE DO NOT RETURN TO THE RETAILER/STORE from where you purchased the product. 1‐800‐416‐3511 Please call our Toll‐Free Customer Service Hotline at: Between 9:00 AM and 5:00 PM Eastern Time, Monday through Friday www.hanover‐products.com Or visit our website at: To expedite any future warranty claims, please retain the Instruction Sheet, Warranty Card and receipt for future use. For additional on‐line support on assembly, troubleshooting and care & maintenance of your outdoor furniture, please visit our website at: www.hanover‐products.com. 6/1/2015 (a) ...
- Page 2 Outdoor Furniture 1-Year Limited Warranty Program For a period of one (1) year after purchase, the Manufacturer will either repair or replace defective components in accordance with this Limited Warranty. This warranty is between Manufacturer and the original purchaser and is valid only when accompanied by the original purchaser’s sales receipt showing original date of purchase and location of purchase.
- Page 3 Care & Maintenance Outdoor furniture can be enjoyed for many years when well maintained. Regular Maintenance Wash the furniture with a solution of mild detergent and water, rinse with clear water, and dry thoroughly. To all metal frames, apply a fine, clear automobile wax for maximum protection against harmful ultraviolet exposure and salt air.
- Page 4 ASSEMBLY INSTRUCTIONS CSA Model 98900 ARV08200 Installer: Leave these instructions with consumer. Consumer: Keep these instructions for future reference DANGER WARNING: If you smell gas: Improper installation, adjustment alteration, 1. Shut off gas to the appliance. service or maintenance can cause injury or 2.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Important Safety Information Important About Propane Specifications Parts Identification List Installation Natural Gas Conversion Batteries Maintenance Lighting Instructions Troubleshooting Guide Warranty... -
Page 6: Important Safety Information
IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code. ; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable. The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa). -
Page 7: Important About Propane
IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS A self contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs. and must be equipped with a Type 1 connector and an OPD (overfill protection device). See Figure 1. The LP-gas supply cylinder to be used must be constructed and marked in accordance with the specification for LP-gas cylinders of the U.S. -
Page 8: Parts Identification List
PARTS IDENTIFICATION LIST PART DESCRIPTION PART# CONTROL KNOB FP1245 GAS VALVE FP0307 THERMOCOUPLE FP0004 LP REGULATOR HOSE FP1329 ELECTRODE FP1330 ORIFICE ELBOW FP0310 IGNITION MODULE FP0006 PROPANE ORIFICE FP1283 NATURAL GAS FP1284 ORIFICE “AAA” BATTERY(1.5V) HW0705 FIRE ICE FP1592 FOOTCAP FC0553 1/4"... -
Page 9: Installation
INSTALLATION 1. Identify parts packed in carton against the parts list. Remove all protective materials and set parts on a flat, non-abrasive surface. 2. With the help of another person, carefully place the table top onto the table base. After making any necessary adjustments to the alignment of the table top and the assembled base, use four bolts and washers as shown in Figure 3. - Page 10 4. Tighten the threaded knobs found on the tank tray (Figure. 5) so that the LP tank cannot move from side to side. Do not remove plastic cap from end of threaded section. Figure 5 5. After making any necessary adjustments to the parts, use the hex bolt driver to tighten all bolts.
-
Page 11: Natural Gas Conversion
NATURAL GAS CONVERSION Natural gas conversion must be performed only by your natural gas provider or service company. Step 1- At the control panel, disconnect the rubber gas hose from the gas valve. Step 2- Below the burner, disconnect the aluminum gas tube from the orifice elbow. Step 3- Remove the 2 M4 nuts from the orifice holder and remove the orifice bracket assembly. -
Page 12: Batteries
Step 5- Stick the conversion label on the rating plate as shown in Figure 9 Metal Rating Plate Serial Number _________________ Model Number: 98900 CAUTION: The gas pressure regulator provided with this appliance must be used. This regulator is set for an outlet pressure of This appliance has been converted to use Natural Gas. -
Page 13: Lighting Instructions
LIGHTING INSTRUCTIONS 1. Locate the control and igniter panel. Make sure the control knob is in the “OFF” position. See Figure 12.Open the tank door and open the tank valve all the way. 2. Push in the igniter button. You will hear a slight clicking sound. -
Page 14: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE REMEDY Check that gas tank valve is open. Turn control knob to No Propane Gas at Burner “ON” and push control knob in. Make sure tank has propane gas. Check that AAA battery is installed with negative (-) end first and has a charge. -
Page 15: Warranty
ONE-YEAR LIMITED WARRANTY What is Covered Under This Warranty? The item you have purchased is warranted against defects in material and workmanship for the following parts from the date of purchase for the period of warranty as outlined below, but only when the unit is installed and operated in accordance with the instructions in this Owner’s Manual and in compliance with local building and fire codes: Limited 1 Year •...
