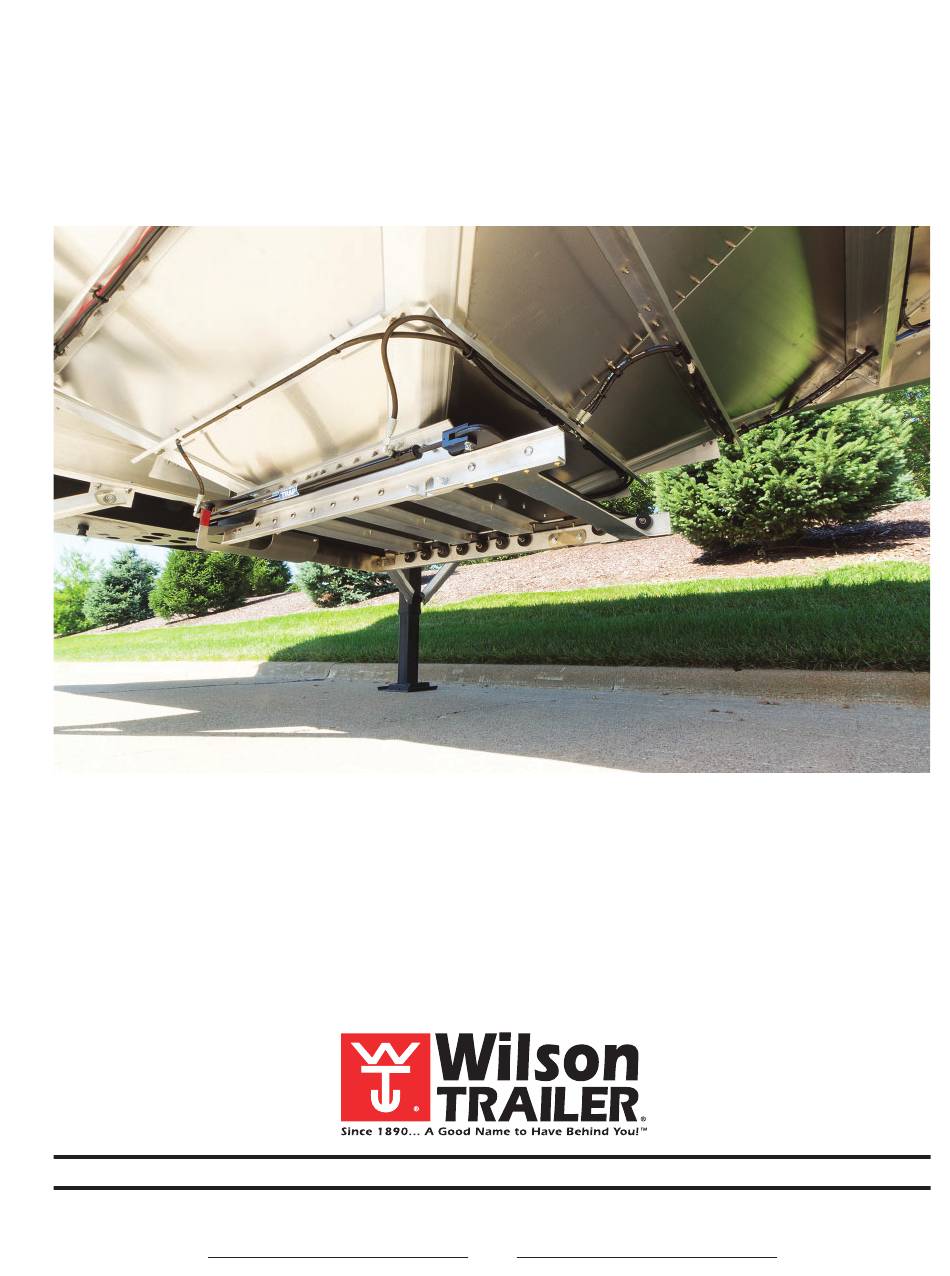

HYDRO-Trap Operator's Manual
Wilson Trailer Company
Operators Manual for
HYDRO-Trap
This manual has been prepared to help you operate your HYDRO-Trap successfully and safely. Should you have
any questions, we ask that you contact a Wilson Trailer factory representative immediately for a clear explanation.
NOTE: Wilson Trailer constantly makes product improvement to its product line. Your trap may
vary slightly from the equipment described and/or pictures in this manual.
We thank you for expressing your confidence in us through the purchase of your new Wilson HYDRO-Trap.
We want you to know that it was designed to meet your specific needs and is built for long life and low cost
operation. With regular, proper maintenance and your common sense, we are confident that it will do so.
Additional manuals and decal kits are available without charge.
MODEL NO.
SERIAL NO.
Advertisement
Table of Contents
Related Manuals for Wilson Trailer HYDRO-Trap
Summary of Contents for Wilson Trailer HYDRO-Trap
- Page 1 Operators Manual for HYDRO-Trap This manual has been prepared to help you operate your HYDRO-Trap successfully and safely. Should you have any questions, we ask that you contact a Wilson Trailer factory representative immediately for a clear explanation. NOTE: Wilson Trailer constantly makes product improvement to its product line. Your trap may vary slightly from the equipment described and/or pictures in this manual.
-
Page 2: Table Of Contents
Power Requirements ............3-1 Lubrication Requirements ..........3-1 HYDRO-Trap Operations..........3-2 HYDRO-Trap Manual Operation ......3-2 HYDRO-Trap Wireless Operation ......3-3 HYDRO-Trap Remote & Receiver Information ..3-4 GENERAL MAINTENANCE Power Requirement Overview .........4-1 Troubleshooting ............4-2 Notes about Oil ..............4-2 Potential Issues & Resolution Procedures ....4-2... -
Page 3: General Information
HYDRO-Trap Operator’s Manual General Description The Hydro Trap utilizes hydraulic cylinders to open and close the traps. The Hydraulic pump is powered by the tractor through and cab wiring kit with a master disconnect switch. The hydraulic traps are activated with the control panel located at the center of the trailer or by the optional remote. -
Page 4: Safety
HYDRO-Trap Operator’s Manual SAFETY Decals and Emblems The following section contains the decals and emblems specific for this HYDRO-Trap. AAA06891RV AAA06891RW AAA06891RZ 2-1 Safety... -
Page 5: Operation
It is required that Cab Wiring w/Disconnect switch be installed in the Tractor to Power the Hydro-Trap (WTC P/N APP04780YZ). This kit includes a Master Disconnect. It is recommended this be installed in the cab of the tractor and turned to the ON position ONLY when the traps need to be operated. -
Page 6: Hydro-Trap Operations
WTC recommends the Cab Wiring w/Disconnect switch be installed in the tractor to power the HYDRO-Trap (WTC P/N APP04780YZ). This kit includes a Master Disconnect. It is recommended that this be installed in the cab of the tractor and turned to the ON position ONLY when the traps need to be operational. -
Page 7: Hydro-Trap Wireless Operation
HYDRO-Trap Operator’s Manual OPERATION HYDRO-Trap Wireless Operation 1. Turn Master Disconnect Switch in the tractor NOTE to the “ON” position. 2. Make sure tractor is running and all connections Shurco Electric Tarp (if equipped) can to trailer are hooked up. -
Page 8: Hydro-Trap Remote & Receiver Information
HYDRO-Trap Operator’s Manual OPERATION HYDRO-Trap Remote & Receiver Information 1. When turned on the green LED on remote will flash rapidly if the remote is connected to the receiver. If the remote is not connected to the receiver then the green LED on remote will blink slowly. -
Page 9: Power Requirement Overview
Shurco 2 pin connector at the front the trailer. Tractor wiring kits are available from Wilson Trailer and are the only approved system for powering this unit. Note: Previously installed cab wiring kits for powering Shurco power tarp or trap openers use the same connector but do not supply adequate power to operate the unit when loaded. -
Page 10: Troubleshooting
Hydrex MV Artic 15 hydraulic fluid, which should give good performance from -20 to 120º F (-30 to 50º C) for operation outside this temperature range, or with other fluids, consult with Wilson Trailer Co. Service department. Potential Issues & Resolution Procedures No traps operate with remote or Locate the receiver (small black box with an antenna). - Page 11 HYDRO-Trap Operator’s Manual TROUBLESHOOTING Potential Issues & Resolution Procedures No traps operate with remote or • Check receiver ground connection. Follow the in- switches on the side of the trailer. board harness from the bottom of the receiver to where it divides into several wires. The black wire with...
- Page 12 HYDRO-Trap Operator’s Manual TROUBLESHOOTING Potential Issues & Resolution Procedures An individual trap fails to operate in Check connections at directional control valve solenoids. one or both directions with remote or (Each double stack of solenoids controls a single trap. switches on the side of the trailer.
-
Page 13: Schematics
HYDRO-Trap Operator’s Manual SCHEMATICS Schematic 12" RED (Error Code LED) 2.59" Ø0.19" 3.00" SQR 3 FT 3 FT GREEN (Signal LED) General Maintenance 4-5... -
Page 14: Consumer Information
L I M I T E D Warranty Coverage Wilson Trailer will repair or replace, at its option, any factory-installed part that is defective in material or factory workmanship under normal use, maintenance and service. Normal use excludes any operation in excess of GVWR (gross vehicle weight rating) and any use the Owner’s Manual states is not recommended. - Page 15 (45) days thereafter. Wilson Trailer has the right to inspect the claimed defect and determine whether the part is covered by this warranty. If you cannot get warranty service, or you are dissatisfied with the service or with a warranty decision, contact Technical Service and Claims Manager, 1-800-798-2002, Wilson Trailer, P.O.
-
Page 16: Limitations And Disclaimers
All warranty work must preformed at a repair shop approved in advance by Wilson Trailer Company. Limitations and Disclaimers Wilson Trailer disclaims any responsibility for any loss of time or use of the parts or trailers in which the parts are installed, transportation, cargo loss, or other incidental or consequential damage. Any implied warranties, including the implied warranty of merchantability and fitness for a particular purpose, are limited to the duration of this written warranty. -
Page 17: Index
Decals and Emblems ............2-1 Power Requirement Overview ........4-1 Description, General ............1-1 Disclaimers, Limitations and .........5-3 Emblems, Decals and .............2-1 Remote & Receiver Information, HYDRO-Trap ..3-4 Requirement Overview, Power ........4-1 Requirements, Lubrication ..........3-1 Requirements, Power ............3-1 General Description ............1-1 Resolution Procedures, Potential Issues ....4-2 Schematics ................4-5... - Page 20 HYDRO-Trap Operator’s Manual WILSON TRAILER COMPANY 4400 So. Lewis Boulevard Sioux City, Iowa 51106 Telephone 712-252-6500 800-798-2002 www.wilsontrailer.com E-Mail: sales@wilsontrailer.com HYDROTrapOM1.001 Printed February 2019...
