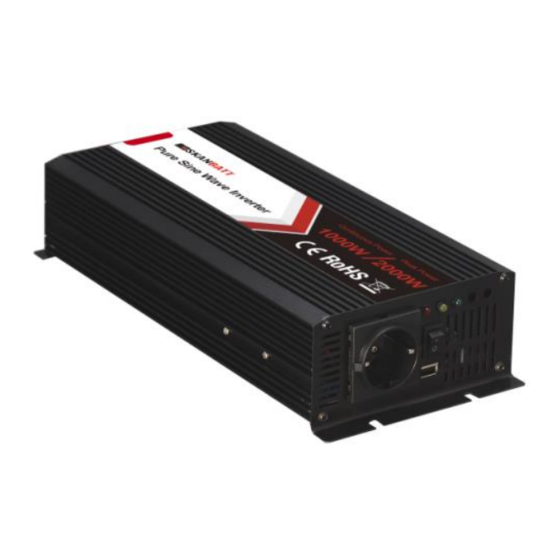

POWER INVERTER
User manual
1. Low voltage input model adopt original imported IR MOS tube. The current is 5.5 times of rated current.
2. Its low voltage input connection adopt high frequency low resistivity electrolytic capacitor. However ordinary capacitor
will explode if the temperature become very high.
3. Every transformer has independent fuse protection. If there is a MOS tube break down, then the fuse will break fast. So
that will not effect other MOS tube to break.
4. All the protection signal adopt monolithic processing. Circuit is simple and stable.
5. Input and output are isolated to ensure the operation stability.
6. Output circuit adopt convertible circuit. The SPWM signal produced by Single Chip Microcomputer drive the A3120
optical coupler. Then the optical coupler isolated drive the output through IGBT tube. Adopt negative pressure to cut off
IGBT to eliminate Miller effect, so the output is more steady.
7. The whole design adopt patch technology. The circuit is simple and steady.
8. Allow ON/OFF button controlled by remote control switch;
9. LED indicate and alarm notice the protection function start.
Congratulations and thank you for purchasing ours Power Inverter.
Carefully read, understand and comply with all instructions before use.
Edition:19/13
Revised:19/08
Advertisement
Table of Contents
Summary of Contents for SKANBATT P-300
- Page 1 POWER INVERTER User manual 1. Low voltage input model adopt original imported IR MOS tube. The current is 5.5 times of rated current. 2. Its low voltage input connection adopt high frequency low resistivity electrolytic capacitor. However ordinary capacitor will explode if the temperature become very high. 3.
- Page 2 1. Introduction CONTENTS Thank you for purchasing the Power Inverter. The inverter is a compact and highly portable power inverter, the leader in the field of high frequency inverter design. From the 12V/24V/36V/48V DC outlet in your vehicle or boat, or directly from a dedicated 12V/24V/36V/48V DC battery, the inverter will efficiently and reliably power a wide Introduction-------------------------------------------------------------- variety of household AC products, such as TVs, computers, VCRs, and many more.
- Page 3 5. Installation Guidelines Selecting a suitable location For safe and optimum performance, Install the inverter in a location that is..● Dry. Do not expose to water drip or spray. ● Cool. Better to be used in ambient temperatures between 32℉(0℃) and 104℉(40℃). Keep away from furnace heating vents or other heat producing equipment.
- Page 4 ● Adjust the orientation of the inverter, television, antenna and cables. Maximize TV signal strength by using a Although the inverter can supply momentary surge power, occasionally some products rated less than the rated continuous output power may exceed its surge capabilities and trigger its safety overload shut down feature. If better antenna and use shielded antenna cable where possible.
- Page 5 ✔ ✔ Dishwasher - hot dry 1450W Specifications subject to change without notice ✔ Trash compactor 1500W ✔ Item Efficiency Large Hob 2000W ≤3% P-300 300W 600W <0.4A(12V),<0.2A(24V) ,<0.1A(48V) Home Office Power 150W 300W 600W 1000W 1500W 2000W ≤3% ✔...
- Page 6 ✔ ✔ ✔ ✔ Makita 4 Inch disc grinder 529W ✔ ✔ ✔ ✔ Jepson 1/2 Inch reversible drill 620W ✔ ✔ ✔ ✔ Dewalt H.D. reciprocating saw 720W ✔ ✔ Grinder, l/2hp 1080W ✔ ✔ McCulloch 14 Inch chain saw 1200W ✔...
