Summary of Contents for TUFFBounce 12FT

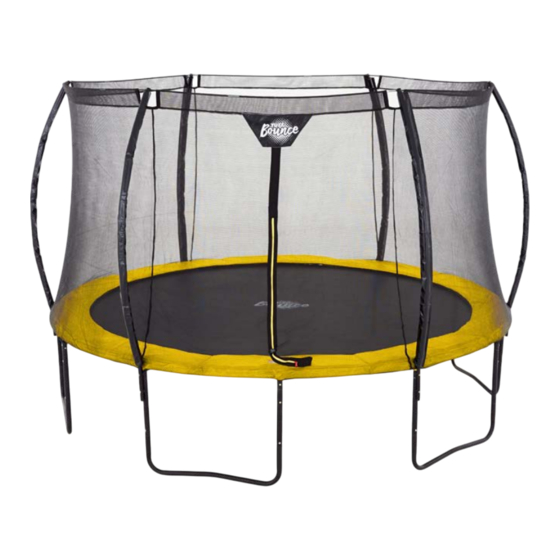

- Page 1 12FT TRAMPOLINE ASSEMBLY MANUAL VISIT: tuffbounce.com.au VERSION 2 PARTS OR GENERAL ENQUIRIES: info@tuffbounce.com.au...
-
Page 3: Safety Information
SAFETY INFORMATION MUST READ BEFORE USE THE FOLLOWING SAFETY STEPS MUST BE APPLIED WHEN USING THIS PRODUCT. The following steps must be following when using this product. IMPROPER USE COULD LEAD TO SERIOUS INJURY OR DEATH. Two people are required in order to The trampoline must always maintain assemble this product. - Page 4 TRAMPOLINE LOCATION REQUIREMENT Correct installation trampoline location requirements must be observed at all times.
- Page 5 TRAMPOLINE PART LIST PART IMAGE PART IMAGE Safety Net Pole Spring Tool Clamp (Male & 6 Pairs Female) PVC Pole Spring Sleeve Upper Pole Bounce Mat (with foam) Lower Pole Spring Cover (with foam) Safety Net Nylon Cord U-Shaped Fibreglass Spanner Extension Bolt/Nut for...
- Page 6 Locate the U-Shaped leg bases to form the Connect the legs and their extensions together. underside of your trampoline. Securing process shown in step 3. Thread the leg Bolts through the connected leg Slide the T-Connector Sleeves onto each Frame holes.
- Page 7 Attach your Legs into T-Connector Sleeves. Do Once assembled your trampoline base is ready not secure with screws at this stage. to stand on its own. The Lower Poles form the support for the Safety This diagram shows the parts required for this Net.
- Page 8 Place your Bounce Mat on the ground in the On each side of the T-Connector Sleeves, attach middle of the trampoline frame. Springs from the Bounce Mat buckles to the Frame Tube holes. Use the Spring Tool to extend and hook each Spring. It should look like this.
- Page 9 Firmly secure the Spring Cover ties to the Frame Evenly weave the black Nylon Cord between the Tube. These steps are paramount for user safety Spring Cover mesh and the Bounce Mat buckles so please ensure the knots are tight. in a zig-zag fashion.
- Page 10 Place the Safety Net on top of your Bounce Mat Connect male and female parts of a Safety inside the poles, ready to be connected to the Net Pole Clamp. Slot the Pole Clamp onto the top of each Safety Net Upper Pole. Fiberglass Rod and guide onto the top of the Upper Pole click.
- Page 11 If you think anything is missing from your package, has been damaged in transit or you have any other issue, please contact us at: info@tuffbounce.com.au tuffbounce.com.au...
