Summary of Contents for Espi Voltar 2.0
-

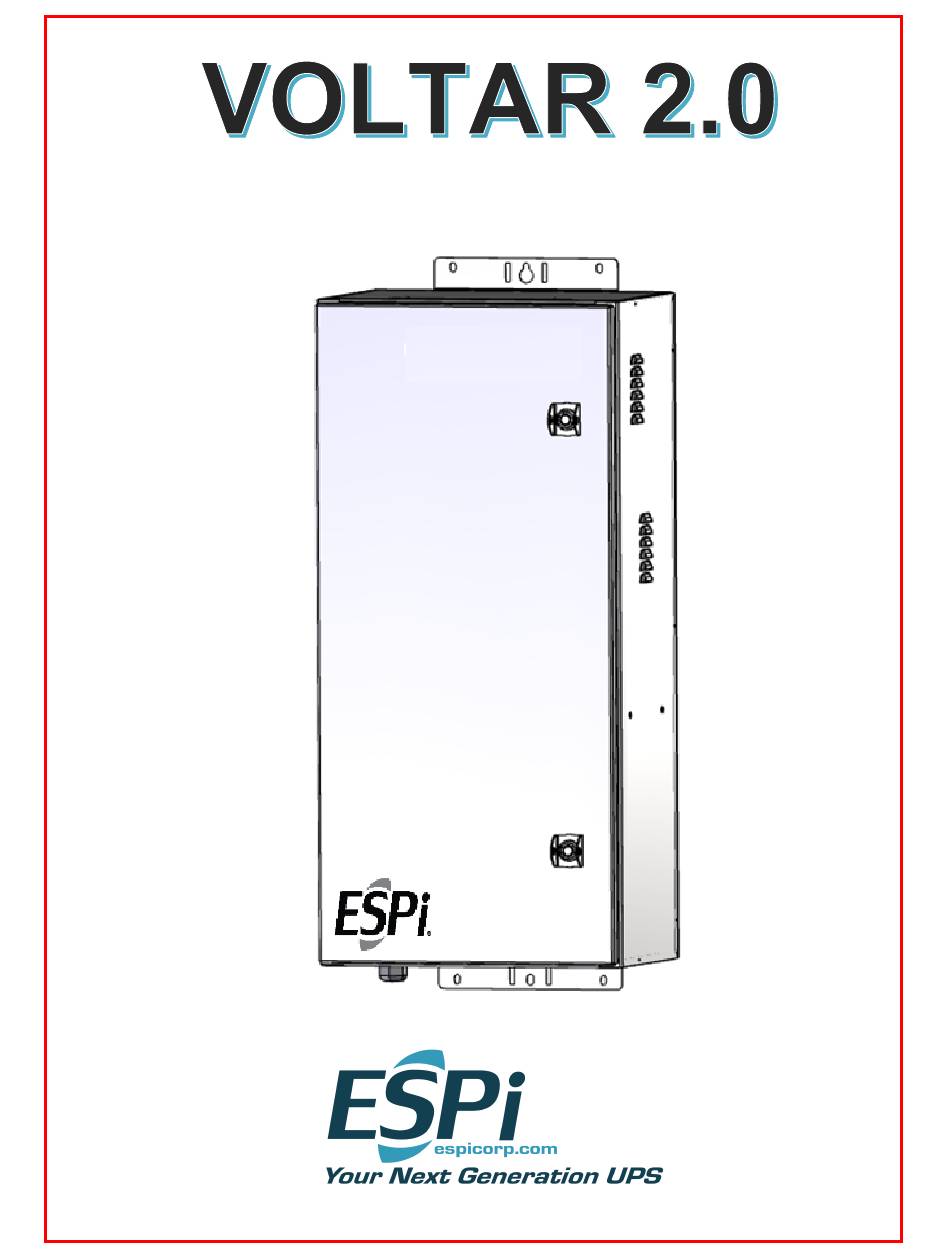

Page 1: Preface
USER’S MANUAL ™... -
Page 2: Table Of Contents
ESPi VOLTAR 2.0 SOLAR UPS TABLE OF CONTENTS PREFACE……………………………………………………………………………………….1 TABLE OF CONTENTS……………………………………………………………………….2 RELEASES TO THIS TECHNICAL DOCUMENTATION………………………………….3 PUBLICATION………………………………………………………………………………….4 USING THIS TECHNICAL PRACTICE………………………………………………………4 INSPECTING SHIPMENT……………………………………………………………………..4 PRODUCT SPECIFICATIONS……………………………………………………………...5-6 SAFETY PRECAUTIONS……………………………………………………………………...7 QUARTER-TURN LOCKING DOOR LATCHES……………………………………………8 ENCLOSURE OVERVIEW…………………………………………………………………….9 WIRING INSTRUCTIONS………………………………………………………………...10-11 UPS FACEPLATE…………………………………………………………………………12-13 LCD SCREEN OPERATION……………………………………………………………..14-17 ENCLOSURE MEASUREMENTS……………………………………………………….18-19... -
Page 3: Releases To This Technical Documentation
ESPi VOLTAR 2.0 SOLAR UPS TECHNICAL DOCUMENTATION Thank you for purchasing the ESPi VOLTAR 2.0 Solar UPS. At ESPi, we are proud of the quality products we innovate and manufacture and look forward to serving you as our customer. Please review all sections of this document before the installation and operation of the VOLTAR 2.0. -
Page 4: Publication
USING THIS TECHNICAL PRACTICE Before using this document, please review the statements below. 1. The differences in models of the VOLTAR 2.0 family of solar UPS products are defined by the attributes within the model number. Definitions of the attributes are described below. -
Page 5: Product Specifications
ESPi VOLTAR 2.0 SOLAR UPS PRODUCT SPECIFICATIONS The VOLTAR 2.0 Solar UPS is designed to provide instant, continuous power for a wide range of applications. For additional information and specifications, reference the product overview information listed below. Enclosure • Dimensions: 35” tall x 16” wide x 11.5” deep •... - Page 6 ESPi VOLTAR 2.0 SOLAR UPS Solar Panel • Mono-Crystalline . • Bi-Facial Panel • 40.6 Volts • 370 Watts • 77.48" x 38.97" • 35-Year Limited Warranty Output 12V, 24V, 36V, 48V, Other (Based on model #) • 150 Watts Max •...
-
Page 7: Safety Precautions
ESPi VOLTAR 2.0 SOLAR UPS SAFETY PRECAUTIONS • USE COMMON SENSE! • Only qualified personnel should service this equipment • The battery contains hazardous currents and may present a burn hazard if damaged, shorted, or installed improperly. • The following precautions should be followed to insure your safety o Remove watches, rings, or other metallic objects. -
Page 8: Quarter-Turn Locking Door Latches
ESPi VOLTAR 2.0 SOLAR UPS QUARTER TURN LOCKING DOOR LATCHES The cabinet door is equipped with (2) quarter-turn pad-lockable latches. The latch is secured by turning the 7/16" hex security bolt one quarter turn clockwise until the stop is reached. A convenient security locking hasp is factory installed to allow for a standard Master lock padlock (or equivalent) to be installed. -
Page 9: Enclosure Overview
ESPi VOLTAR 2.0 SOLAR UPS ENCLOSURE OVERVIEW Figure B – Front View of Enclosure Door is not shown. Image is for reference only. --------------------------------------------------------------------------------------------------------------------- ------ ____________________________________________________________________________________ Technical Specifications... -
Page 10: Wiring Instructions
ESPi VOLTAR 2.0 SOLAR UPS WIRING INSTRUCTIONS Figure C – Wiring Instructions To avoid causing electrical damage to the VOLTAR 2.0 circuit board, please use the following steps when wiring. Step 1: Connect all wires from the VOLTAR 2.0 Output terminal to the load you are powering. - Page 11 ESPi VOLTAR 2.0 SOLAR UPS (Note: 20 feet of photovoltaic wire has been provided to you. If you need more than 20’ of wire it may be sourced locally or contact ESPi for more information.) Step 3: Attach the red (Positive) and black (Negative) battery leads to the 12-volt battery.
-
Page 12: Ups Faceplate
ESPi VOLTAR 2.0 SOLAR UPS Figure D – UPS Faceplate LEFT CENTER RIGHT LED GAUGE - LEFT 1. Input 2 Reversed: Polarity reversed on Input 2 2. Input 1 Reversed: Polarity reversed on Input 1 3. Batt. Reversed: Polarity reversed on battery 4. - Page 13 5. Load Power: On if load power is powered on 6. BTooth Active: Bluetooth on and in operation 7. Ch. Stage 1: Constant Current 8. Ch. Stage 2: Constant Voltage 9. Ch. Stage 3: Float Voltage 10. Tandem Active: VOLTAR 2.0 units paired and in operation ____________________________________________________________________________________ Technical Specifications...
-
Page 14: Lcd Screen Operation
Circuit board temp °C Charge amps to the battery If you are using a solar panel to power the VOLTAR 2.0 unit, it must be connected to the Input 1 terminal. Input 2 is configured for a DC power supply (Generator Kit) only. - Page 15 The VOLTAR 2.0 unit also employs temperature compensated charging. The temperature of the battery is displayed on the upper right-hand corner of the screen. Note that the temperature displayed is in degrees Celsius.
- Page 16 The LOAD OUTPUT screen displays the voltage, amperage and watts going to the equipment being powered by the VOLTAR 2.0. Note that the VOLTAR 2.0 has a max output of 150 watts, but this is only for short durations during startup. Once the load has gone through a reboot or startup phase, typically the power consumed by most equipment will only vary slightly.
- Page 17 ESPi VOLTAR 2.0 SOLAR UPS The VOLTAR 2.0 is equipped with a 4-stage charger. Each stage is as follows: Stage 0: Trickle charging Stage 1: Constant Current Stage 2: Constant Voltage Stage 3: Float Voltage Power Source for charging the battery.
-
Page 18: Enclosure Measurements
ESPi VOLTAR 2.0 SOLAR UPS ENCLOSURE MEASUREMENTS Figure E – Enclosure Overview ____________________________________________________________________________________ Technical Specifications... - Page 19 ESPi VOLTAR 2.0 SOLAR UPS Figure F – Enclosure Overall Dimensions ____________________________________________________________________________________ Technical Specifications...
-
Page 20: Installation Procedure
Do not allow unqualified personnel to handle, install, or operate the equipment. Install this unit in a location away from gas, fire, and potential sparks. The VOLTAR 2.0 series cabinet is shipped ready for equipment and battery installation. The following pages will provide information on mounting, grounding procedure, alarm connection guide, solar panel installation and more. -
Page 21: Clearance Requirements
ESPi VOLTAR 2.0 SOLAR UPS CLEARANCE REQUIREMENTS When selecting a location to mount the cabinet, ensure that proper clearance is available to allow adequate ventilation and to allow the cabinet door to fully open. See figure below for top view of cabinet footprint. -
Page 22: Cabinet Grounding Information
ESPi VOLTAR 2.0 SOLAR UPS CABINET GROUNDING INFORMATION Bonding and grounding should be done in accordance with the operating telephone company’s standard procedures and comply with local electrical codes. GROUND WIRE The ground wire protects the electronics from voltage surges. A #6 ground wire must be properly grounded to provide lightning surge protection for the cabinet. -
Page 23: Grounding Diagram & Procedure
ESPi VOLTAR 2.0 SOLAR UPS GROUNDING DIAGRAM AND PROCEDURE Grounding Procedure: 1. Drive the ground rods into the ground near the cabinet location. 2. Use a Megger-type ohmmeter to measure the resistance between cabinet ground and the ground rods. The resistance must be 25 ohms or less. -
Page 24: Alarm Connectors
ESPi VOLTAR 2.0 SOLAR UPS ALARM CONNECTORS The alarm connections are placed on an RJ-45 cable for easy termination. Refer to Figure J (shown below) for the pinout information. PIN1 – (White/Green) PIN2 – (Green) PIN3 – (Orange/White) Battery Missing (Battery is not physically connected) PIN4 –... -
Page 25: Determining Proper Solar Angle
ESPi VOLTAR 2.0 SOLAR UPS How to determine the proper solar panel angle Several apps are available for your phone to help calculate the optimum tilt for your panel as well as Inclinometers to verify the correct panel angle has been set. Without an app, the information below will provide a method to calculate this for yourself. -
Page 26: Solar Panel Bracket Assembly- Pole Mount
ESPi VOLTAR 2.0 SOLAR UPS SOLAR PANEL BRACKET ASSEMBLY- POLE MOUNT ____________________________________________________________________________________ Technical Specifications... - Page 27 ESPi VOLTAR 2.0 SOLAR UPS ____________________________________________________________________________________ Technical Specifications...
- Page 28 ESPi VOLTAR 2.0 SOLAR UPS ____________________________________________________________________________________ Technical Specifications...
- Page 29 ESPi VOLTAR 2.0 SOLAR UPS ____________________________________________________________________________________ Technical Specifications...
-
Page 30: Technical Support
ESPi VOLTAR 2.0 SOLAR UPS APPENDIX A TECHNICAL SUPPORT Technical assistance is available 8 AM to 5 PM Central Time. Contact ESPi at: Telephone 877-799-3774 (toll free) ORDERING PROCEDURE You may place orders by telephone or email: Telephone: 877-799-3774 (Toll Free) Email: sales@espicorp.com... -
Page 31: Corporate Policy
RETURN FOR REPAIR POLICY AND PROCEDURE CORPORATE POLICY ESPi warrants this product to be free of defects and to be fully functional for a warranty period beginning from the date of original shipment, given correct customer installation and regular maintenance. ESPi will repair or replace any unit without cost during its warranty period if the unit is found to be defective for any other reason other than abuse or incorrect use or incorrect installation. -
Page 32: Espi Standard Terms And Conditions
ALL QUOTATIONS AND SALES ARE SUBJECT TO THE FOLLOWING TERMS AND CONDITIONS AS WELL AS THOSE CONTAINED ON THE ORIGINAL QUOTATION. Warranty: ESPi LLC is very proud of the product we have created. Should you need support please call 877-799-3774 or visit our website at espicorp.com.
