STETSBAR T-Style Series Fitting Instructions

Hide thumbs
1
2

Advertisement

Table of Contents

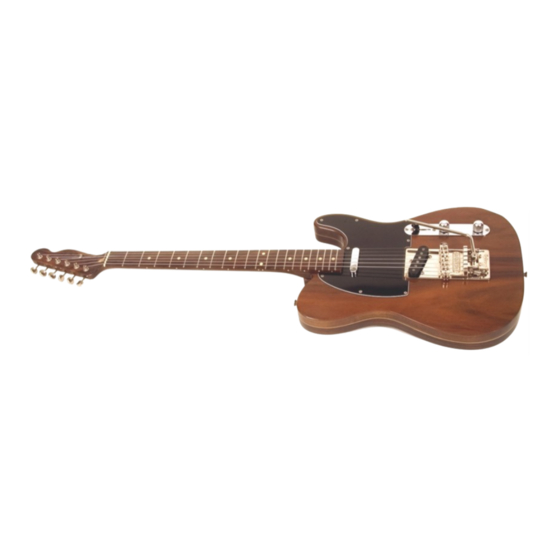

T-Style Guitars
Fitting Instructions
We work hard to provide the very best professional product for the demanding artist. If you have questions or concerns call
the 800 number and we will be happy to assist you. We cannot take responsibility for problems or damage occurring
through inexperienced installation. Any alterations or modifications to the STETSBAR voids manufacturers warranty and
invalidates returns. If you are unsure of your ability to fit the unit we will be happy to recommend or work with a qualified
FIRST STEPS - Check that you have 1 set of Allen Keys, 4 flathead screws and 1 neck shim
and please read the warranty notes at the end of this document before commencing.
Make a secure setting on which to work on the guitar. The STETSBAR requires little if any drilling tools and will install
quite rapidly. HINT—If you have never removed the neck of a guitar or set intonation of your guitar in the past, you may
wish to get some experienced assistance before you begin.
Mounting
Plate
Bridge
(shown removed)
Bridge Adjustment
Screw

PREPARATION

Prepare the guitar by taking off the strings and unscrew the neck screws and remove the neck. Next, remove the
"ashtray bridge" and un-mount the bridge pickup from the ashtray.
T- Style Fit Instructions
guitar technician or Luthier to resolve your installation issues.

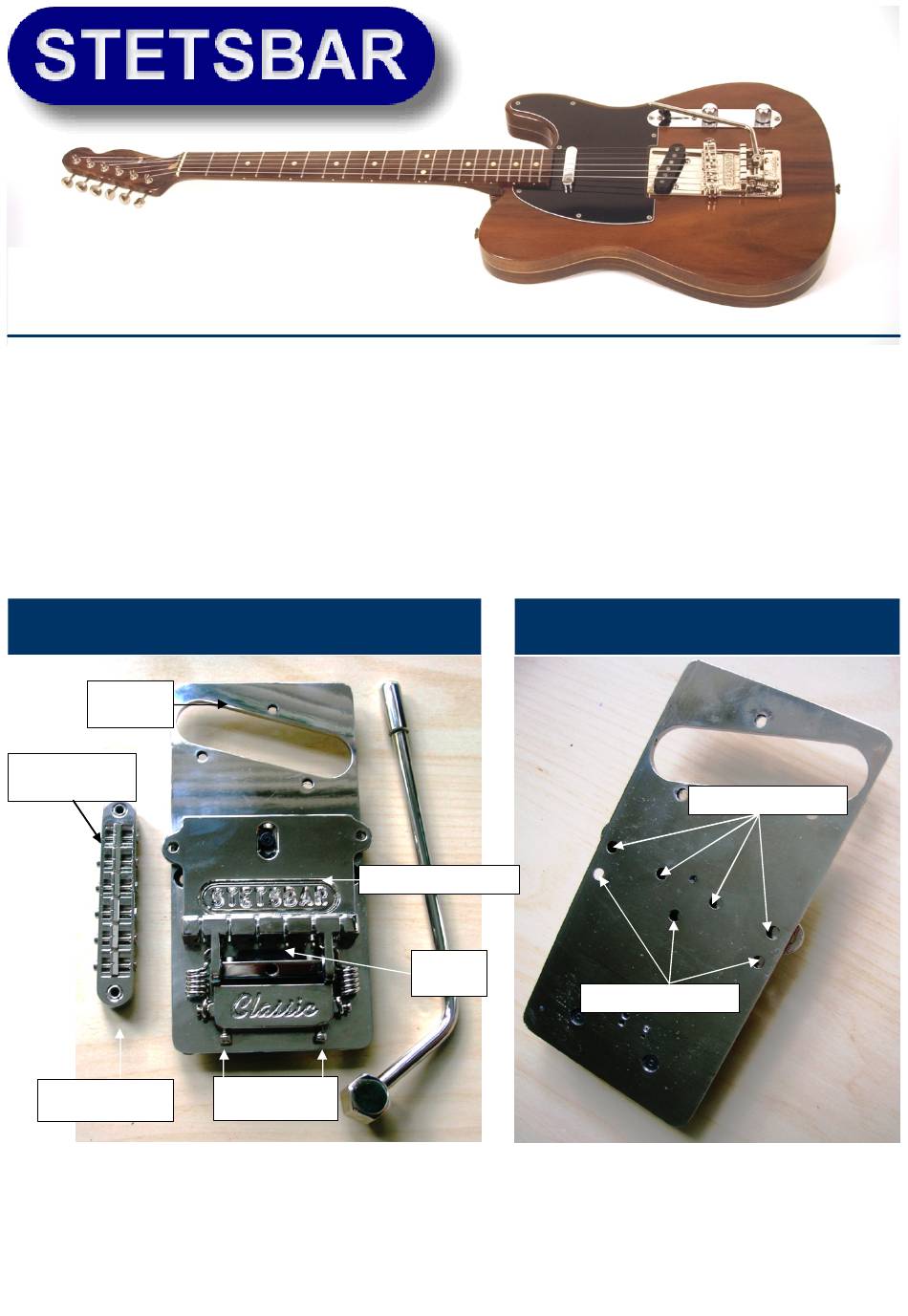

Top View
Tracking Adjust-
ment Screws
Bridge Plate Assembly
String
Anchor
Bottom View
Four Hole mounting
Three Hole mounting
Page 1
