USER INSTRUCTIONS
ODE Seating System
Timoteos

Advertisement

loading
Need help?

Need help?

Do you have a question about the Timoteos ODE and is the answer not in the manual?

Questions and answers

Summary of Contents for Astris PME Timoteos ODE

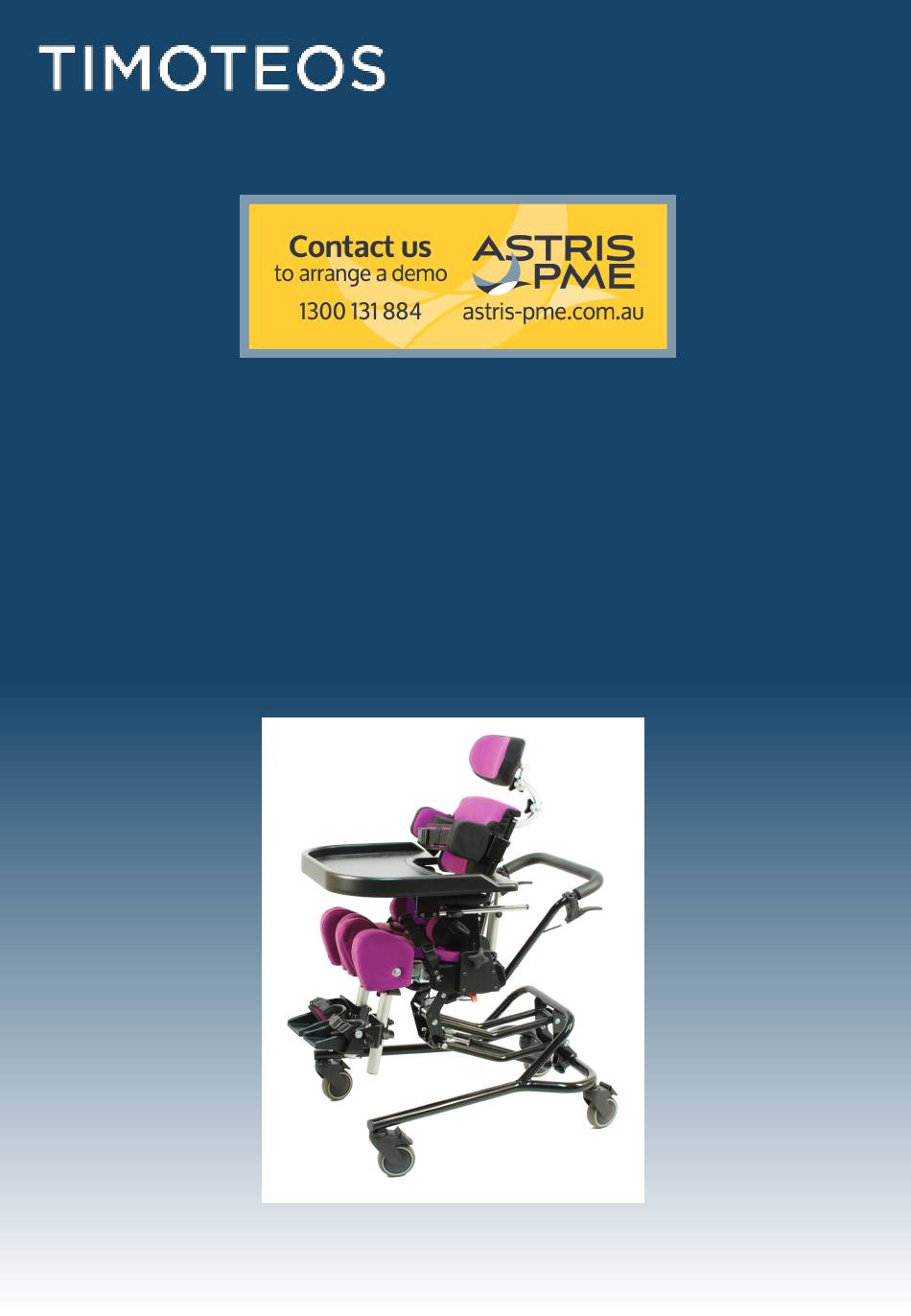

  • Page 1 USER INSTRUCTIONS ODE Seating System Timoteos...

  • Page 2: Intended Use

    1. DESCRIPTION 1.1. Ode is a multi-adjustable and versatile seating system for children,, that helps achieve a comfortable seating position. 1.2. The back rest is dynamic, so it flexes along with spastic extension, reducing spasticity. The dynamic feature is adjustable and it can be locked. 1.3.

  • Page 3: Base Functions

    Base functions Indoor Base, Outdoor Base HI-LO Function, Indoor Base 1) Use the right handle to operate High-Low function in manual Indoor Base. 2) Use the remote control buttons to operate High-Low function in powered Indoor Base ▪ Outdoor base does not have High-Low function available TILT-IN-SPACE Function, Indoor and Outdoor Base 1) Use the left handle to operate Tilt-in-Space function in both Indoor and Outdoor Base.
  • Page 4 Growth adjusting SEAT WIDTH HIP 1) Loosen the two screws behind the seat to move the Hip Guides sideways. 2) Measure the width of user hip and adjust the hip guides accordingly. SEAT DEPTH THIGH LENGTH 1) Loosen the plastic star screw under the seat 2) Measure the lenght of user thigh and adjust the depth of seat accordingly by adjusting leg piece back ’n forth.
  • Page 5 Growth adjusting ARM REST (Seat Height) 1) Loosen the plastic star screw to adjust the height of arm rest up ’n down BACK REST AND LUMBAR SUPPORT HEIGHT (Seat Height) 1) Loosen the screw to adjust height of the back rest up ’n down.
  • Page 6 Posture Adjusting Lower Limbs POSTURE OF LOWER LIMBS 1) Loosen the plastic star screw under the seat. There is separate screws on both left and right side of the seat. ▪ This plastic star screw controls the movement of thighs and legs in sideways, angle and back ’n forth.
  • Page 7 Posture Adjusting Lower Limbs KNEE FLEXION 1) Loosen the screw on the side of knee pad. 2) Adjust the angle of knee by moving leg piece back ’n forth. HIP FLEXION 1) Loosen the screw on the side of seat. 2) Adjust the hip angle by moving the thigh piece up ’n down.
  • Page 8 Posture Adjusting Lower Limbs LEG LENGHT 1) Loosen the thumb screw behing the foot rest bars to adjust foot rest (sandal) height up ’n down. 2) Adjust the foot rest up ’n down to match user leg lenght or to better match the user seating posture.
  • Page 9 Posture Adjusting Head, Arms, Tray HEAD REST 1) Loosen the 3 plastic star screws to adjust the head rest into desired position. 2) Remove the soft plastic cover off the metal tip of head rest. Loose the 2 screw to rotate the head rest into desired position.
  • Page 10 Posture Adjusting Back Rest reckline, Lateral Supports LATERAL SUPPORTS 1) Loosen the thumb screws behing the back rest (4 in total). 2) Adjust the lateral supports to optimal position, in height, width and rotation, to support user seating posture. BACK REST RECKLINE 1) Loosen the screw behind the back rest.
  • Page 11 Posture Adjusting Back Rest, Lumbar Support BACK REST AND LUMBAR SUPPORT HEIGHT 1) Loosen the screw to adjust height of the back rest up ’n down. 2) Loosen the screw to adjust height of the lumbar support up ’n down. ▪...
  • Page 12 Dynamic Back Rest Adjusting DYNAMIC BACK REST ODE Seating System is equiped with lockable and tensions adjustable dynamic back as standard. Dynamic function is based on metal spring which has a long life cycle. Design reduces the need of changing the spring and maintains the tension stable through out the spring life cycle.
  • Page 13 Fastening the belts BELT TYPES 1) Buckled strap in Flexible Swing-Away Lateral Supports. 2) Velcro enhanced buckle straps with cover in Standard Lateral Supports and Swing-Away Lateral Supports. 3) Buckled strap with cover in Foot Rest (Sandals) 1) Pre-adjust the lenght of straps. 2) Close the Flexible Swing-Away Laterals 3) Fasten the buckle and tighten if needed by pulling the strap outwards.
  • Page 14 ODE Dimensions Size 1 Size 2 CHAIR DIMENSIONS min. max. min. max. Seat Depth 21 cm 31 cm 26 cm 37 cm Seat Width 19 cm 28 cm 27 cm 37 cm Lower Leg Lenght 19 cm 29 cm 28 cm 37 cm Knee Flexion Angle -10°...
