Summary of Contents for Delsy MG Digitalarcmeter

  • Page 2 MG Digitalarcmeter version 12/7/2016 SUMMARY: INTRODUCTION: PAGE 1 MAIN PARTS: PAGE 2 MENU: PAGE 3 MEASURE THE PLATES: PAGE 4 MEASURING PRECISION: PAGE 4 POSITION SENSORS: PAGE 4 POWER SUPPLY: PAGE 5 CALIBRATION: PAGE 5 WIFI MODULE: (Optional) PAGE 6-7...

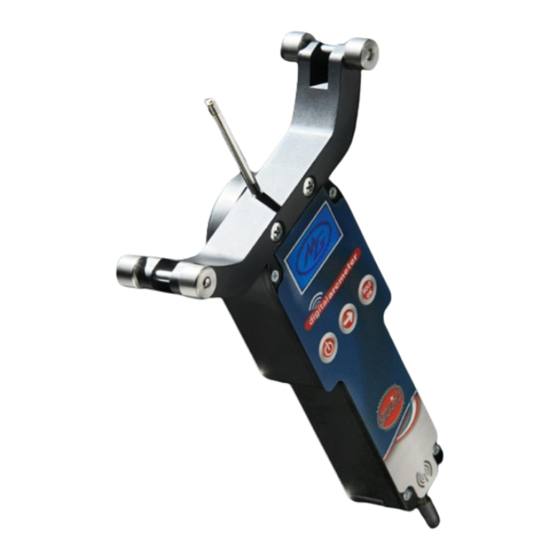

  • Page 3 MG Digitalarcmeter version 12/7/2016 MAIN PARTS: 1) BUTTON 1: On/Off. 2) BUTTON 2: Menu scrolling. Provides access to the various sections contained in the menu. 3) BUTTON 3: Hold/OK. Retains the data acquired from the instrument. It must be pressed again to allow a new measurement.
  • Page 4 MG Digitalarcmeter version 12/7/2016 MENU: To scroll through the menu press the button Menu scrolling (BUTTON 2). To change the option in the menu press the button Hold/OK (BUTTON 3). The symbol of the selected mode blinks on the screen.
  • Page 5 MG Digitalarcmeter version 12/7/2016 MEASURE THE PLATES: Place the instrument on the plate/element. Make sure both metal edge of the arm are in contact with the workpiece. Once this is done, the measure of the desired magnitude is displayed on the screen.
  • Page 6 MG Digitalarcmeter version 12/7/2016 POWER SUPPLY: _Battery: Use a battery of 1.5V AA. The WIFI version (optional) uses a rechargeable battery 1.2V. It ensures the additional energy required for data transmission with the WIFI antenna. The battery charger is included in the box of the WIFI version.
  • Page 7 MG Digitalarcmeter version 12/7/2016 WIFI MODULE: (Optional) The addition of WIFI module allows to send the measurements acquired from Digitalarcmeter directly to the Touch Command EVO, avoiding to put manually the data. _ Additional parts: 1) Antenna WIFI receiving del of the Touch Command EVO.
  • Page 8 MG Digitalarcmeter version 12/7/2016 _ The Touch Command EVO will recognize the connection and begins to blink the antenna WIFI symbol: _ When the connection is active, simply press Hold/OK (BUTTON 3) to transmitted the data to the control: You can repeat the process as many times as you want. Every time you press the button Hold/OK (BUTTON 3) is sent a new value.
