Summary of Contents for Wahsega Outdoor Pedestal

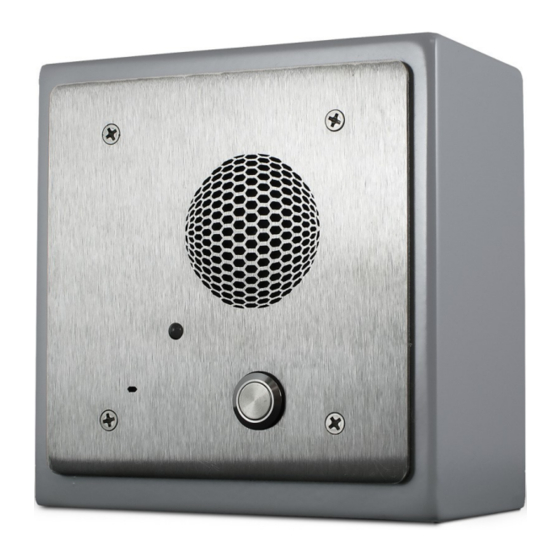

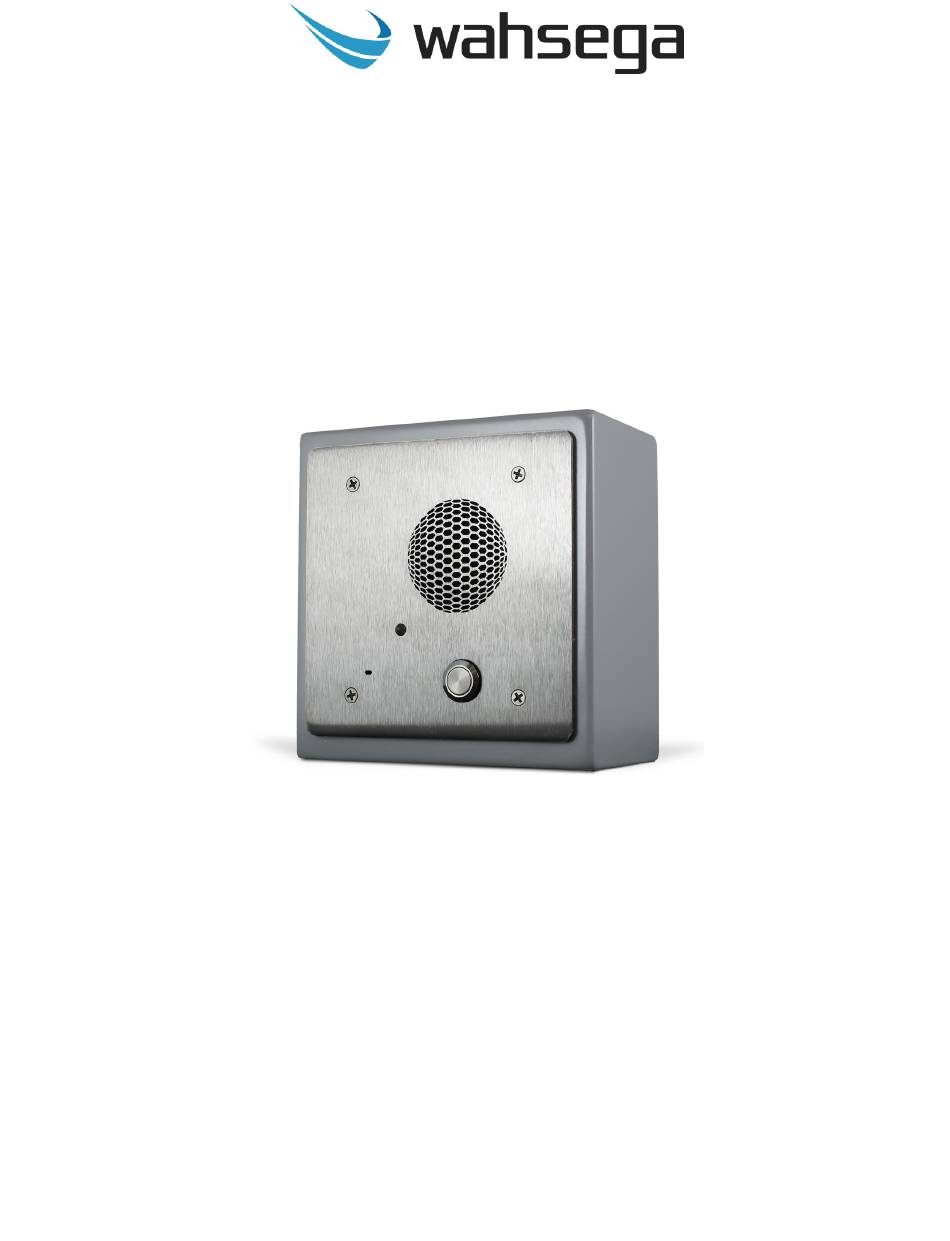

- Page 1 Outdoor Pedestal IP Intercom Installer’s Guide This step-by-step guide will help you install your Wahsega Outdoor Pedestal IP Intercom.
-
Page 2: What's In The Box
What’s in the Box WL-BKMT-HOOD-OV Outdoor Pedestal IP Intercom Installation Guide Page 2... -
Page 3: What You Will Need
T-15 Torx pin screwdriver (optional for security screws) For wall mount installations: ½” conduit ½” set screw style connector ½” conduit nut ½” conduit sealing ring (4) ¼”-20 concrete or drywall anchors Outdoor Pedestal IP Intercom Installation Guide Page 3... - Page 4 Request to Exit and Door Latch Wiring The Outdoor Pedestal IP Intercom provides an integrated relay with connections for controlling magnetic door latches, request to exit (REX) functionality for buttons and/or exit motion sensors as well as door closed status monitor.
- Page 5 Its contacts are rated for 30VDC or 270VAC at 3A. Pin 1 is a Normally Closed (NC) dry contact closure. Pin 2 is Common. Pin 3 is a Normally Open (NO) dry contact closure. Outdoor Pedestal IP Intercom Installation Guide Page 5...
- Page 6 Door status monitor has a detection de-bounce period of 300 milliseconds minimum. Otherwise, detection is not guaranteed. NOTE 2: The REX has a detection de-bounce period of 130 milliseconds minimum. Otherwise, detection is not guaranteed. Outdoor Pedestal IP Intercom Installation Guide Page 6...
- Page 7 The REX input can be wired in parallel with a REX button and an exit motion sensor. Both REX and door status inputs go to Normally Open (NO) connections on corresponding devices. Outdoor Pedestal IP Intercom Installation Guide Page 7...
-
Page 8: Wall Mount Installation
Wall Mount Installation *Refer to pages 2-3 for a list of included hardware what you will need properly install your Wahsega Outdoor Pedestal IP Intercom. Outdoor Pedestal IP Intercom Installation Guide Page 8... - Page 9 RTV sealant before threading connectors. Following instructions on pages 4-9, connect low voltage wiring to terminal blocks for door access, request to exit and door status. 4. Connect Ethernet cable in the orientation shown in Image Outdoor Pedestal IP Intercom Installation Guide Page 9...
- Page 10 6. Attach the intercom’s faceplate to the back box using either the Phillips head screws or the security screws provided. Faceplate installation using optional weather hood Faceplate installation without optional weather hood Outdoor Pedestal IP Intercom Installation Guide Page 10...
- Page 11 Outdoor Pedestal IP Intercom Installation Guide Page 11...
-
Page 12: Pedestal Mount Installation
Pedestal Mount Installation *Refer to pages 2-3 for list of included hardware equipment needed properly install your Wahsega intercom. Outdoor Pedestal IP Intercom Installation Guide Page 12... - Page 13 RTV sealant onto both sides of the interior washers and around the perimeter of the pedestal opening, as shown below. Following instructions on pages 4-9, connect low voltage wiring to terminal blocks for door access, request to exit and door status. Outdoor Pedestal IP Intercom Installation Guide Page 13...
- Page 14 6. Attach the intercom’s faceplate to the back box using either the Phillips head screws or the security screws provided. Faceplate installation using optional weather hood Faceplate installation without optional weather hood Outdoor Pedestal IP Intercom Installation Guide Page 14...
- Page 15 ICES-003 du Canada. This product is designed & manufactured in the US. ROHS Compliant Temperature Rating -40°C to +60°C. The Outdoor Pedestal IP Intercom is designed for an outdoor IP65 rating. Outdoor Pedestal IP Intercom Installation Guide Page 15...
- Page 16 Images not to scale. Larger versions available at Wahsega.com. Outdoor Pedestal IP Intercom Installation Guide Page 16...
- Page 17 Wall Installation Mounting Template This image is to scale. Use to find accurate bolt placement. Outdoor Pedestal IP Intercom Installation Guide Page 17...
- Page 18 Outdoor Pedestal IP Intercom WL-IC-BKMT-CAR-OV-R WL-IC-BKMT-CAR-OVNB-R WL-IC-BKMT-CAR-OV2B-R WL-IC-BKMT-SIP-OV-R WL-IC-BKMT-SIP-OVNB-R WL-IC-BKMT-SIP-OV2B-R Optional Weather Hood: WL-BKMT-HOOD-OV Outdoor Pedestal IP Intercom Installation Guide Page 18...
