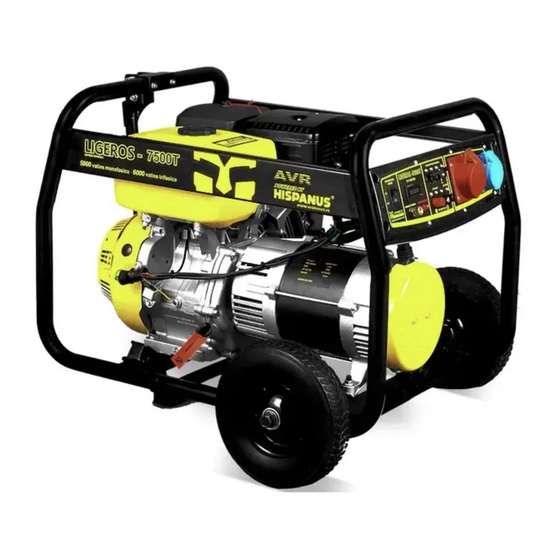

- Page 1 HISPANUS GENERATOR LIGEROS - FUERTES...
- Page 2 MANUAL PARA - FUERTES ATS/SOL - LIGEROS 6000T (TRIFÁSICO) - LIGEROS 7500T (TRIFÁSICO)
-
Page 3: Table Of Contents
TABLE OF CONTENTS WELCOME ................................2 SAFETY PRECAUTIONS ............................2 ABOUT YOUR GENERATOR ..........................3 1.1 UNPACKING ..............................3 1.1.1 ACCESSORY BOX ..........................4 1.2 ASSEMBLY ..............................4 1.2.1 ASSEMBLING THE WHEEL KIT AND HANDLES ................4 1.3 KNOW YOUR GENERATOR ......................... 4 1.3.1 PRODUCT SPECIFICATIONS ...................... -
Page 4: Welcome
WELCOME Thank you for your purchase. We wish you years of success using your new generator. This manual contains general warnings about the inherent risks of operating generators and specific warnings about the operation and maintenance of this particular generator. In addition, it outlines important maintenance and storage procedures as well as the limited warranty. -
Page 5: About Your Generator
dangerous operating conditions from leaking exhaust gases, fuel leakage, oil leakage, etc. • On electric start models, disconnect the POSITIVE (+) battery cable from the engine starter or the NEGATIVE (-) battery cable from the battery terminal, whichever is easier, before transporting the generator. NOTE: The generator muffler is equipped with a spark arrestor, which must be maintained in effective working order by the owner/ operator. -
Page 6: Accessory Box
1.3 KNOW YOUR GENERATOR Read the entire Owner’s Manual and Safety Rules before operating this generator. Compare the generator as below to become familiarized with controls and adjustments. 1.3.1 PRODUCT SPECIFICATIONS MODEL LIGEROS-3500 LIGEROS-6000(T) LIGEROS-7500(T) GENERATOR SPECIFICATIONS Rated Power 2.8 KVA 5.0 KVA... -
Page 7: Major Component
Surge Power 3.5 KVA 6.0 KVA 7.5 KVA Rated AC Voltage 230V, 230/400V Rated Frequency 50 Hz @ 3000 RPM Phase Single/Three Phase Rated DC Voltage 12VDC Battery Type 12 AH, 12VDC 18(20ATS) AH, 12VDC 18(20ATS) AH, 12VDC Gasoline Capacity 15 L 25 L 25 L... -
Page 8: Grounding The Generator
receptacles. The system ground is bonded to the AC neutral wire in the generator control panel via a jumper wire. Special Requirements There may be some regulations, local codes, or ordinances that apply to the intended use of the generator. Please consult a qualified electrician, electrical inspector, or the local agency having jurisdiction: •... -
Page 9: Adding Gasoline
• Clean area around oil fill and remove dipstick. • Slowly fill engine with oil through the oil fill opening until it reaches the full mark of dipstick. Stop filling occasionally to check oil level. • Install dipstick. Check engine oil level before starting each time thereafter. 2.1.2 ADDING GASOLINE Do not light a cigarette or smoke when filling the fuel tank. -
Page 10: Led Indicator Description
• ATS Mode select (if equipped): Turn the MODE SELECT button to ATS position on the control panel. • Connecting: Use provided signal cable to connect generator and ATS. Connect ATS to generator socket and city power and home wire as the diagram. Ask electrician if necessary. •... -
Page 12: Stopping The Engine
2.4 STOPPING THE ENGINE • Shut off and unplug all electrical loads from generator receptacles. Never start or stop the engine with electrical devices plugged in. • Let engine run at no-load for several minutes to stabilize the internal temperatures of engine and generator. •... -
Page 13: Generator Maintenance
3.2.1 GENERATOR MAINTENANCE Keeping the unit clean and dry. Operate and store the unit in a clean dry environment where it it is away from excessive dust, moisture or any corrosive vapors. Cooling air slots in the generator must not become clogged with snow, leaves, or any other foreign material. -
Page 14: General
The engine exhaust muffler has a spark arrestor screen. Inspect and clean the screen at least once each year. If unit is used regularly, inspect and clean more often. If using the generator on any forest-covered, brush-covered or grass-covered unimproved land, it must equipped with a spark arrestor. -
Page 15: Troubleshooting
TROUBLESHOOTING 4.1 TROUBLESHOOTING GUIDE PROBLEM CAUSE COLLECTION Engine is running, but no AC output is Circuit breaker is open. Reset Circuit breaker. available. Poor connection or defective Check and repair. cord set. Connect another device that is in good condition. Connected device is bad. -
Page 16: Warranty
Any costs incurred due to replacement or repair of items outside of an HISPANUS approved facility is the responsibility of the buyer and not covered under warranty. Transportation costs to and from service center is the responsibility of the buyer/customer. - Page 17 BY LAW. HISPANUS Calahorra (La Rioja) c.p. 26500 España Tel.:+34-941148926 Servicio tecnico: sat@hispanus.es Equipo comercial: ventas@hispanus.es...
