MIPOT 33000148MIP Manual

Mini-receiver for recessed installation with 230vac mains operation – 16 a
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MINI-RECEIVER FOR RECESSED
INSTALLATION WITH 230Vac MAINS
OPERATION – 16 A
Product Code: 33000148MIP
PRODUCT SUMMARY :

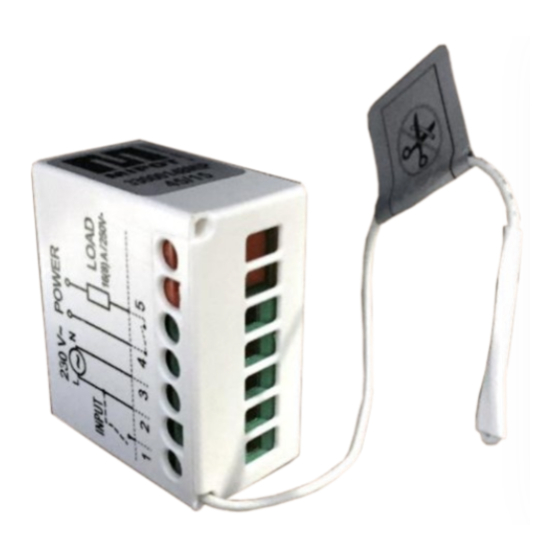

Extremely compact receiver for recessed installation
capable to drive loads up to 16A, powered directly from
the 230 Vac mains.
A single key allows full programming of the and an LED
indicator displays the state of the menu.
The radio frequency receiver is the super-heterodyne
type, controlled by microcontroller with decoding
functions, remote control learning and anti-noise digital
filter.
The use of a SAW filter provides excellent selectivity and suppresses off-band signals,
allowing the use of the product even in the presence of disturbances.
Power is supplied by an efficient low power supply (standby ≤1.5W), characterized by a
wide range of operating voltage and is protected against over voltages on the mains
input.
The module has been certified according to Radio Equipment Directive (RED)
2014/53/EU.
Compliant with REACH and RoHS directives.
APPLICATIONS :
Wireless actuator to control loads such as lights, motors, etc., intelligent management
of lighting, adding spot lights, energy saving, actuators for home automation, etc.
MECHANICAL CHARACTERISTICS
Mipot S.p.A. reserves the right to modify the specifications without notice
Page 1 of 17
Rev. 2.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 33000148MIP and is the answer not in the manual?

Questions and answers

Summary of Contents for MIPOT 33000148MIP

  • Page 1 Wireless actuator to control loads such as lights, motors, etc., intelligent management of lighting, adding spot lights, energy saving, actuators for home automation, etc. MECHANICAL CHARACTERISTICS Mipot S.p.A. reserves the right to modify the specifications without notice Page 1 of 17...

  • Page 2: External Dimensions

    Cosφ = 1 @ 250Vac Output contacts current VAC Cosφ = 6,4A/1600VA @ 250Vac 16A/480W @ Resistive Output contacts current VDC 30Vdc load IP level IP20 Mipot S.p.A. reserves the right to modify the specifications without notice Page 2 of 17...
  • Page 3 Note 5: Minimum time between the acknowledgment of a command and the following. Note 6: unless otherwise specified, the measurements were performed at ambient temperature of 25 ° C. Mipot S.p.A. reserves the right to modify the specifications without notice Page 3 of 17...

  • Page 4: General Warnings

    (fuse or circuit breaker) on the power line.  The power supply lines must be protected by means of a circuit breaker (2P or Mipot S.p.A. reserves the right to modify the specifications without notice Page 4 of 17...
  • Page 5 Warning: the maximum length of the cable connected to the local input is 4 meters. Make sure the connections are correct before powering up the module: incorrect connection may damage the equipment and cause danger to personal safety. Mipot S.p.A. reserves the right to modify the specifications without notice Page 5 of 17...
  • Page 6 Note: if you learn rolling code remote controls, you cannot learn fixed code remote controls, and vice versa unless you erase the remote controls memory before. Simultaneous reception of fixed and HCS remote controls is not possible. Mipot S.p.A. reserves the right to modify the specifications without notice Page 6 of 17...
  • Page 7 Terminal 1: input (cabled) for local control of relay  Terminal 2: power supply input (line/positive)  Terminal 3: power supply input (neutral/negative)  Terminal 4: relay common  Terminal 5: relay output Mipot S.p.A. reserves the right to modify the specifications without notice Page 7 of 17...

  • Page 8: Operation

    The remote controls buttons are learned individually (you cannot learn a whole remote button set just by learning one of its transmission keys). The remote controls are learned according to the procedure described in paragraph 0 Mipot S.p.A. reserves the right to modify the specifications without notice Page 8 of 17...
  • Page 9 If the contact is kept closed for a longer time (i.e. when using a standard switch), the command is executed at both the closing and the reopening of the contact. Mipot S.p.A. reserves the right to modify the specifications without notice Page 9 of 17...
  • Page 10 Caution: if the output was active before the voltage dip, at voltage recovery the output will remain in any case active for a fraction of a second! Mipot S.p.A. reserves the right to modify the specifications without notice Page 10 of 17...

  • Page 11: Functions Programming

    . The memory erasure resets the device to factory default settings: No remote control stored Bistable mode Default timings (see paragraph “TIMEOUT PROGRAMMING”) Mipot S.p.A. reserves the right to modify the specifications without notice Page 11 of 17...
  • Page 12 The remote controls memory erasure does not reset the outputs settings. To erase another transmitter, repeat step 4. To complete the procedure to wait for the 10 seconds time-out. Mipot S.p.A. reserves the right to modify the specifications without notice Page 12 of 17...
  • Page 13 MINI-RX for more than 3 seconds. The LED on the receiver will perform another blink. Output function change does not erase the stored remotes. Mipot S.p.A. reserves the right to modify the specifications without notice Page 13 of 17...
  • Page 14 1 pressure -> 1 second 2 pressures -> 2 seconds … 59 pressures -> 59 seconds The receiver will blink 4 times at each button pressure. Mipot S.p.A. reserves the right to modify the specifications without notice Page 14 of 17...
  • Page 15 MINI-RX for more than 3 seconds. The receiver will perform a (long) blink. If timeout settings are not confirmed, the previously stored timeout is maintained. Mipot S.p.A. reserves the right to modify the specifications without notice Page 15 of 17...
  • Page 16 LED. If the memory is full, the receiver’s LED will perform 10 Note x 10 blinks. Mipot S.p.A. reserves the right to modify the specifications without notice Page 16 of 17...
  • Page 17 Rev. 2.3 DECLARATION OF CONFORMITY: We, MIPOT S.p.a. Via Corona, 5 34071 - Cormons (GO) - Italy declare that the product 33000148MIP, 16A MINI RX complies with the essential requirements and other relevant provisions of Directives:  2014/53/EU (RED Directive) ...
