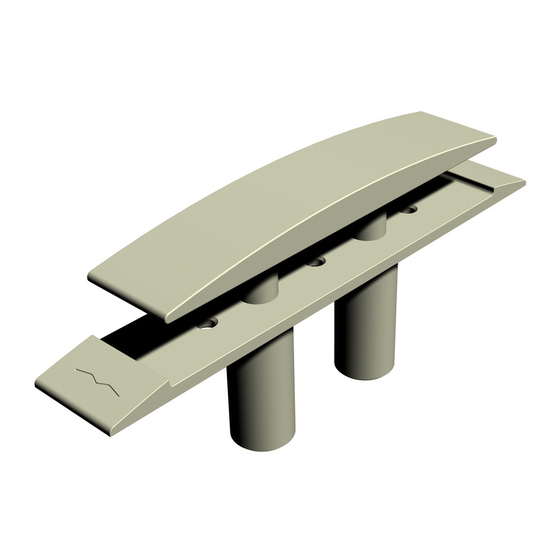

Folding cleat: B120, B175, B240, B320, B400, B175X, B240X, B320X, B400X, B500X, BE175X, BE240X.
CAUTION. Read all instructions carefully before installing and using this product.
1. REQUIRED FOR INSTALLATION.
T Allen key or screwdriver
Threadlocker
Folding cleat. Aluminium / Stainless steel
Drill
Non acidic degreaser
Anti-corrosion lubricant
rev. 09-2018
Hole saw
Polyurethane marine sealant
| P. 01 |
Advertisement
Table of Contents
Summary of Contents for seasmart B120
- Page 1 09-2018 Installation instruction Folding cleat. Aluminium / Stainless steel Folding cleat: B120, B175, B240, B320, B400, B175X, B240X, B320X, B400X, B500X, BE175X, BE240X. CAUTION. Read all instructions carefully before installing and using this product. 1. REQUIRED FOR INSTALLATION. Drill...
- Page 2 (see templates at page 05, 06, 07, 08). Use a hole saw to cut holes for cylinders and a drill bit to cut holes for screws. Type B120 print P.05 Ø 6,5 mm Ø 19 mm B175 / B175X / BE175X print P.05...
- Page 3 | P. 03 | rev. 09-2018 Installation instruction Folding cleat. Aluminium / Stainless steel 3. PREPARING THE BASE. Carefully clean the bottom side of the base, apply a small bead of marine sealant under the flange, into the groove. 4. INSTALLATION Place the base on the deck and let the cylinders go into the holes.
- Page 4 09-2018 Installation instruction Folding cleat. Aluminium / Stainless steel 5. CLEAT ASSEMBLY. Screw again the piston to the cleat. turning counter-clockwise - looking at the cleat from the top. Type Tightening torque (N·m) B120 B175 B240 B320 B400 B500...
- Page 5 | P. 05 | rev. 09-2018 B175 B175X BE175X B120...
- Page 6 | P. 06 | rev. 09-2018 B240 B320 B240X B320X BE240X...
- Page 7 | P. 07 | rev. 09-2018 B400 B400X...
- Page 8 | P. 08 | rev. 09-2018 B500X...
