Summary of Contents for Augmency Cyclops HMD

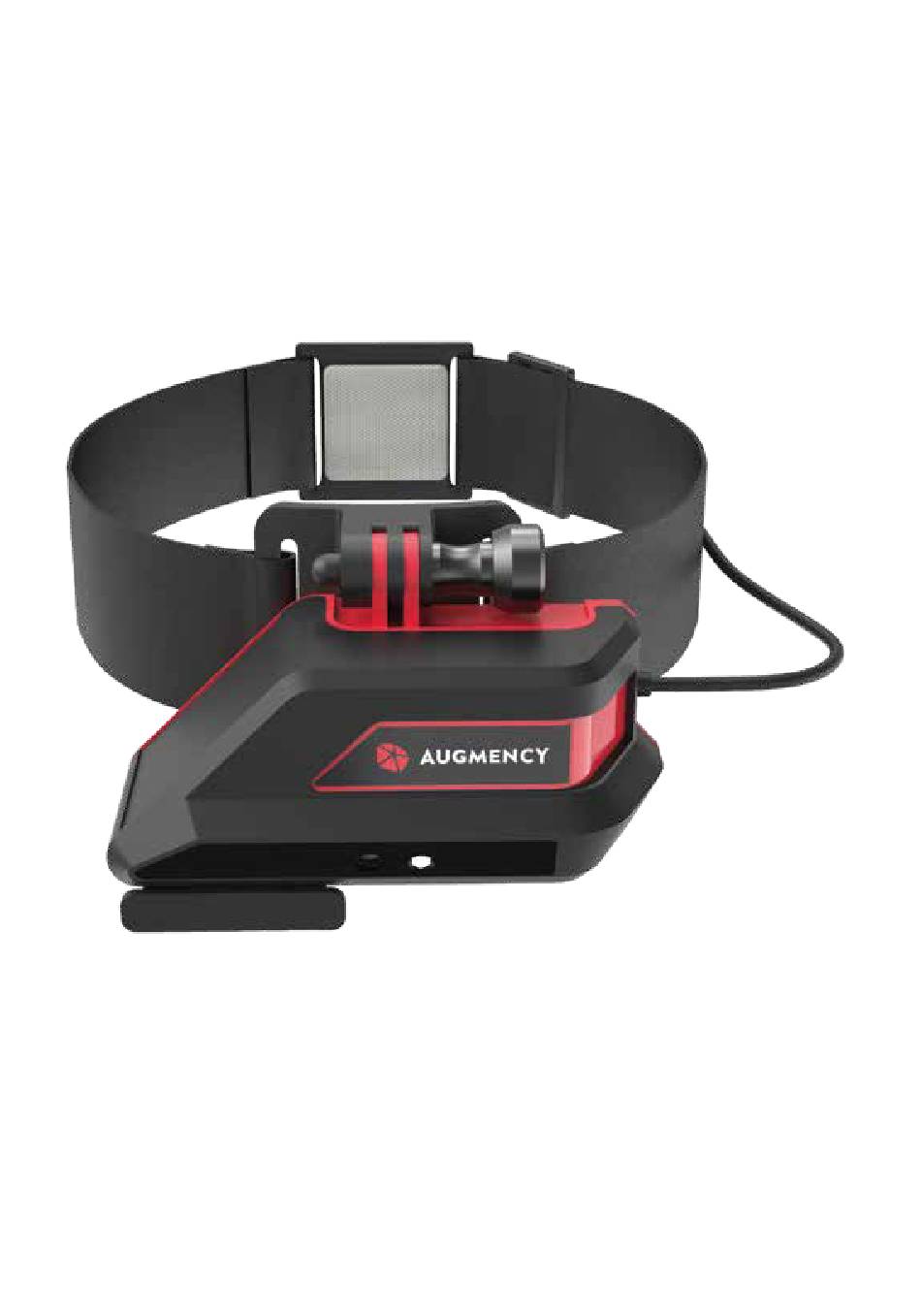

- Page 1 Augmency Cyclops HMD Installation and Users Manual Ver. 1.0 augmency.com...
-
Page 2: Table Of Contents
Contents Box contents ..........2 Safety and Usage Guidelines ........3 Warranty conditions ..........4 Compatible Phones ..........4 How To wear Cyclops HMD and Settings ....4 -Headband Adjustment ........4 -Adjusting the beam splitter ........5 -Usage ............5 Maintenance ..........5 -Cleaning Optical Parts ........5 -Storing the Device ..........5... - Page 3 5. Lens Cleaning Tissue 6. Warranty Certificate 7. Installation and Users Manual 8. Micro USB to Type-C Converter ___________________________________________________________ 1- Headband 2- Headband Screw 3- Cyclops HMD to Mobile DEvice Connection Cable 4- Lighting Led 5- Camera 6- See-through AR Screen 7- Touchpad...
-
Page 4: Safety And Usage Guidelines
Safety and Usage Guidelines • Use your Cyclops HMD device as specified in the users manual. • Do not use Cyclops HMD while driving. • When you are not using the Cyclops HMD, lift the screen up and out of your sight. -
Page 5: Warranty Conditions
Warranty conditions Cyclops HMD has a warranty period of 2 (two) years from the invoice date. Warranty conditions are specified separately in the warranty document. Disassembling the device by people other than the authorized service and removing the hologram label on the back of the device exclude the device from the scope of warranty. -
Page 6: Maintenance
Adjusting The See-Through AR Screen To get a clear view with the Cyclops HMD, you can change the angle of the see-through AR screen by pushing it up and down with your finger tip. After wearing the Cyclops HMD, adjust the angle of the see-through AR screen so that you can see the entire screen. - Page 7 Cyclops HMD. After giving permisson you need to connect to your mobile device to Cyclops HMD. If your mobile device has a micro USB port, you can directly connect mobile phone with Cyclops HMD.
-
Page 8: Ara Web Application
AR screen During the call, you can control the application menu with the touch pad which is on the right side of the Cyclops HMD. You can open the application menu by sliding your finger up on the touchpad. - Page 9 Screen sharing Drawing on Screen Capture The annotated image is shown to the user by being shared. In addition, all kinds of documents and information such as technical drawings, guides, 3D drawings can be shown to the user by screen sharing.
-
Page 10: Troubleshooting
•The Warranty Certificate must be filled and stamped by the AUGMENCY authorized dealer from whom you purchased the device. •The warranty is only valid for services to be carried out by AUGMENCY approved services. Manufacturer and seller companies are not responsible for the intervention of non-expert and unauthorized persons to the device. - Page 11 MANUFACTURER Title : Augmency Teknoloji Sanayi A.Ş Address : Etiler Mah. Bahtiyar Sok. No:4 Kat:2 D:2 Beşiktaş / İstanbul Telephone: +90 212 807 00 52 E-mail : info@augmency.com Authorized Person Signature and Stamp Your Device Model Serial .umber Max. repair time...
- Page 12 DECLARATION OF CONFORMITY Company Name : Augmency Teknoloji Sanayi A.Ş Adress : Etiler Mah. Bahtiyar Sok. No:4 D:2 Besiktas Istanbul Turkiye 34337 Phone : +90(212) 807 00 52 E-mail : info@augmency.com The product meets the technical requirement of the under standards and hence fulfils the technical requirements of the following directives.
