- Page 1 Wiring Instructions v1 GateKeeper h5 Technical Support support@gymmaster.com USA: (415) 915 0375 Australia: (+61) 1800 849 001 New Zealand: (+64) 3 668 5727 Copyright 2021 Treshna Enterprises. All rights reserved. March 2021...
- Page 2 Normally Open Contacts Normally Closed Contacts Troubleshooting Test the relay wiring to the magnet lock EPIC Sanctuary PO Box 13352 www.gymmaster.com 78-106 Manchester St Armagh Mail Centre NZ (+64) 3 668 5727 Christchurch 8011 Christchurch 8011 AU (+61) 1800 849 001...
-
Page 3: Hardware Checklist

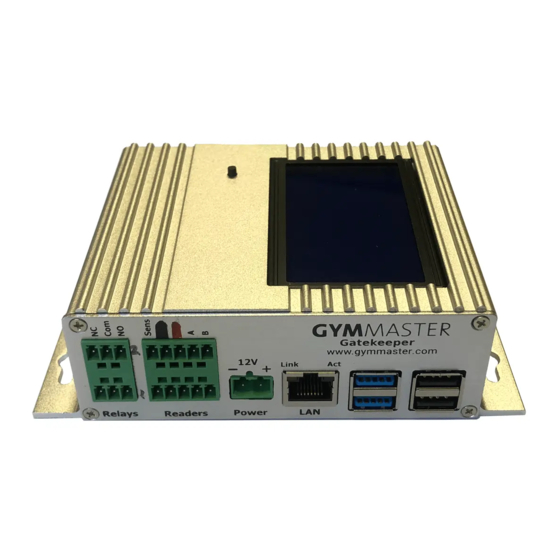

Preface This wiring guide is for the technician or electrician responsible for installing the GateKeeper h5, door readers, and access control units as supplied by Treshna Enterprises Ltd. This guide includes an overview of the hardware involved, example wiring diagrams for both Fail-Secure and Fail-Safe access control devices, emergency buttons, as well as diagnostic tests and basic troubleshooting. - Page 4 GateKeeper Overview The GateKeeper h5 contains both the GateKeeper computer and relay unit required to operate the access control that works with GymMaster. The GateKeeper needs to be powered AND connected to the Internet to work correctly. The GateKeeper can also be used to operate desktop readers and receipt printers, which connect to the USB ports.
-
Page 5: Power Supply
Note: Maximum length of RS232 serial cable connection is 15 metres (50 feet). Maximum length of a standard USB cable connection is 3 metres (10 feet). EPIC Sanctuary PO Box 13352 www.gymmaster.com 78-106 Manchester St Armagh Mail Centre NZ (+64) 3 668 5727... - Page 6 The diode MUST be wired correctly according to the diagram, otherwise there may be cumulative electrical damage to the GateKeeper board, the reader unit, or the device power supply. EPIC Sanctuary PO Box 13352 www.gymmaster.com 78-106 Manchester St Armagh Mail Centre NZ (+64) 3 668 5727 Christchurch 8011...
- Page 7 GND on the Door 1 or Door 2 socket, refer to the sample wiring diagram. You need to enable the push button sensor in the door setting page in GymMaster at Settings -> Door and Readers -> [Specified Door]. RFID Reader Sockets The rear of the GateKeeper has two sockets.
- Page 8 Desktop readers and receipt printers are connected by USB cable to one of the USB ports at the front of the GateKeeper. The Gatekeeper USB ports MUST be used ONLY for GymMaster devices. If you attempt to connect or charge any electronic device, such as mobile phone, digital camera, etc, this can cause reader faults.
-
Page 9: Sample Wiring Diagrams
Fail Safe locks will leave the door UNLOCKED when the power goes off. Check with your local fire regulations as to which you should use. Door lock, door lock power-supply, and any Push To Exit buttons are NOT supplied by GymMaster, and should be sourced in advance by installer. - Page 10 Fail-Secure EPIC Sanctuary PO Box 13352 www.gymmaster.com 78-106 Manchester St Armagh Mail Centre NZ (+64) 3 668 5727 Christchurch 8011 Christchurch 8011 AU (+61) 1800 849 001 New Zealand New Zealand US (415) 915 0375 Page 9...
- Page 11 Fail-Secure with Emergency Exit EPIC Sanctuary PO Box 13352 www.gymmaster.com 78-106 Manchester St Armagh Mail Centre NZ (+64) 3 668 5727 Christchurch 8011 Christchurch 8011 AU (+61) 1800 849 001 New Zealand New Zealand US (415) 915 0375 Page 10...
- Page 12 Fail-Safe EPIC Sanctuary PO Box 13352 www.gymmaster.com 78-106 Manchester St Armagh Mail Centre NZ (+64) 3 668 5727 Christchurch 8011 Christchurch 8011 AU (+61) 1800 849 001 New Zealand New Zealand US (415) 915 0375 Page 11...
- Page 13 Fail-Safe with Emergency Exit EPIC Sanctuary PO Box 13352 www.gymmaster.com 78-106 Manchester St Armagh Mail Centre NZ (+64) 3 668 5727 Christchurch 8011 Christchurch 8011 AU (+61) 1800 849 001 New Zealand New Zealand US (415) 915 0375 Page 12...
- Page 14 To this: Normally Closed Contacts In arrangements where the normally closed (NC) contacts are used, wire the relays in series. EPIC Sanctuary PO Box 13352 www.gymmaster.com 78-106 Manchester St Armagh Mail Centre NZ (+64) 3 668 5727 Christchurch 8011 Christchurch 8011...
-
Page 15: Troubleshooting
If that does not happen, it means that the wiring has not been done correctly on the lock mechanism. Please check the power supply for the lock and other related wiring. EPIC Sanctuary PO Box 13352 www.gymmaster.com 78-106 Manchester St Armagh Mail Centre NZ (+64) 3 668 5727...
