Summary of Contents for Mepla Alfit Soft-close

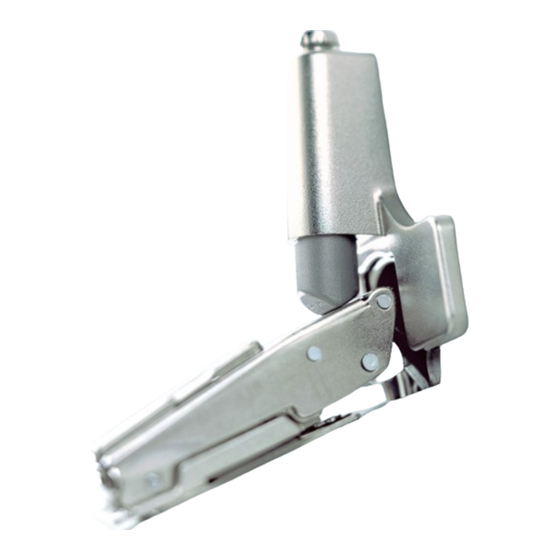

- Page 1 ® Soft-close The unique hinge Soft-close® system for doors ® Soft-close...
- Page 2 ® Soft-close Summary Page 1.5.4 Soft-close® CST • For hinges CST04, CST 05, CST 22 and CST 29 • Quick and easy tool-less installation 1.5.8 Soft-close® CS • For hinges CS04, CS 05, CS 22 and CS 29 • Quick and easy tool-less installation Soft-close®...
- Page 3 Page 1.5.14 Soft-close® ACC • For face frame doors 1.5.16 Soft-close® AL • For aluminium frame doors 1.5.
- Page 4 Elegant design and fascinating engineering. The perfect combination of the hinge series CST Twin NT with Soft-close® CST. Feel like something quiet? Then use Soft-close® CST. Experience – how doors move in a floating motion. The future is entering into all furniture.
- Page 5 1 Take door off the cabinet, remove cover cap (if installed) on 00 cranking hinges , open flap of hinge cup. 2 Insert Soft-close® CST adapter onto locator pins which are attached to the hinge cup. 3 Close Twin NT flap of hinge cup completely.
- Page 6 ® Soft-close Suitable for CST 04, CST 05, CST 22, and CST 29 hinges Soft-close® CST Set 1 Set consisting of: 1 Soft-close® CST adapter 1 Soft-close® CST damper 2 Hinge arm cover caps Ref. No. 924.200.41.0115 125 set Soft-close® CST Adapter Soft-close®...
- Page 7 Thank you for your understanding. Warning Usage of low grade board material or furniture doors under- going constant rough usage, the screwing of the adapter with screws Ø 3 mm is recommended. Soft-close®CST is not recommended for frame door application. 1.5.
- Page 8 Elegant design and fascinating engineering. The perfect combination of the hinge series CS Click-on with Soft-close® CS. Feel like something quiet? Then use Soft-close® CS. Experience – how doors move in a floating motion. The future is entering into all furniture.
- Page 9 5 Adjust Soft-close® CS to different opening angles and cranking if necessary via adjustment Please check: screw. Are notches located on both sides of the 6 Use cover for hinge cup (included in set) for the hinge without Soft-close® CS to achieve a hinge cup? uniform appearance. 1.5.
- Page 10 ® Soft-close For hinges CS04, CS 05, CS 22 and CS 29 Soft-close® CS Set 1 Set concisting of: 1 Soft-close® CST adapter with pre-mounted Soft-close® 1 Hinge cup cover cap CS 2 Hinge arm cover caps Ref. No. 924.200.40.0115 125 set Soft-close®...
- Page 11 Technical Information Position for Soft-close® CS Position for additionalSoft-close® CS (recommended) The installing of our furniture fittings must comply with the Mepla-Alfit instructions that are stated in our available sales brochures, otherwise Mepla-Alfit can’t be held liable. If further information on installation and assembly is needed, please contact one of our factories directly.
- Page 12 Drawing with mounting plate, thickness 02 Ref. No. 924.200.39.0215 125 pcs. Technical Information Position für Soft-close® CS Position for additionalSoft-close® F65 (recommended) The installing of our furniture fittings must comply with the Mepla-Alfit instructions that are stated in our available sales brochures, otherwise Mepla-Alfit can’t be held liable.
- Page 13 Drawing with mounting plate, thickness 02 Ref. No. 924.200.38.0215 50 pcs. Technical Information Position for Soft-close® Mirro Position for additionalSoft-close® Mirro (recommended) The installing of our furniture fittings must comply with the Mepla-Alfit instructions that are stated in our available sales brochures, otherwise Mepla-Alfit can’t be held liable.
- Page 14 ® Soft-close For frame doors Soft-close® ACC • For wooden and aluminium frame doors • Soft-close characteristic can be adjusted • Simple assembly • Invisible from the outside • Elegant design Ref. No. 924.200.36.0215 125 pcs. Cover cap Counter part, universal suitable for use with all crankings Ref.
- Page 15 When using wooden frames smaller than 60 mm we recommend a trial mount. When using aluminium frames use of glass gasket or Silicon is not allowed in the area where Soft-close ACC is fitted. Recommended position for Soft-close® ACC g = s + m...
- Page 16 For aluminium frame doors Soft-close® AL • For aluminium frames 20 x 20 mm • To use with CS 17 AL hinges • Soft-close characteristic can be adjusted • Simple assembly • Invisible from the outside • Elegant design Ref. No.
- Page 17 = s + m Position for inset door: 10,5 mm + door thickness + 2 mm Use of glass gasket or Silicon is not allowed in the area where Soft-close AL is fitted. We recommend a trial mount. Recommended position for Soft-close® AL...
- Page 18 • Integrated front adjustment • High quality finish • Dynamic-XP – The runner with smooth and soft movement • No side play • High carrying capacity • Soft-close® Add-on Systems • Variowing Glass-Add-on system • Duowing Double wall add-on system •...
