SHB320-D650-F - desk user instruction
Parts list
Technical specifications
Direction for use

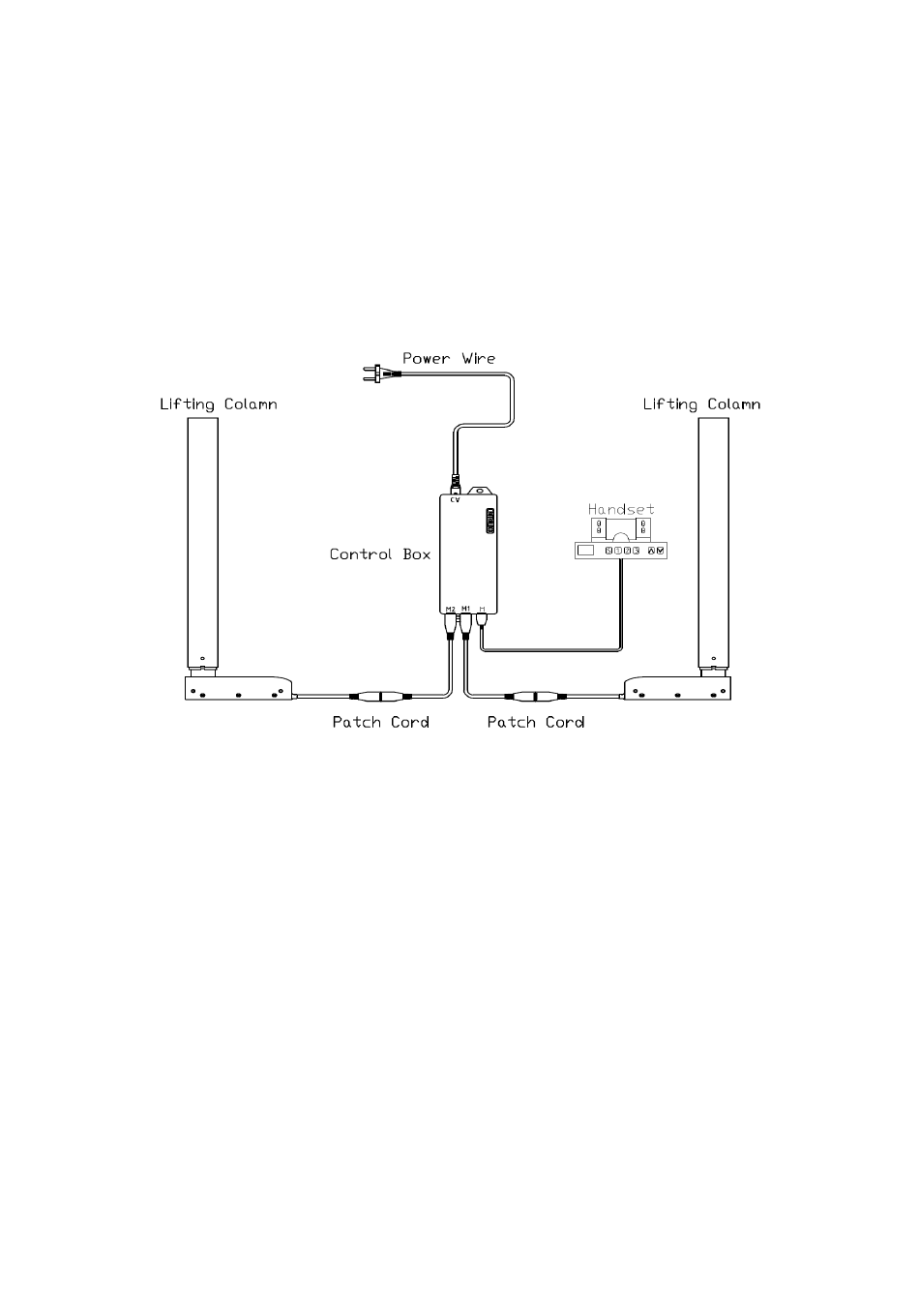

1. Correctly connect the control box, handset, power cord, lifting column & patch cord – picture above.
2. Plug the power cord into 110~220 VAC outlet the LCD display will show "PON" for seconds indicating a positive power connection system
resetting. After resetting the LCD display will display 605 (mm), reset finished.
Reset:
Press and hold the "Down" button until handset display "RES" and then release button, the desk will begin to lower until to the lowest
height then slightly rise. Reset finished.
3. After reset, press and hold "Up" button, lifting column will rise, release to stop.
4. After reset, press and hold "Down" button, lifting column will lower, release to stop.
5. How to set the memory buttons:
1.
Control box -------------------------------------
2.
Handset -----------------------------------------
Power cord -------------------------------------
3.
4.
Lifting column ----------------------------------
1.5 m patch cord ------------------------------
5.
1.
Input------------------------------------------------
2.
Output power ------------------------------------
3.
Load capacity -----------------------------------
4.
Max speed ---------------------------------------
5.
Stroke ---------------------------------------------
6.
Min install dimension --------------------------
7.
Operation temperature ------------------------
8.
Duty cycle ----------------------------------------
1 pc
1 pc
1 pc
2 pcs
2 pcs
110~220 VAC
24 VDC
1400 N
30 mm/s
650 mm
605 mm
0-40
℃
max.10% or 2 min on and 18 min off
Page 1 of 4
Advertisement
Table of Contents
Summary of Contents for Shenghua SHB320-D650-F
- Page 1 SHB320-D650-F - desk user instruction Parts list Control box ------------------------------------- 1 pc Handset ----------------------------------------- 1 pc Power cord ------------------------------------- 1 pc Lifting column ---------------------------------- 2 pcs 1.5 m patch cord ------------------------------ 2 pcs Technical specifications Input------------------------------------------------ 110~220 VAC Output power ------------------------------------...
- Page 2 After pressing and holding “Up/Down” button to a height, press button “S” first, then press button 1, this height will be remembered by button 1. Still pressing and holding “Up/Down” button to another height, press button “S”, then press button 2, this height will be remembered by button 2. The same way, the button 3 can remember other heights.
- Page 3 Setting handset display brightness - 2br Hold button “S” for 3 seconds. Handset will display “S---", then release pressing button “S” and press button “S“ again to enter, the code “1Un” will then appear. Press button “Up”/”Down” to be “2br”, then press button “S” to enter, this will display current display brightness level (H/N/L). L means low brightness, N means normal brightness, H means high brightness.
- Page 4 After setting, desk can only motion between new lowest position and new height position. Switching between modes - 8Hc Hold down button “S” for 3 seconds. Handset will display “S---", then release pressing button “S” and press button “S” again to enter, the code “1Un”...
