Summary of Contents for Akekio PES-A9

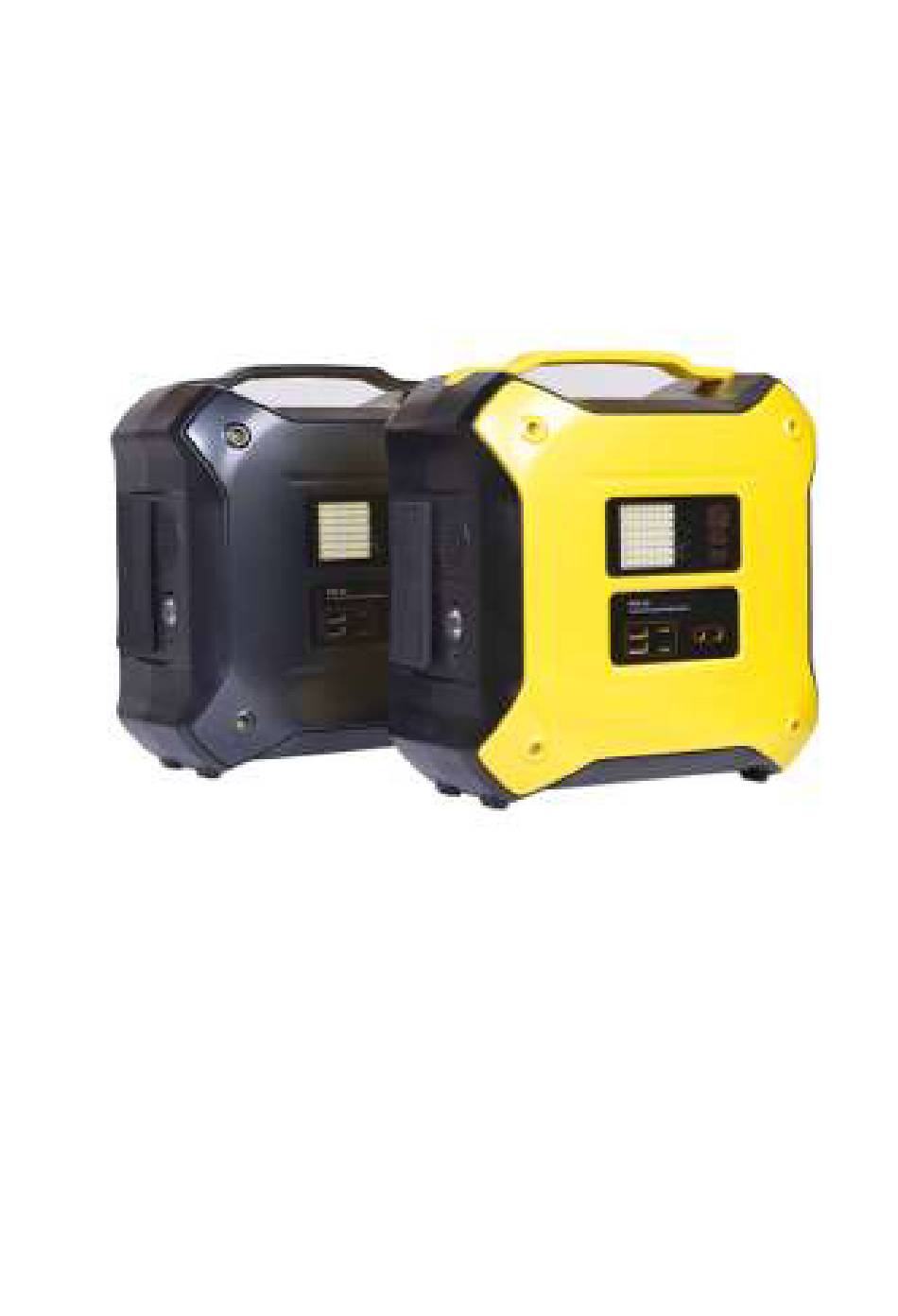

- Page 1 Portable Energy Storage System PES-A9 Operating Manual Introduction: System Introduction: PES-A9 portable multi-functional energy storage system, combined with solar charging, storage, discharge control management as the design basis, built-in high-capacity,...
- Page 2 high-performance lithium iron phosphate batteries, using the current advanced automotive power lithium battery manufacturing process, with multiple security protection, strong output energy, provide AC voltage output, DC Different voltage output two modes, convenient for different electrical power supply, built-in Bluetooth speaker, flashlight, two-stage lamp lighting, SOS flash mode, suitable for household power , emergency power supply, support dangerous rescue, support the lack of power areas, provide camping or travel power mode...
-
Page 3: Safety Warning
safety warning Security Tips To ensure that you use this product safely and correctly, please observe the following: Safety note and the precautions: Keep the product out of the reach of children. Please place the product in a place where children cannot touch it. Please use the accessories purchased from the original factory or official channels. -
Page 4: Appearance Introduction
will be a risk of electric shock or fire. The inside of the product has a large capacity lithium battery, nonprofessionals cannot open the shell, otherwise there will be electric shock, fire danger. If there is smoke or fire, please use a dry powder fire extinguisher. Using a liquid fire extinguisher may cause electric shock. - Page 5 Appearance introduction (two) Appearance introduced (2) speaker speaker Bluetooth speaker button AC output Sound switch AC output TF card connector TF card seat Flashlight Flashlight charging port Charging port...
- Page 6 Instructions (One) Click the "POWER" button, the battery light will be on for 10 seconds, and the battery information Long press the "POWER" button, When the red light is on, it means the system is normal, and it goes out after a long press again, which means the system is shut down In the power-on state, click "DC ON", the DC blue light is on, indicating that the USB A&TYPE C port output is turned on, and it can supply power to 5V devices such as mobile phones.
- Page 7 Operating instructions( 1) Click the "POWER" button, and the power lamp lights up 10S to display the power information. Press the "POWER" button for a long time. When the red light is turned on, the system is normal. When the red light is pressed again, the system is turned off. In the boot state, click the "DC ON", DC blue light, said USB A&TYPE C output port open, can supply to the mobile phone and other 5V devices, while controlling the flashlight and lamp lighting mode by different key mode...
- Page 8 Instructions(two) Operating instructions( 2) Bluetooth operating instructions: Bluetooth operation instructions: : Turn on and off the Bluetooth speaker, long press approximately 3second, Turn on the Bluetooth speaker function, after hearing the prompt tone, turn on successfully; Shutdown: approximately Long press when the Bluetooth speaker is on second, Bluetooth speaker is off;...
- Page 9 When the TF card into the card slot, TF card automatically play music, music can be controlled by buttons Charging instructions PES-A9stand by15V4AAdapter charging, please use the original charger, while supporting18V Max 150WSolar charging. PES-A9 supports the 15V4A adaptor, please use the original...
- Page 10 18V 150W maximum solar charging. Electrical parameters Specifications Model PES-A9 307WH±5% Power capacity 220VAC 50HZ AC Output voltage rated power300watt maximum:350watt AC Power Rating Rated power: 300W, MAX: 350W Correction wave Output Waveform Amendment Wave DC 12V Output Rating...
- Page 11 Bluetooh V4.0 Bluetooth profile Adapter power 15V/4A Solar panel power 18V MAX: 120W Solar charging Voltage Turn off output when over temperature,Restart after recovery Over-Temperature Protection Turn off the output at over temperature and restart after recovery Turn off the output when the load is overloaded, Restart after recovery Overpower Protection When load is overloaded, the output is closed...
-
Page 12: Warranty Card
Product Uses time 3000mAHcell phone battery Mobile phone Charging 30 times battery Laptop 3-6H Desktop 1-1.5H 50W electric fan 32 inch LCD TV 4-6H 12V/3W LED light 10-100H 25W Bulb 10-12H Refrigerator 6-12H Warranty Card Thank you for using this product! Our company provides you with warranty service within 12 months from the date of . - Page 13 Purchase Repair date date customer's contact name number customer address Sales unit Product exception description Warranty card Thank you for using our product! Our company will provide you with warranty services within 12 months from the date of purchase. Please show this warranty card when you need warranty, and please fill in the relevant contents in detail.
- Page 14 We can provide repair service without warranty within the scope of warranty, but the cost of maintenance shall be borne by the customer. Product Factory number model Date of purchase Maintenance date Customer name Contact number Customer address Point of sale Product exception description...
