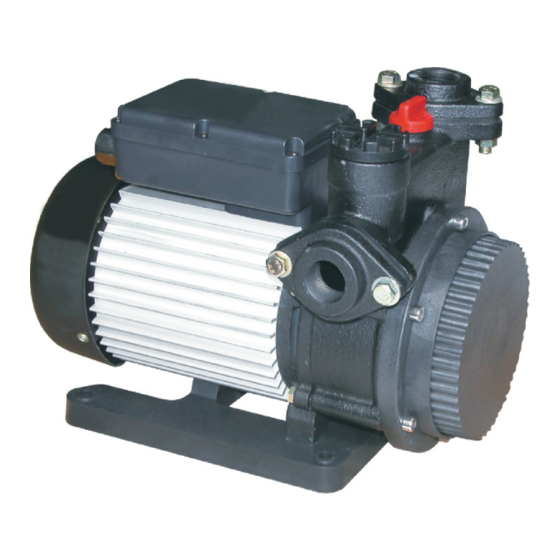

Evergush EK Series Instruction Manual

SECTIONAL DRAWING

FIG.4
9 10 8
7 6

OPERATING CONDITIONS

0 0
1. Liquid temperature: +5 C~+60 C
O
2. Ambient temperature: Max. 40 C
3. Working pressure: Max. 6 kg/cm
4. Suitable for clean water, without
solid particles or non-corrosive fluids.
50
40
30
20
10
0
0 10 20 30 40 50 60 70
CAPACITY (L/min)

SPECIFICATION

Power PH Voltage Rated Suction
MODEL
Current Lift
50HZ
HP V A M
EK400 1/2 1 220~240 3.1 5
Power PH Voltage Rated Suction
MODEL
Current Lift
60HZ
HP V A M
11 0 / 2 2 0 5.6/2.8 5
EK400 1/2 1
11 0 / 2 2 0 11/5.5 5
EK800 1 1
NO. Name
1 Pump Casing
2 Impeller
1 3 Mechanical Seal
2
4 Shaft
3
5 Base
4
5 6 Motor Shell
7 Wiring Box
8 Outlet Flange
9 Inlet Flange
10 Priming Plug

PERFORMANCE CURVES

2
60HZ
CAPACITY (L/min)
80 90 100
Rated Rated Max. Max. Dia.
Head Flow Head Flow
M L/min M LPM MM
20 36 28 70 20/25
Rated Rated Max. Max. Dia.
Head Flow Head Flow
M L/min M LPM MM
20 32 27 70 20/25
28 65 45 100 25
~3~
Material
FC200
SUS304
CA+CE+NBR
SUS410
ABS
SILENT DOMESTIC WATER PUMP
Aluminum Alloy
ABS
FC200
FC200
PC
50Hz
EK400
Net Package
Weight Dimensions
KG CM
11.2 33X21X26
Net Package
Weight Dimensions
KG CM
11.2 33X21X26
13.8 38.5X21X26
EK-SERIES
INSTRUCTION MANUAL
SILENT OPERATION
GREAT WATER VOLUME
ASIA AUTOMATIC PUMP CO.,LTD
MADE IN TAIWAN
