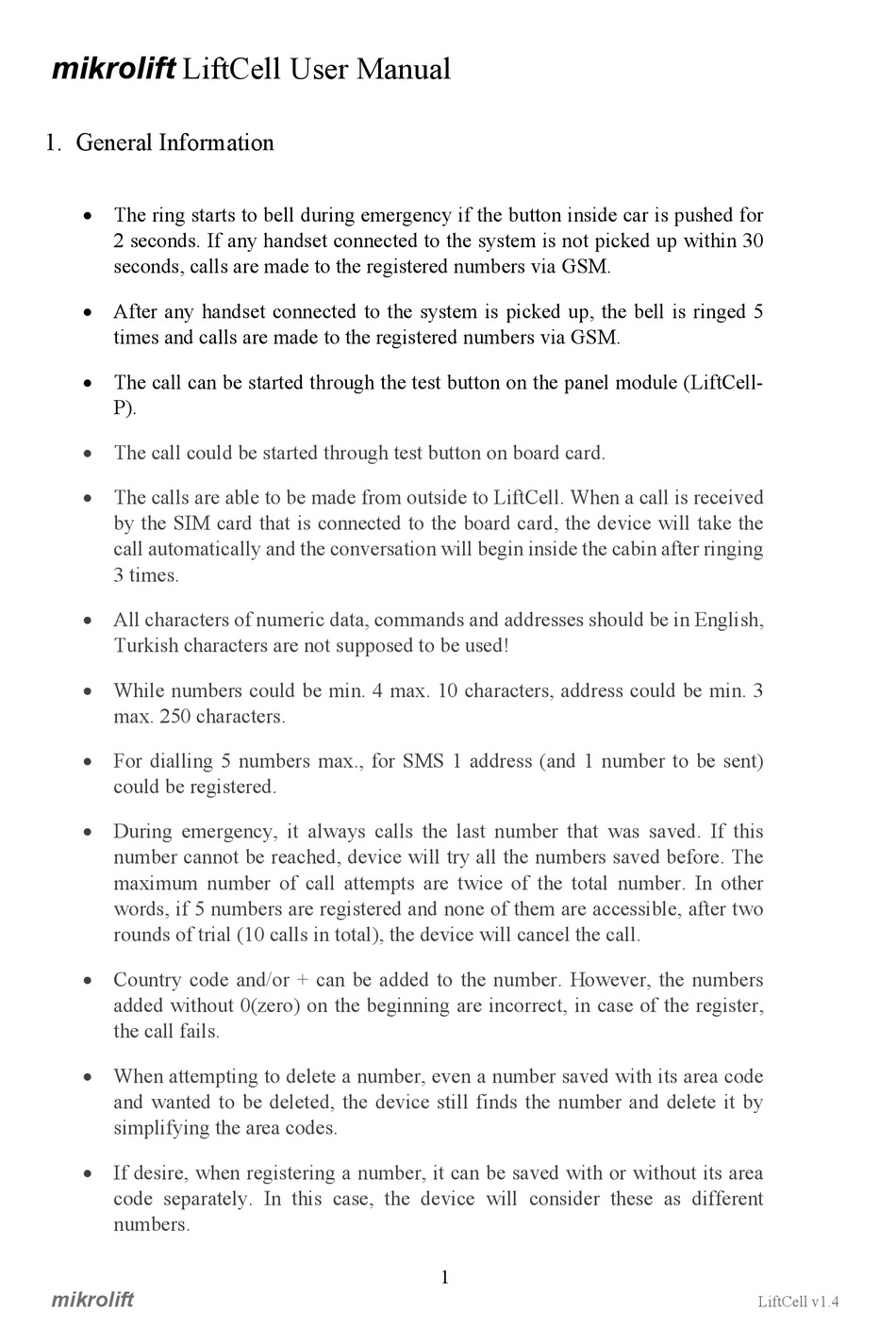

mikrolift LiftCell User Manual

mikrolift LiftCell User Manual

1. General Information

 The ring starts to bell during emergency if the button inside car is pushed for
2 seconds. If any handset connected to the system is not picked up within 30
seconds, calls are made to the registered numbers via GSM.
 After any handset connected to the system is picked up, the bell is ringed 5
times and calls are made to the registered numbers via GSM.
 The call can be started through the test button on the panel module (LiftCell-
P).
 The call could be started through test button on board card.
 The calls are able to be made from outside to LiftCell. When a call is received
by the SIM card that is connected to the board card, the device will take the
call automatically and the conversation will begin inside the cabin after ringing
3 times.
 All characters of numeric data, commands and addresses should be in English,
Turkish characters are not supposed to be used!
 While numbers could be min. 4 max. 10 characters, address could be min. 3
max. 250 characters.
 For dialling 5 numbers max., for SMS 1 address (and 1 number to be sent)
could be registered.
 During emergency, it always calls the last number that was saved. If this
number cannot be reached, device will try all the numbers saved before. The
maximum number of call attempts are twice of the total number. In other
words, if 5 numbers are registered and none of them are accessible, after two
rounds of trial (10 calls in total), the device will cancel the call.
 Country code and/or + can be added to the number. However, the numbers
added without 0(zero) on the beginning are incorrect, in case of the register,
the call fails.
 When attempting to delete a number, even a number saved with its area code
and wanted to be deleted, the device still finds the number and delete it by
simplifying the area codes.
 If desire, when registering a number, it can be saved with or without its area
code separately. In this case, the device will consider these as different
numbers.
