June 2020
INSTALLATION INSTRUCTION MANUAL
Dear Installer,
We hope you have a great experience installing Ice Solar energy equipment.
If you have any questions please contact us.
Commissioning with Customer
Please ask customer to be available at the end of the day/estimated
completion time for commissioning and to go through user operation.
Advertisement
Summary of Contents for ICE SOLAR STD20
- Page 1 June 2020 INSTALLATION INSTRUCTION MANUAL Dear Installer, We hope you have a great experience installing Ice Solar energy equipment. If you have any questions please contact us. Commissioning with Customer Please ask customer to be available at the end of the day/estimated...
- Page 2 CORRUGATED ROOF & METAL TILE ROOF RAISED UP STANDS TILE ROOF...
-
Page 3: System Specifications
SYSTEM SPECIFICATIONS FRAME & STAND ASSEMBLY STD20 - 30 Stand is for flat roof or elevating to different pitch to the roof System Area STD20 Gross - 2.856m² Aperture - 1.881m² Absorber - 1.632m² Fixing point hole mesurements STD30 Gross - 4.286m²... - Page 4 5. Space rails at no more than 2.1mts apart (overall) for STD30 and 1.4mts apart (overall) for STD20. Note that the fixings to manifold and foot-rail to ‘U’ channel are horizontally adjustable. Outer ‘U’ channels are to be installed first and should be located no more than 200mm from edge of solar panel.
- Page 5 SOLAR KIT & PARTS RETROFIT EXAMPLE NOTE: Thermal break in hot water return is sometimes not possible, Here is an installation displaying a thermal break for hot and cold. 4-way valve is inserted into hole drilled through inner baffle in cylinder 4 way valve usually takes the cold feed, however in this example the cold feed is on the bottom left of image as this cylinder has two bottom ports.
- Page 6 ROOF FIXING METHODS TOPHAT PURLIN EVENLY SPREAD HEAT PAST AROUND TUBE TIP...

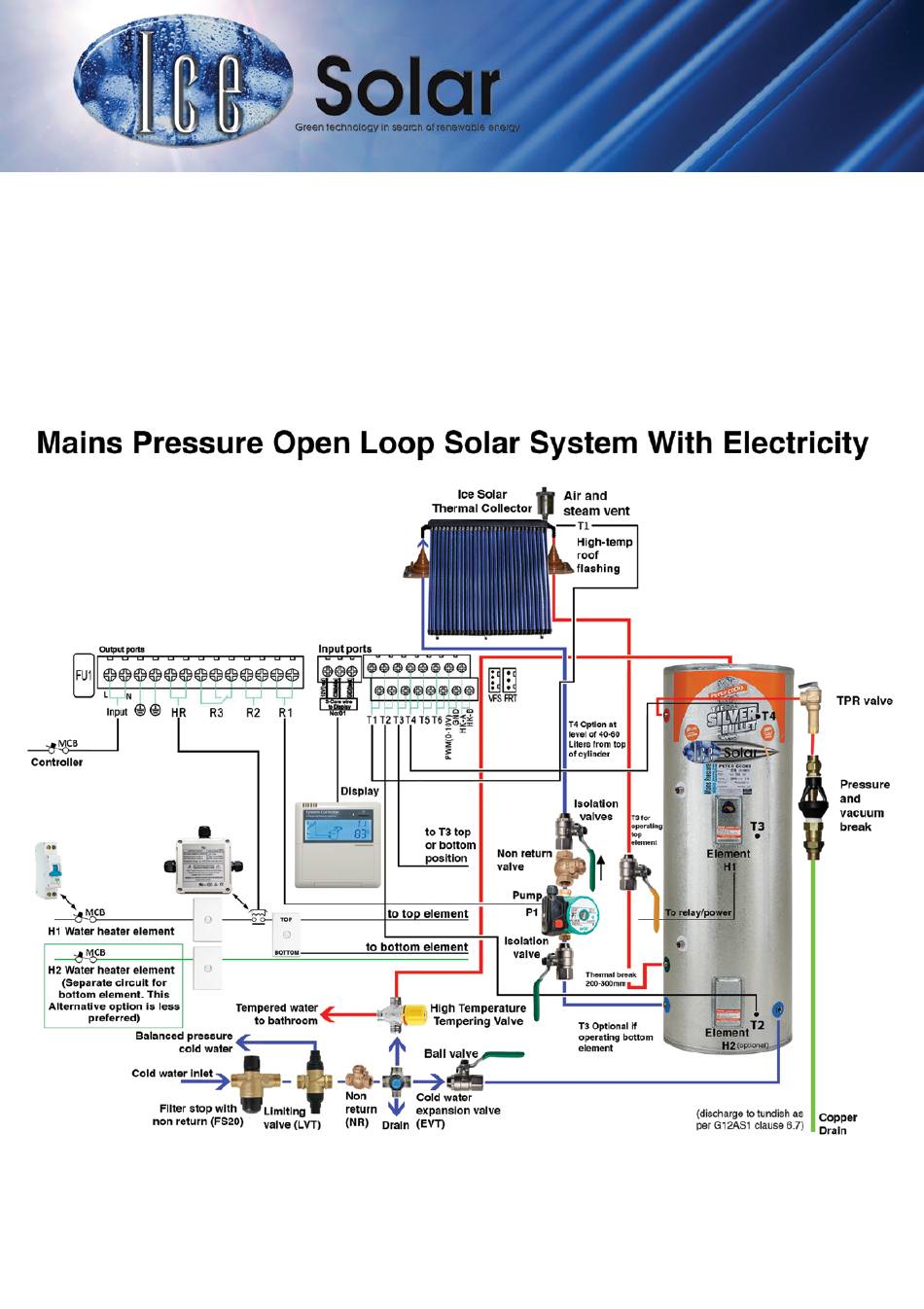

- Page 7 1. Installations will run most efficiently with 3/8” pipe runs with the Ice Solar standard returning back to the cylinder at a point higher than the draw-off (150mm-200mm) system configurations.
- Page 8 (see retrofitting when fitting to existing non-solar cylinders below). All Ice Solar cylinders have probes in the correct position. Please also observe the instructions above for wiring with these added notes •...
-
Page 9: Setting Up The Controller
To open a drop down menu (TEMP & FUN) you press ‘SET’, to close a drop down of the controller function. If unsure seek advice from Ice Solar. menu you press ‘ESC’. A menu is open when the menu items reading is flashing. -
Page 10: Pump Speed
ELECTRICAL PUMP SPEED • Provide standard 3 pin power socket for controller to plug into below the location of controller terminal box near the hot water cylinder. • For single element cylinders connect phase from MCB/isolation switch via contactor side of relay to element. •... - Page 11 WARNING When using the controller to control the element, the element is only activated when the Cylinder making banging noise top sensor is under a THET set point and during a time heating period.Most solar cylinders • Due to cylinder expansion through heat. Ensure that a cold water expansion valve and a have the T3 sensor too high, this should be at the halfway point, if mid element is being hot water TPR valve are fitted.
- Page 12 In areas of high lime content the backup electric element should be ‘zinc Important Checks alloy’, otherwise Ice solar panels are capable of handling poor water quality. However, it is advisable to run clean water for extra longevity of all your plumb- £...
- Page 13 Scan to access Scan to download www.icesolar.co.nz manuals & consent Thank you for choosing Ice Solar View Our Online Store Leading Solar Specialists Ice Solar Ltd 0064 3 3554323 gordon@icesolar.co.nz...
