Summary of Contents for Rasson Vienna

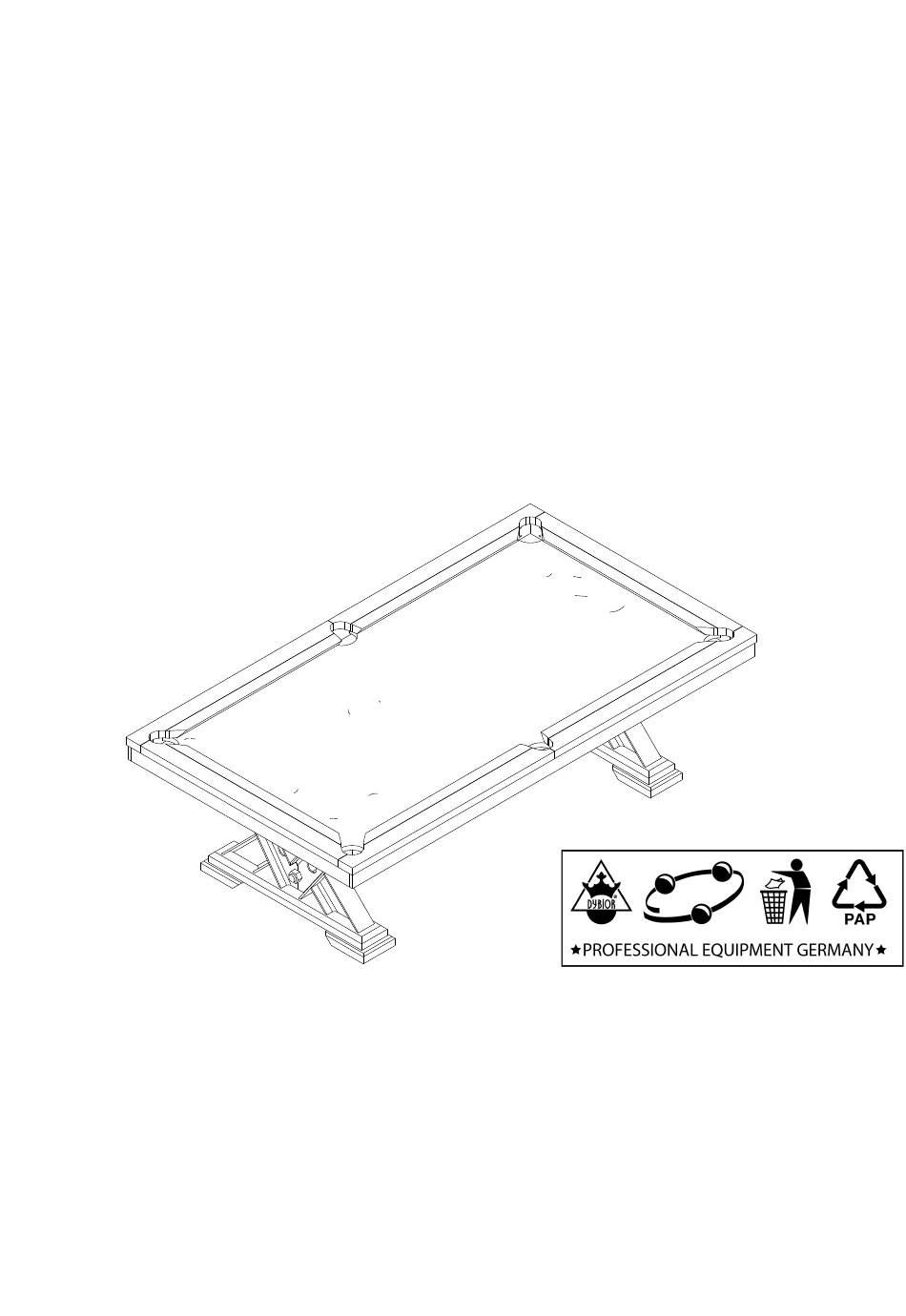

- Page 1 8' VIENNA VIENNA TABLE ASSEMBLY INSTRUCTIONS AUFBAUANLEITUNG...
- Page 2 VIENNA HARDWARE ITEM# SAMPLE DESCRIPTION QTY. PACKAGE HEX HEAD CROSS BOLT 3/8" 2-3/8"(M10X60mm) FLAT WASHER 3/8" I.D. HEX NUT 3/8" I.D. HEX HEAD CROSS BOLT 5/16" 3-1/8"(M8X80mm) FLAT WASHER 5/16" I.D. FLAT HEAD SCREW 1/4" X 2"(M6X50mm) STUD BOLT 5/16" X 5-1/2"(...
- Page 3 VIENNA COMPONENT PARTS QTY. PACKAGE SAMPLE DESCRIPTION ITEM# LEG CENTER BEAM CABINET LONG WOODEN BLOCK SHORT WOODEN BLOCK SIDE APRON END APRON APRON JOINT CORNER BLOCK TOP RAIL LEFT SIDE TOP RAIL RIGHT SIDE TOP RAIL END SIDE POCKET CORNER POCKET...
- Page 4 VIENNA COMPONENT PARTS QTY. PACKAGE ITEM# SAMPLE DESCRIPTION SLATE (RIGHT) CLOTH WOOD JOINT Page 3...
- Page 5 FIG.1 FIG.2 Page 4...
- Page 6 FIG.3 FIG.4 Page 5...
- Page 7 FIG.5 FIG.6 Install the rails according to the numbers printed on backside of rails. Page 6...
- Page 8 FIG.7 CLOTH * GLUE THE CLOTH TO THE SLATE Finish Page 7...
