USERS MANUAL

DAB Receiver

DIGITAL AUDIO BROADCASTING

Table of Contents

Need help?

Do you have a question about the RDAB100-RU and is the answer not in the manual?

Questions and answers

Summary of Contents for RELISYS RDAB100-RU

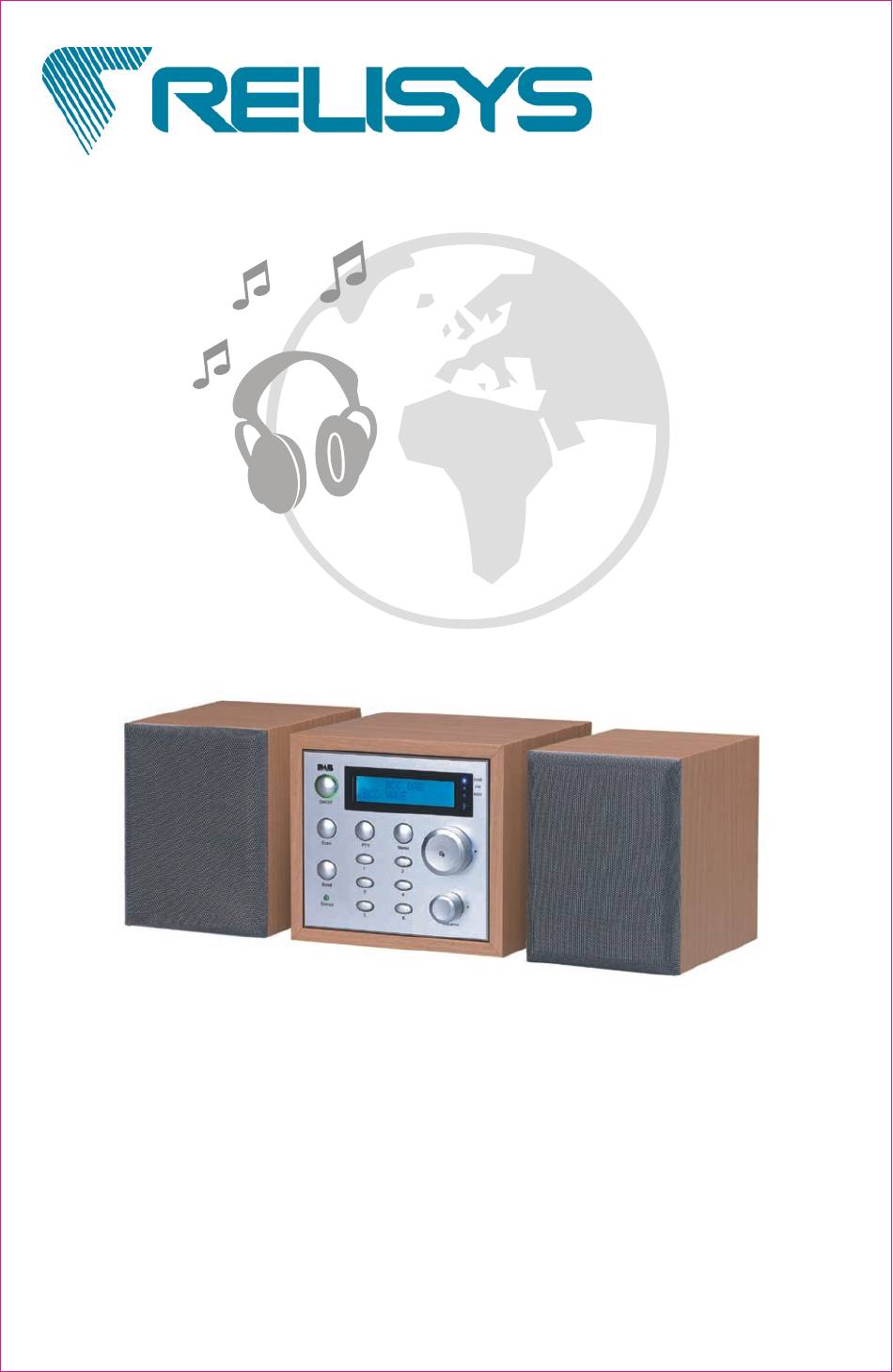

Page 1 USERS MANUAL DAB Receiver DIGITAL AUDIO BROADCASTING...
Page 3 GENERAL SAFETY SUMMARY RISK OF ELECTRONIC SHOCK DO NOT OPEN CAUTION: DO NOT REMOVE THE COVER FOR REDUCING THE RISK OF ELECTRIC SHOCK. NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING To prevent fire or shock hazard , do not expose the unit to rain or moisture. IMPORTANT SAFETY INSTRUCTIONS 1.
Page 4 11. For added protection for this product during a lightning storm, or it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect cable system. This will prevent damage to the product due to lightning and power line surges.
Page 6: Table Of Contents
CONTENTS INTRODUCTION Features PACKAGE CONTENT RDAB100-RU CONTROLS The DAB Receiver CONNECTION OPERATION Get Started DAB Mode Advanced Setup Options FM Mode Alarm Setting TROUBLE SHOOTING...
Page 7: Introduction
Digital Audio Broadcasting with FM/RDS radio Crystal clear CD quality sound Fully compliant to ETSI EN 300 401 RDAB100-RU Supports DAB Band III(mode I, II, III, IV) and L Band (Mode I, II, III, IV)) Clock, Alarm, Sleep, Snooze functions...
Page 8: Package Content
PACKAGE CONTENT he package includes the following devices. After unpacking your box, please check that you have all following items. RDAB100-RU Welcome On/Off Auto tune Snooze Info -Full -Advanced Band Stereo Sleep One unit of DAB receiver (Speakers optional) Polarity: Input: AC 100-240V ~ 50/60Hz Output: DC 9V / 1.1A...
Page 9: Controls
CONTROLS The DAB Receiver Front Panel Welcome Auto tune Snooze Info -Full -Advanced Sleep POWER button and LED indicator Auto Tune button provides one touch DAB tuning BAND button for the selection of radio modes between DAB and FM Stereo LED indicate when stereo is being received Snooze button silence the alarm for 5 minutes INFO button steps through the displays of several information texts 16 x 2 Characters LCM with backlight...
Page 10 CONTROLS Real Panel HEADPHONE connector STEREO LINE OUT connector Adaptor connector...
Page 11: Connection
CONNECTION Connecting to power supply Connect the DAB receiver to a standard wall outlet of the appropriate voltage. DC9V Note: We offer the acceptable specification of power supply in Output:DC9V/1.1A; Input:AC 100-240V ~ 50/60Hz. Caution: Do not use an unauthorized substitution which may result in damage, fire or other hazards.
Page 12: Operation
OPERATION Get Started Power On and Off After setting up all the connections, extend the aerial in the optimise position. Plug the Power cable to turn on the unit. Power up at the first time, get real time clock 1 4 : 0 0 from DAB station.
Page 13: Dab Mode
OPERATION DAB mode Providing more instruction on using the DAB receiver, it includes tuning, auto tune, presetting/recall a station, station information, adjusting volume. The TUNE knob allows you to tune the frequency and select different stations. Tune and station selection vary depending upon which mode you select.
Page 14 OPERATION Providing detailed information of the station that you are listen to. Info Press the Info button and release it, the information -Advanced text displayed will step through DLS information, program type, Ensemble name, Signal strength, Time and Date, alarm status. D A B T y p e >...
Page 15: Advanced Setup Options 6
OPERATION Advanced Setup Options Providing more instruction on using the DAB receiver, it includes manual tune, display mode and station information. Press tune knob to enter the advanced setup options. Rotate the tune knob to scroll through the compression menu. Pressing tune knob and hold for 2 seconds allows you to turn on manual tune mode.
Page 16: Fm Mode
OPERATION FM mode Providing more instructions on using the FM mode, it includes setting tuning method, quick tuning/manual tuning and preset / recall a station. There are two methods of tuning in FM mode. To do a quick tunning, press Auto Tune button, Auto tune -Full the unit search the next available station and...
Page 17 OPERATION RDS Function If broadcasting stations located on your country provide RDS services, the clock and program service name will display on LCM. Station Information Providing detailed information of the station that you Info are listen to. -Advanced Press the Info button and release, the information text M H z <...
Page 18: Alarm Setting
OPERATION Alarm Setting Providing more instructions on using the alarm function, it includes setting alarm under radio and displaying alarm status under clock mode. Alarm Mode Info -Advanced In DAB mode, press the Info button to cyclically display A R M DLS >...
Page 19 OPERATION Alarm Type setting Press the tune knob again to enter the alarm type 7 5 M z mode. A R M Rotate the knob clockwise or anticlockwise to select 7 5 M z cyclically DAB > FM > Beep alarm type. A R M 7 5 M z DAB alarm type...
Page 20 OPERATION Alarm tone The alarm tone Beeps with increasing rapidity during the first minute after being triggered. Setting for Sleep In DAB and FM On state, press Sleep button to cyclically select the radio to switch to Off standby Sleep after 90 minutes >...
Page 21: Trouble Shooting
TROUBLE SHOOTING Please read the user manual carefully before using the DAB receiver. If you still have difficulties to use this unit, the following will guide you to solve the most common problems. No sound Check if the adaptor has been well connected. Check if all the cables have been well connected.
Page 23 6060408018-10...
