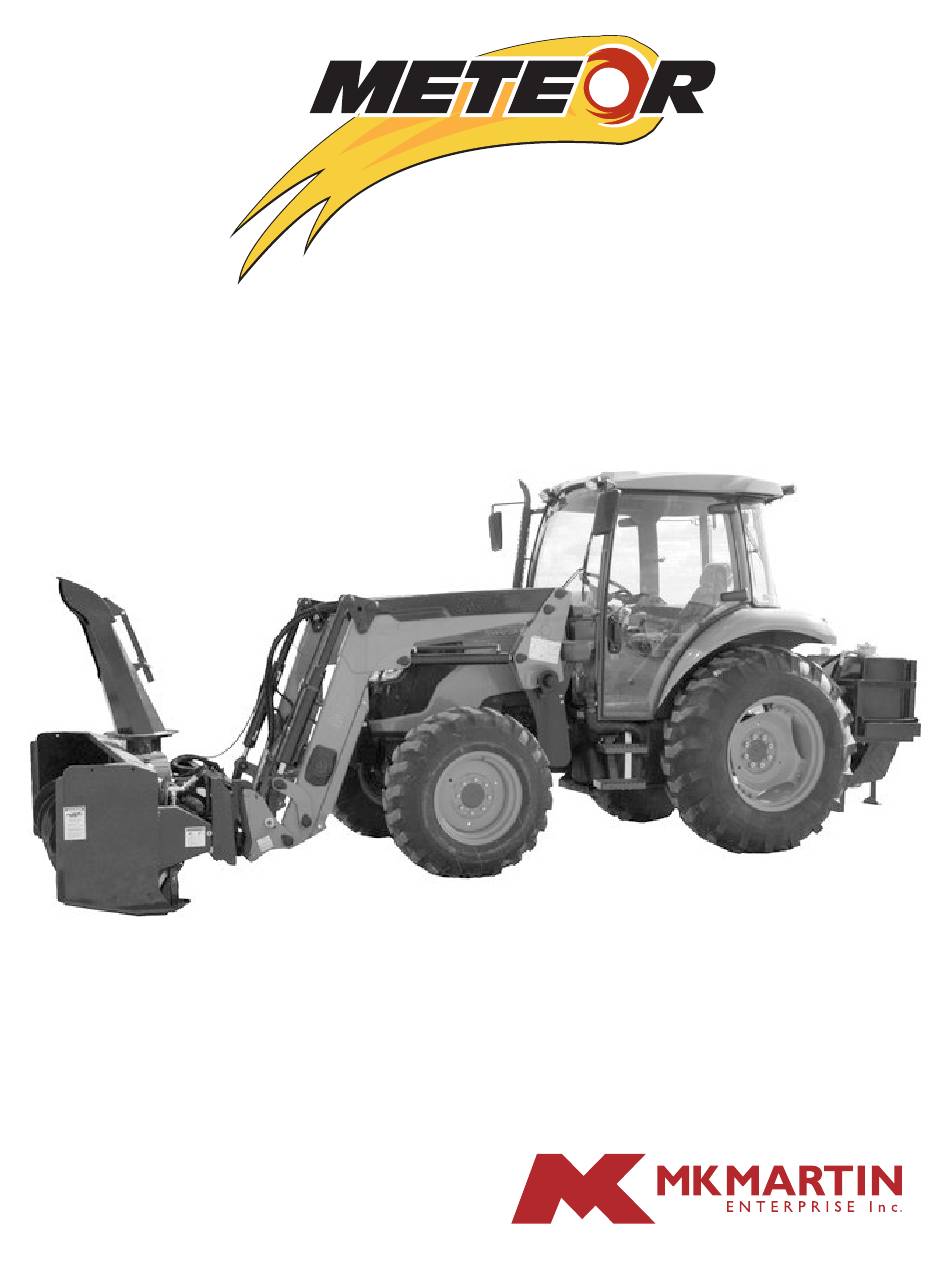

- Page 1 Meteor Loader Blower with Power Pack Operator’s / Parts Manual MK Martin Enterprise Inc. 3950 Steffl er Rd Elmira, ON, Canada N3B 2Z3 Tel: 519-664-2752 Toll Free: 1-855-664-2752 Fax: 519-664-3695 E-mail: sales@mkmartin.ca www.mkmartin.ca REV: 17-6...
- Page 2 Intentionally Left Blank...
-
Page 3: Table Of Contents
Table of Contents • Warranty ------------------------------------------------------------------------------------------- • Registration ---------------------------------------------------------------------------------------- • Safety ----------------------------------------------------------------------------------------------- • Decal Location ----------------------------------------------------------------------------------- • Assembling --------------------------------------------------------------------------------------- • Attaching ------------------------------------------------------------------------------------------- • Electrical Installation ---------------------------------------------------------------------------- • Operating ------------------------------------------------------------------------------------------ • Sign Off sheet ------------------------------------------------------------------------------------ • Power Pack Parts ------------------------------------------------------------------------------- 14-15 •... -
Page 4: Warranty
Warranty and Limitations of Liability All equipment is sold subject to mutual agreement that it is warranted by M K Martin Inc. (Here- after called the company) to be free of any defects in material and workmanship. The company shall not be liable for special, indirect or consequential damage of any kind under this con- tract or otherwise. - Page 5 M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3 --------------------------------------------------------------------------------------------------------------------- Purchaser’s warranty protection is valid only when this completed form or a copy of this form is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has acknowledged delivery of equipment and owner’s / operator’s manual and has accepted the condition of the equipment.
-
Page 6: Registration
Warranty Registration Please Cut and Return to M K Martin Enterprise Inc Fold And Tape here Do not tape all edges or use staples Fold Here ------------------------------------------------------------------------------------------------------------------------- Postage Stamp M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3... - Page 8 Please be careful with the extra weight on the tractor. Note: you have added weight to the front and back of the tractor. Keep the blower close to the ground at all times. Do not drive with the loader raised up more than a few feet.
- Page 9 Hydraulic Leak Test Warning! Do not check for high pressure leaks with your hands or fi ngers. Use a piece of cardboard or a thin piece of wood to detect the leak. A high pressure stream of fl uid from a pin hole can penetrate the skin and inject hydraulic fl uid into your blood veins.
-
Page 10: Safety
Blower\33886.SLDASM S:\Solidworks\Solidworks_Elo\Snowblower\LoaderBlower\33365 Hyd Power Pack.SLDASM Meteor Loader Blower Decal Location 6 7 8 9 Meteor Loader Blower Decals Power Pack Decals SmallMKMartin Meteor small decal 2 pieces Made in Canada 1 piece Notes Folder S:\Solidworks\Solidworks_Elo\Snowblower\LoaderBlower\ 2- 244 DIMENSIONS ARE IN INCHES... - Page 11 Meteor Loader Blower Assembly For shipping the chute is not installed on the Snowblower. After receiving the blower unpack the chute and attach it to the blower as shown below. Apply a light coat of grease to both sides of the plastic Anti Friction Ring and center on top of the fan outlet.
-
Page 12: Attaching
Attaching the Meteor Loader Blower The Loader Blower has two basic parts. The Power Pack and the Blower. The Power Pack is attached on the rear 3ph and driven with the PTO. The Blower is attached to the loader and driven with hydraulic lines from the power pack. - Page 13 Installing Electric Chute Control The Chute is controlled with a control pendent that has two switches. One switch is for the rotator and the other is available for the deflector control. The Chute Control consists of; 1 Battery wire, (has Red and Green sleeves on battery end with battery clips) 1 Extension wire 1 Control Handle 1 Control Wire...
-
Page 14: Operating
Operating the Meteor Loader Blower Before operating this equipment, inspect all electrical connections and hydraulic couplings for proper connection. Raise the Power Pack far enough to have adequate ground clearance of the front stand. Place the back stand in transport position to keep it from getting damaged. - Page 15 Sign Off Form M K Martin Enterprise Inc. follows the general Safety Standards specifi ed by the American Society of Agricultural Engineers (ASAE) and the Occupational Health and Safety Administration (OSHA). Anyone who will be operating and/or maintaining the equipment must read and clearly understand ALL Safety Operating and Maintenance instructions presented in this manual.
- Page 16 Hydraulic Power Pack Item # Part # Description H112-M-NA10 Filter Indicator Gauge 5406-2012 Adapter 5602-1212 Adapter Tee 1501-1212 Adapter Elbow 33626 Relief Vale Return Hose 33629 Return Hose 33347 Main Frame 7/16 Lynch Pin...
- Page 17 Item # Part # Description FF3-4 Male Flat Face Coupler 382710 Hitch Pin Bolt 8- 1.25x16 mm Bolt c/w 5/16 lw 6901-1212 Adapter Elbow 33627 Main Pressure Hose FF3-4 Female Flat Face Coupler VMPK20 Relief Valve 6902-1212 Adapter 45° Elbow M12x1.75x20 Bolt c/w 1/2 lw 519-871187 PTO Assembly...
- Page 18 Meteor Loader Blower Item # Part # Description 34741 66” Auger 34743 76” Auger 34744 86” Auger Bolt 7/16 x 1 1/2 c/w lw, n 52730 Bearing Bolt 1/2 x 1 1/2 c/w lw, n 52774 Auger Sprocket Bolt 3/8 x 1 c/w lw...
- Page 19 Item # Item # Description Bolt 5/16 x 1 3/4 c/w lw, n 21139 Deflector Hinge Pin 1/2” SAE Washer 1/8x1 Cotter Pin 34643 Deflector Hair Pin 5/16 21773 Deflector Adjuster Pin 10701 Deflector Adjuster Bar 34640 Chute Bolt 5/16 x 1 1/2 c/w lw, n Bolt 3/8 x 1 1/4 c/w (2)fw, lw, n 52732 Chute Rotator Gear...
-
Page 20: Blower Hydraulic
Loader Blower Hydraulic Rotator Motor Fan Motor Valve Block Auger Motor Item # Part # Description 66 Qty 76 Qty 86 Qty Folder Notes S:\SOLIDWORKS\SOLIDWORKS_ELO\SNOW DIMENSIONS ARE IN INCHES TOLERANCES NON SPECIFIED: FRACTIONAL 1/64 DATE DRAWN October-14-15 10:28:35 AM BEND 33641 Main Tractor Hose TWO PLACE DECIMAL... -
Page 21: Hydraulic Deflector
Hydraulic Deflector Parts Item# Part# Description Qty. 52766 Hydraulic cylinder 2 1/2 x 8 34652 Long Deflector Hose 2501-0606 Hyd. Adapter 34651 Short Deflector Hose 6400-0606 Hyd. Adapter Note: Abbreviations used OL - Obtain Locally c/w - Complete With lw- Lockwasher fw - Flatwasher n - Nut ln - Locknut... - Page 22 Valve Wires Blower Wiring Diagram...
- Page 23 Hand Controller Wires Controller Wiring Diagram 33313 Blower.SLDASM Item # Part # Description 52771 Controller Extention Wire 52739 Controller Motor 52772 Battery Cable Extention 52743 Battery Wire 52769 Battery Clamps Fan Motor...
- Page 24 Loader Adapter Alternative Attachments Blank Adapter 33339 Skid Steer Adapter 24150 EURO Adapter 51367...
-
Page 26: Maintenance
Maintenance Daily (or for each use) • Inspect the main hydraulic lines for signs of wear and abrasion. • Check Oil Level in Reservoir. • Inspect Hydraulic Couplers for connections. • Inspect electrical connections. • Check Auger Drive Chain tension •... - Page 28 MK Martin Enterprise Inc. 3950 Steffl er Rd Elmira, ON, Canada N3B 2Z3 Tel: 519-664-2752 Toll Free: 1-855-664-2752 Fax: 519-664-3695 E-mail: sales@mkmartin.ca www.mkmartin.ca...
