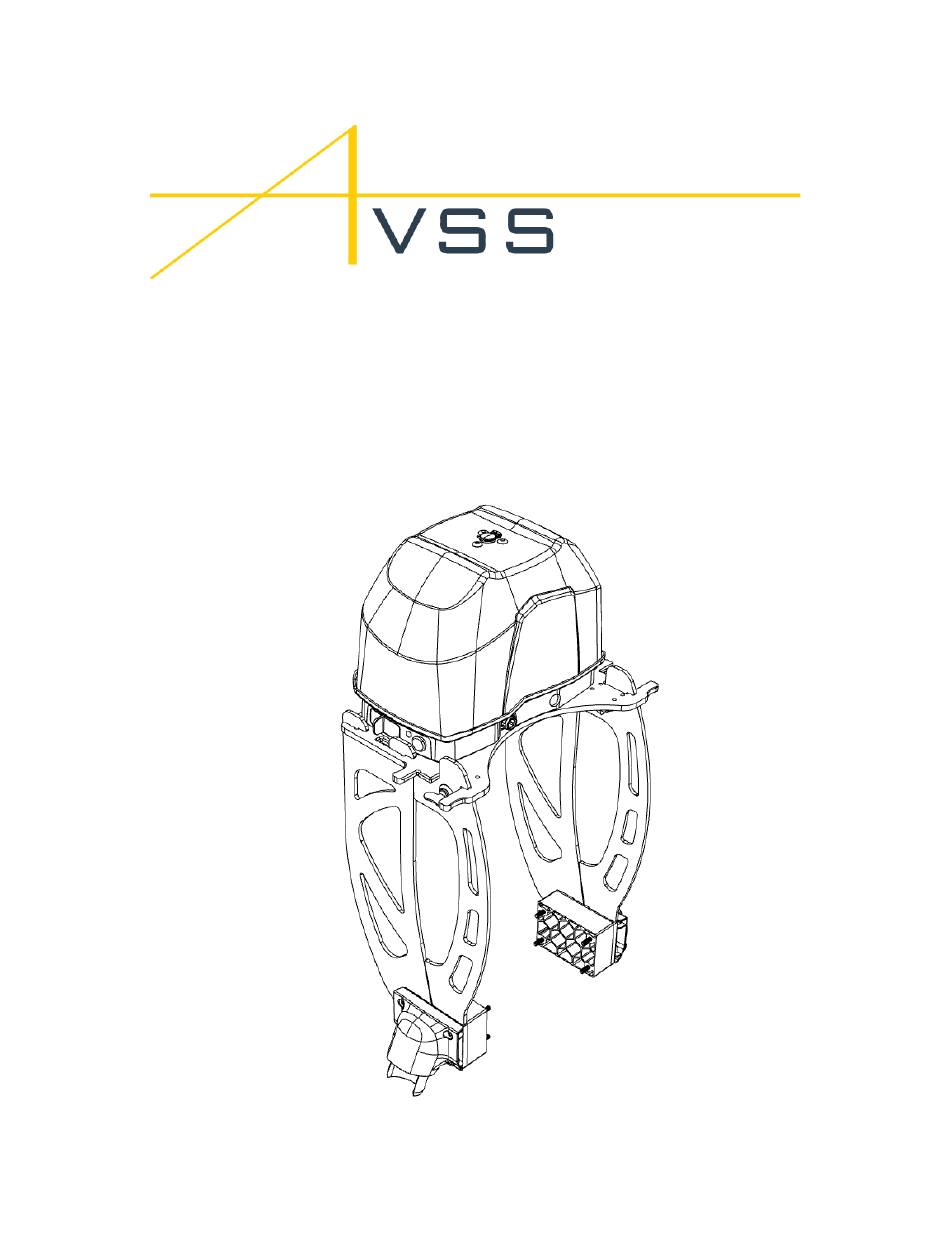

PRS-M300 for DJI M300 RTK

Version 1.5

Table of Contents

Need help?

Do you have a question about the PRS-M300 and is the answer not in the manual?

Questions and answers

Summary of Contents for AVSS PRS-M300

Page 2: Using This Manual
PRS-M300 USER MANUAL FOR DJI M300 RTK Using this Manual 1. Revision Notes Revision # Date Revision Description November 1 Initial Internal Release 2020 ASTM Revision February 26 Updated FTS through OSDK 2021 Updated Specifications Updated Attachment Bracket Product Description...
Page 3: Table Of Contents
PRS-M300 USER MANUAL FOR DJI M300 RTK Using this Manual __________________________________________________________________ 2 Revision Notes _______________________________________________________________ 2 Legends _____________________________________________________________________ 2 Disclaimer _________________________________________________________________________ 5 Terms, Acronyms, & Abbreviations ___________________________________________________ 6 Safety Instructions _________________________________________________________________ 7 Limitations ________________________________________________________________________ 8 Operational & Environmental Conditions ________________________________________ 8...
Page 4 PRS-M300 USER MANUAL FOR DJI M300 RTK Status Indications _________________________________________________________________ 38 PRS-M300 Indications _______________________________________________________ 38 Manual Triggering Device Status Indication ____________________________________ 39 Manual Triggering Device Synchronization _____________________________________ 39 Operating Procedures _____________________________________________________________ 40 Hangar Checklist ____________________________________________________________ 40 Installation Checklist _________________________________________________________ 40...
Page 5: Disclaimer
M300 RTK. The use of AVSS products is at the risk of the user. • Do not store the PRS-M300 and/or any of the associated parts and accessories in any extreme cold, hot or humid environments. o Less than 3 months: -20° to +45° C o More than 3 months: +22°...
Page 6: Terms, Acronyms, & Abbreviations
When referring to a DJI M300 RTK, other relevant terms include Aircraft, Drone RPAS, sUAS, UAS, and UAV. The owner of the PRS-M300 who had purchased the system from an End-User AVSS Authorized Dealer. Flight Termination System is a device that will disable the propulsion system of the DJI M300 RTK.
Page 7: Safety Instructions
The PRS-M300 requires enough battery power to operate. Although the PRS-M300 can draw power from the DJI M300 RTK as a backup if Low Battery the battery becomes low during a flight, this feature is not to be used as a substitute for charging the battery prior to flight.
Page 8: Limitations
ZONES AND THE CONSEQUENCES IN THEIR RISK ASSESSMENT. LEAVING THE PRS-M300 ON FOR A PROLONGED PERIOD BEFORE TAKING OFF CAN CAUSE IT TO ARM IF ENVIRONMENTAL CONDITIONS ARE CHANGING (E.G., BAROMETER DRIFT). IF THE PRS-M300 IS INVOLVED IN A MAJOR CRASH, DO NOT REUSE PRS-M300 WITHOUT CONTACTING AVSS’S...
Page 9: Prs-M300 Overview
Assistant software. 2. General Use To use the PRS-M300 for a flight, the DJI M300 RTK can be unpacked from its case and set up according to DJI’s user manual. Once the aircraft is in its flight configuration, the AVSS bracket can be mounted to the DJI M300 RTK.
Page 10: Features, Specifications, Testing, & Compatibility
PRS-M300 USER MANUAL FOR DJI M300 RTK Features, Specifications, Testing, & Compatibility The PRS-M300 has been designed to easily integrate with DJI Matrice 300 RTK DJI M300 RTK. The attachment bracket secures the PRS-M300 without interfering with onboard sensors and can be easily removed for transport. The system includes an electronic module to power the Parachute Pod™...
Page 11: Specifications
PRS-M300 USER MANUAL FOR DJI M300 RTK 2. Specifications OVERVIEW Total Weight 922 grams (2.03 lbs) Average Descent Rate 3.24 m/s (10.62 fps) (7.70 kg) Average Descent Rate 3.54 m/s (11.61 fps) (9.20 kg) Average Impact Energy 40.30 Joules (29.80 ft-lb) (7.70 kg)
Page 12: Payloads
3. Payloads AVSS’s PRS-M300 typically works with the various DJI M300 RTK payload options that are provided by DJI and that have been developed to integrate through the DJI OSDK Port. As of 2020-10-01, the following payload combinations, if using the user manual data located on DJI’s and payload partners’...
Page 13: Warranty
DJI M300 RTK Text File ▪ • If the PRS-M300 is deemed void, the cost of analysis and shipping shall be the responsibility of the end-user. Nothing herein contained shall be construed to exclude or limit any warranty, express or implied by law.
Page 14: What's In The Box
PRS-M300 USER MANUAL FOR DJI M300 RTK What’s in the Box: 1. Parts Included A. Parachute Pod™ G. FTS OSDK Module B. FTS Connector H. HR30 FTS Cable Manual Trigger Device with C. Electronic Module Battery D. Top Plate Allen Keys E.
Page 15: System Overview
PRS-M300 USER MANUAL FOR DJI M300 RTK System Overview 1. Parachute Recovery System A. Parachute Pod™ F. Firing Pin Receptacles B. Electronic Module G. Orientation Key C. MicroSD Dust Cap for the H. Battery Door USB/microSD Card Slot D. Status LED Electrical Contacts E.
Page 16: Attachment Bracket
PRS-M300 USER MANUAL FOR DJI M300 RTK 2. Attachment Bracket A. Top Plate B. Quarter Turns (2) C. Side Plates (2) D. Landing Gear Screws (8) E. Bracket Leg Connectors © 2021 AVSS – ALL RIGHTS RESERVED...
Page 17: Flight Termination System - Through Osdk
PRS-M300 USER MANUAL FOR DJI M300 RTK 3. Flight Termination System – Through OSDK D. HR30 FTS Cable to A. FTS OSDK Module Electronic Module Connector B. HR30 FTS Cable Female E. HR30 FTS Cable to FTS Connector Connector C. USB-C Connector to DJI M300 RTK OSDK Port ©...
Page 18: Manual Triggering Device
PRS-M300 USER MANUAL FOR DJI M300 RTK 4. Manual Triggering Device A. Triggering Button F. Status LED B. Antenna G. Power Button C. Lanyard Attachment H. Sync Button D. Belt Clip USB-C Charging Port E. Arm Button © 2021 AVSS – ALL RIGHTS RESERVED...
Page 19: Installation
PRS-M300 USER MANUAL FOR DJI M300 RTK Installation ENSURE BOTH THE PRS-M300 AND DJI M300 RTK ARE OFF DURING INSTALLATION UNLESS REQUIRED FOR COMPLETING THE STEP. 1. Electronic Module Turning on the PRS-M300 Turn on To turn on PRS-M300, press on the...
Page 20: Parachute Pod
Step Tighten Using the M5 hex key, tighten the bolt. Bolt Step Place the PRS-M300 on a flat surface and turn Power On Check that the continuity light on the side of Step Check the PRS-M300 is lit. This indicates that the...
Page 21: Attachment Bracket
PRS-M300 USER MANUAL FOR DJI M300 RTK 3. Attachment Bracket First Time Use Bracket Leg Connectors for the DJI M300 RTK Unscrew and remove the M300 landing gear. Then, align the landing gear spacers to the Attachment bottom of the side brackets.
Page 22 PRS-M300 USER MANUAL FOR DJI M300 RTK Ongoing Use Installing the Attachment Bracket Before Use After completing the first time Spacers install steps, the DJI M300 RTK Step 1 Prepared and PRS-M300 are ready to be attached for flight. Standing behind the drone, take...
Page 23 PRS-M300 USER MANUAL FOR DJI M300 RTK Rotate the plate towards the back Rear Side of the DJI M300 RTK until the hook Step 5 Plates latches into the block. A click should be felt/heard. Take the front side plate and...
Page 24 PRS-M300 USER MANUAL FOR DJI M300 RTK Ensure that both side brackets are fully inserted. The flat surface on Step 10 Top Plate which the top plate will rest should be flat. Bend front side plates Step 11 Top Plate outwards as shown.
Page 25 PRS-M300 USER MANUAL FOR DJI M300 RTK Push the top plate towards the Step 15 Top Plate back of the drone such that it locks with the hooks on the side plates. Push the front side plate inwards so that it rests against the top...
Page 26: Flight Termination System Firmware Configuration
PRS-M300 USER MANUAL FOR DJI M300 RTK 4. Flight Termination System Firmware Configuration Ongoing Use Connecting PRS-M300 FTS OSDK Module. Open the DJI Step M300 RTK Open OSDK port. OSDK Port Orient the Align the PRS-M300 FTS OSDK Step PRS-M300...
Page 27 PRS-M300 USER MANUAL FOR DJI M300 RTK First Time Use & After Firmware Updates The PRS-M300 uses the DJI M300 RTK Onboard SDK (OSDK) to instigate flight termination. The flight termination system shuts off the DJI M300 RTK motors prior to the deployment of the Parachute Pod™.
Page 28 PRS-M300 USER MANUAL FOR DJI M300 RTK Step Launch DJI Launch DJI Assistant 2 (Enterprise). Assistant 2 Log in to Step Log in to your DJI Account. If you do not have an account, you will need to create one.
Page 29 PRS-M300 USER MANUAL FOR DJI M300 RTK Open the settings tab in the top right of the window. Configure Step Configure the data authorization settings to allow for data authorization of Settings the Onboard SDK APP ID. Turn on the authorizations as shown.
Page 30 PRS-M300 USER MANUAL FOR DJI M300 RTK Select the “Onboard SDK” tab from the left side menu. In this new window, complete the following: Configure • Select “Enable API Control” via checkbox on the top left. Step DJI M300 • Set “Baudrate” to 230400 via dropdown list.
Page 31 PRS-M300 USER MANUAL FOR DJI M300 RTK Turn Off Step PRS and Turn off the PRS. Once complete, turn off the DJI M300 RTK. Drone Step Close DJI Once the PRS and DJI M300 RTK are off, close DJI Assistant.
Page 32 PRS-M300 USER MANUAL FOR DJI M300 RTK Reconnect Step to Drone in Once again, the DJI Assistant 2 app will recognize that the DJI M300 RTK is available. Click on the icon to connect to the drone. Assistant 2 Return to the Onboard SDK tab using the left side menu. Verify that the correct settings were saved.
Page 33 PRS-M300 USER MANUAL FOR DJI M300 RTK Step Cycle PRS Turn the PRS OFF. Wait a moment and then turn the PRS back Power ON. After a moment, the LED will blink purple and blue. Turn the PRS OFF. Wait a moment and then turn the PRS back...
Page 34: Battery & Charging
1. Battery Safety • The PRS-M300 is equipped with an independent 1S LiPO battery to supply power. • The PRS-M300 shall be charged before use and only by an AVSS supplied or approved USB-C Cable. • The batteries nominal voltage is 3.7 •...
Page 35: Changing Electronic Module Battery
PRS-M300 USER MANUAL FOR DJI M300 RTK 3. Changing Electronic Module Battery Replacing PRS-M300 Battery Using the knob, turn the knobs Turn the Step 1 open battery Battery Knobs compartment door. Open Battery Using the knob, turn and open Step 2 Door the battery compartment door.
Page 36: Firmware & Sd Card
PRS-M300 USER MANUAL FOR DJI M300 RTK Firmware & SD Card 1. MicroSD Card Removing and/or Inserting the SD Card Pull charging port cover to open it. The tab will open Step 1 Open Door with a hinged door that...
Page 37: Firmware Updates
PRS-M300 USER MANUAL FOR DJI M300 RTK 2. Firmware Updates Firmware updates should be performed when a new version is released by AVSS. Check the AVSS website regularly for firmware updates. Updating the Firmware Download the firmware from Download the bottom of the page on...
Page 38: Status Indications
The PRS-M300 status, also referenced as “Heartbeat” is indicated using a combination of LED color and buzzer signals. The PRS-M300 Status LED is located next to the ON/OFF switch. The LED color on PRS-M300 and manual triggering device indicates the stage of the flight.
Page 39: Manual Triggering Device Status Indication
2. Manual Triggering Device Status Indication The LED on the manual triggering device indicates its status for 2 seconds and blinks the status of the PRS-M300 so the pilot can monitor the status of the PRS-M300 in the sky conveniently.
Page 40: Operating Procedures
 Ensure that the PRS-M300 and bracket are not damaged  Insert Attachment Bracket legs, two per side, to the bracket leg connectors  Ensure that the PRS-M300 top plate and main system are securely attach  Verify that bracket is secure to the DJI M300 RTK ...
Page 41: In-Flight Checklist
 Disarm manual triggering device  Turn off the PRS-M300 once it has landed  After the PRS-M300 is off, turn off the DJI M300 RTK 6. Post-Flight Checklist (No Deployment)  Ensure PRS-M300 is disarmed before approaching the DJI M300 RTK ...
Page 42: Maintenance & Care
The PRS- M300’s Parachute Pod™ is intended as a single-use item that can be quickly removed and replaced in the field; however, the PRS-M300 must be repacked in one (1) year intervals. 1. Post-Flight (Monthly) 1.
Page 43: Frequently Asked Questions
PRS-M300 USER MANUAL FOR DJI M300 RTK Frequently Asked Questions Go to https://www.avss.co/products/product- How do I register my PRS-M300? registration/ When does the ATS Arm? 43 meters When does the Manual Triggering By the pilot initializing the manual triggering Device Arm? device through the “arm”...
Page 44: Parachute Pod™ Deployment Procedures
• If you are purchasing a new Parachute Pod™, AVSS will send you a purchase link for a replacement Parachute Pod™, plus deposit. • Once fully paid, AVSS will then send you the replacement Parachute Pod™.
Page 45: Customer Support
PRS-M300 USER MANUAL FOR DJI M300 RTK Customer Support Email: customersupport@avss.co Telephone: Monday to Friday, excluding holidays 10:00 am Est to 4:00 pm Est +1-844-852-0665 © 2021 AVSS – ALL RIGHTS RESERVED...
Page 46: Appendix A: Dji M300 Rtk & Payload References
2020-09-01 https://www.dji.com/ca/zenmuse-h20-series/specs DJI H20T 2020-09-01 https://terra-1- U10 Methane 2019-10-09 g.djicdn.com/851d20f7b9f64838a34cd02351370894/others/E N-a5_U10%20Gas%20Detector_en_format_191009.pdf https://terra-1- Wingsland Z15 2019-09-16 g.djicdn.com/851d20f7b9f64838a34cd02351370894/others/Z 15_Spotlight_en.pdf https://dl.djicdn.com/downloads/zenmuse_xt/en/Zenmuse_XT_ Zenmuse XT 2016-07-11 User_Manual_V1.2_en_0708.pdf https://dl.djicdn.com/downloads/Zenmuse%20XT%202/Zenmu Zenmuse XT 2 2018-05-11 se%20XT%202%20User%20Manual%20v1.0_.pdf https://dl.djicdn.com/downloads/zenmuse_z30/20180810/Z30 Zenmuse Z30 2018-10-08 _User_Manual_EN.pdf © 2021 AVSS – ALL RIGHTS RESERVED...
