Summary of Contents for Aqua 9+ AQ9-50GPD

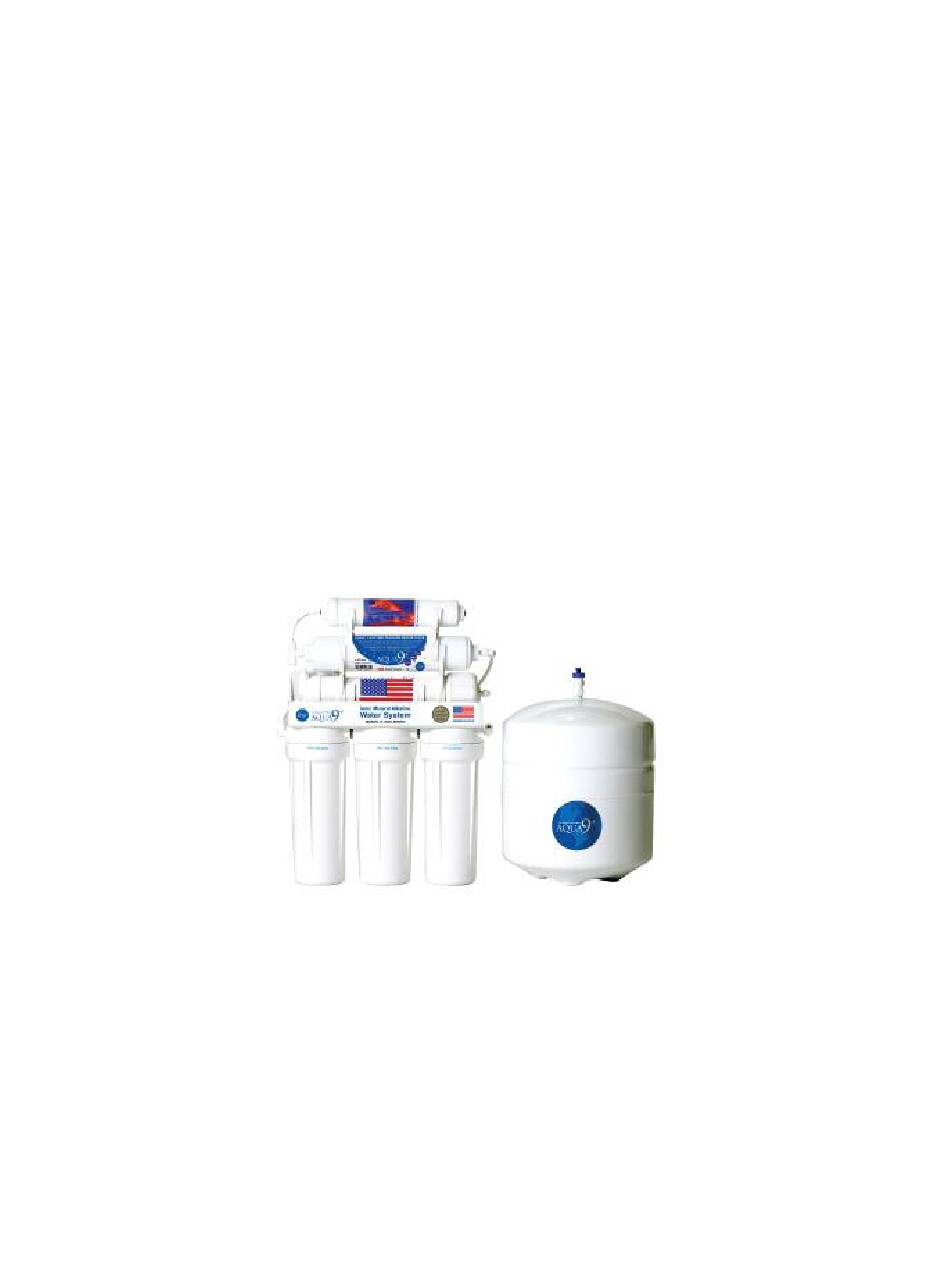

- Page 1 INSTALLATION MANUAL Natural Ionic Calcium Alkaline Water System (AQ9-50GPD, AQ9-200GPD, AQ9-300GPD) MADE IN THE U.S.A. www.aquanineplus.com...
- Page 2 Installation Manual :: Aqua 9+ Natural Ionic Calcium Water System Natural Ionic Calcium Water System (NICA) This water treatment system works with a process called reverse osmosis Filtration Type: Reverse Osmosis Filtration Method: Sediment Filter, Pre Carbon Filter, Post Carbon Filter, Membrane, Aqua 9+ Ceramic Filter, Water Storage Tank, TCR Filter Aqua 9+ Natural Ionic Calcium Alkaline Reverse Osmosis System is one of the most convenient and economical methods of reducing dissolved solids in potable drinking water.
- Page 3 Installation Manual :: Aqua 9+ Natural Ionic Calcium Water System Stage 8: TCR Filter In-line GAC filter is used to remove dissolved gases, bad taste and odor from the water kept in the stor- age tank. This is the final treatment before drinking the natural ionic calcium alkaline water. Stage 9: Ultra Violet Light(optional) UV light kills 99.99% of bacteria and viruses in the water before the final drinking water deliver to the faucet.
- Page 4 Installation Manual :: Aqua 9+ Natural Ionic Calcium Water System Example of typical feed water installation Figure below shows the system interconnection. RED LINE: Connect from system to feed adapter. BLUE LINE: Connect from system onto threaded faucet shank with compression nut supplied with faucet. YELLOW LINE: Connect from system to storage tank.
-
Page 5: Drain Clamp Installation
Installation Manual :: Aqua 9+ Natural Ionic Calcium Water System BOOSTER PUMP INSTALL(OPTIONAL) UV LIGHT ULTRAL VIOLET LIGHT(OPTIONAL) The UV Light can be installed between the post filter and the faucet. DRAIN CLAMP INSTALLATION 1. The drain clamp should be installed above the trap and on the vertical or horizontal tailpiece (see figure 2). - Page 6 Installation Manual :: Aqua 9+ Natural Ionic Calcium Water System Mount Drain Saddle on either location Do Not Mount here Figure 2. Drain Clamp Location Drain Tube Drain Tube Yellow Tube from RO Drain Saddle Drain Saddle Figure 3. Drain Clamp Drill Figure 4.
-
Page 7: Mounting The Faucet
Installation Manual :: Aqua 9+ Natural Ionic Calcium Water System DRILLING FAUCET HOLE IN SINK Stainless Steel Sinks & Porcelain Sinks: 1. Drilling through a stainless steel sinks can be achieved by marking a center punch & drilling a 3/8” guide hole. 2. -
Page 8: Before You Start
Installation Manual :: Aqua 9+ Natural Ionic Calcium Water System BEFORE YOU START Ensure there is a pressure regulator installed and is in proper working order before pro- ceeding. Inlet water pressure should be subject to between 40 to75 PSI. You should contact a licensed plumber if you are not able to check this on your own . -
Page 9: Feed Water Installation
Installation Manual :: Aqua 9+ Natural Ionic Calcium Water System FEED WATER INSTALLATION 1. The feed water assembly consist of a 1/2” Metal adapter. Locate this part in the instal- lation kit. (Note: Teflon tape should be used to prevent leaks) 2. -
Page 10: Recommended Maintenance
Installation Manual :: Aqua 9+ Natural Ionic Calcium Water System RECOMMENDED MAINTENANCE 1. The pre-filters should be maintained regularly. The snow white pre-filter should be changed when the outside discolors to cardboard brown color and before the inner core discolors. The life of the pre filters depends on the condition of your feed water supply and should be checked at a three month interval until a filter life is established. - Page 11 Installation Manual :: Aqua 9+ Natural Ionic Calcium Water System Nominal Tap Water Rejection Characteristics of Thin Film Composite (TFC) Reverse Osmosis Membrane % Rejection Calcium 93-98 Sodium 92-98 Magnesium 93-98 Potassium 92-96 Manganese 96-98 Iron 96-98 Aluminum 96-98 Copper 96-98 Nickel 96-98...
-
Page 12: Conditions Of Warranty
One Year Limited Warranty Aqua 9+ Beverage Co. Warrants it’s Aqua 9+ Natural Ionic Alkaline Water System to be free from defects in materials and workmanship under normal use for a period of one year from the date of purchase. Aqua 9+ Beverage Co. will repair or replace any part of the system with the exception of filters and membrane.
