Pod Installation Instructions
Installation
All Necessary Safety Items/PPE
•
Utility Knife
•
Two (2) Cordless Drills/Drivers
•
(1) 4-6 ft. Ladder
•
4"+ Long Magnetic Bit Holder
•

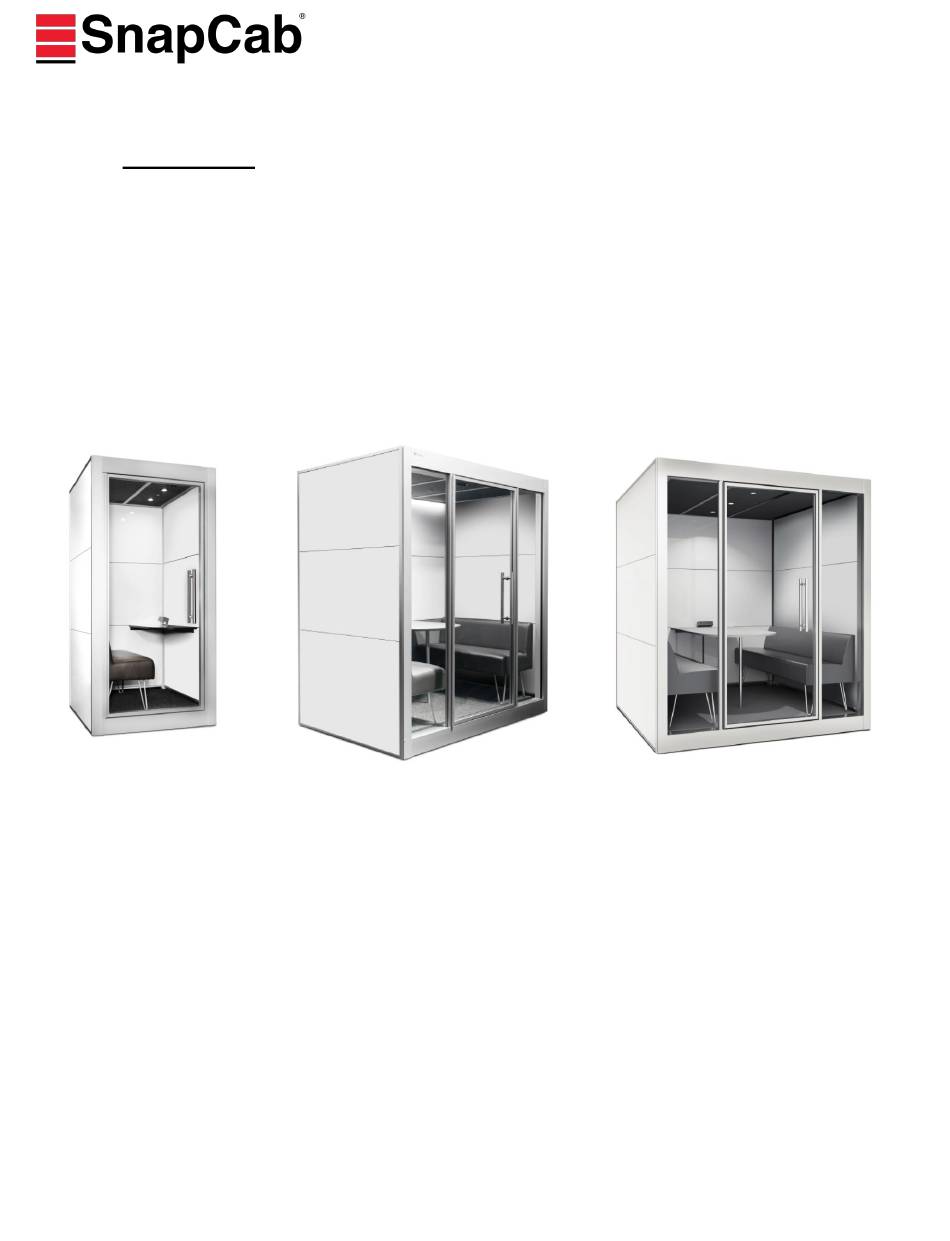

Focus - 43.5" x 46" x 91"
Notes before starting:
Evaluate existing room to ensure there are no obstructions that will interfere with placement of Pod.
Ensure building outlet is near final placement of Pod.
Determine whether or not your Pod can be transported preassembled to its final location.
Keep all material for one Pod together as parts are specific for each Pod.
1199 Pod Installation Instructions
- Tools Needed
Meet 4 - 53" x 77" x 91"
4' Level
•
1/2" Wrench
•
Dead Blow Hammer/Mallet
•
Panel Cart(s)
•
(2) Vacuum Suction Cups with load
•
capacity of 100 lbs. per cup
1 of 10
Call 888-766-7834
Press 0 and ask for Pod
installation assistance

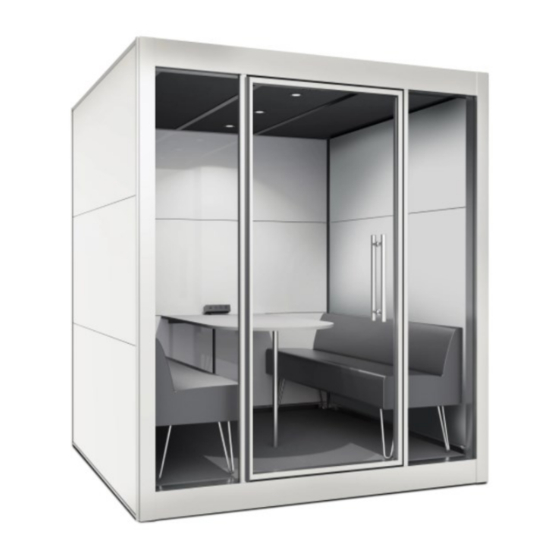

Meet 6 - 77" x 77" x 91"
10/16/2020
Advertisement
Related Manuals for SnapCab Focus
Summary of Contents for SnapCab Focus
- Page 1 • capacity of 100 lbs. per cup Meet 4 - 53” x 77” x 91” Focus - 43.5” x 46” x 91” Meet 6 - 77” x 77” x 91” Notes before starting: Evaluate existing room to ensure there are no obstructions that will interfere with placement of Pod.
- Page 2 YGEN IS BEING ADMINISTERED • DO NOT SIT OR STAND ON TABLE (WEIGHT RATING MAX LOAD FOCUS: 120LBS. MEET 4 AND MEET 6: 200LBS.) WARNING: RISK OF ELECTRIC SHOCK – CONNECT THIS FURNISHING TO A PROPERLY GROUNDED OUTLET ONLY. SEE GROUNDING INSTRUCTIONS.
- Page 3 (6) total 1/4”-20 x 1 1/2” Flange head bolts securing Cano- removes screws from outside Pod. Use provided bit to re- py to Corner Extrusions. In a Focus or Meet 4, the Ceiling move eight (8) #10 x 3/4” Round head square drive screws Canopy is one piece.
- Page 4 Call 888-766-7834 Press 0 and ask for Pod installation assistance 5. Remove Front Frame Assembly from Floor Base: 6. Remove Rear Corner Extrusions from Floor Base: Use provided 9/16” wrench to remove four (4) 3/8 x 1-3/4" Remove two (2) 3/8 x 1-3/4" Serrated Flange Bolts per cor- Serrated Flange bolts holding Front Corner Extrusions to ner, holding each Corner Extrusion to Floor Base.
- Page 5 (rear) labeled panels. 11. Attach middle and top rows of Interior Panels: 12. Place Ceiling Canopy Note a Focus and Meet 4 will have a one piece canopy. A Meet 6 will have a two (2) piece Starting with Red (side) labeled panel, insert bottom canopy.
- Page 6 Secure table mounted electric unit to notch in table by Remove and set aside ceiling tiles. Partially thread in rear tightening clamps. If installing a Focus, install brackets on 1/4"-20 x 1" bolts into T-Nuts from inside Canopy. Lift Ceil- rear and side wall into predrilled holes with #10 x 3/4”...
- Page 7 17. Install Glass Side Lights: Focus—Skip to Step 18 (No Sidelight included) Vertical trim of Glass Sidelight should face toward vertical extrusion. Insert top (black trim) of Glass Sidelight into top channel of Front Frame Assembly. Lower bottom (silver trim) of Glass Sidelight into bottom channel of Front Frame Assembly.
- Page 8 21. Install Exterior Door Pull: 20. Adjust and Secure Glass Sidelight(s): Loosen four set screws holding interior door pull. Remove Focus—Skip to Step 21 screw attached to exterior door pull. From inward side of Meet 4 and Meet 6—From outside Pod take provided...
- Page 9 25. Attach Toe Kick Binders to Corner Extrusions: Install Ceiling Tile without any holes/lights on Red wall (left *If Focus should be fastened to floor, complete steps in side) of ceiling frame. Connect Low Voltage cable from Yel- supplemental instructions "Pod Floor Fastening Instruc- low (rear) wall to Low Voltage Control Unit on ceiling tile.
- Page 10 Clean Pod using provided glass cleaner and paper towels, leave remaining cleaning supplies with end user. Put trash in supplied trash bag and dispose. Take some great in- stalled Pod pictures and email them to Marketing@SnapCab.com. 1199 Pod Installation Instructions 10 of 10 10/16/2020...
