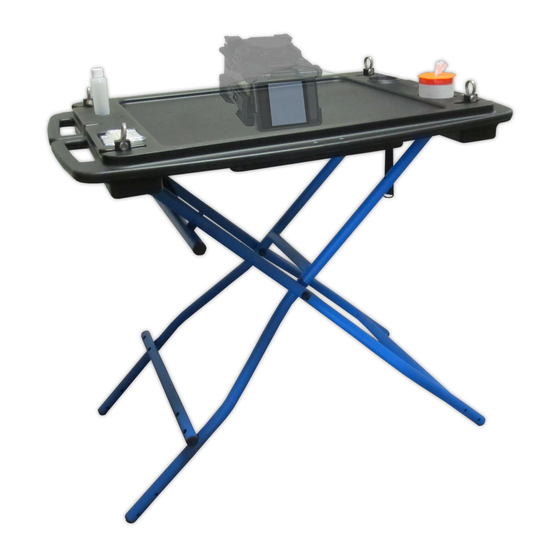

Fiber Optic Splicing Workstation
Assembly Instructions
1) Unpack your new Fiber Optic Splicing Workstation.
2) Open up the blue stand, placing all four legs on the ground. The adjustment
strap across the top is pre-set, allowing the stand to open the distance
necessary for correct table top placement.
3) Align the molded leg
channels
underneath the
table top with the
top of the leg stand.
Fig. B
4) Push down firmly
on all four
corners to lock in
place.
Fig. A
Fig. C
Advertisement
Summary of Contents for U-Teck Fiber Optic Splicing Workstation
- Page 1 Fiber Optic Splicing Workstation Assembly Instructions 1) Unpack your new Fiber Optic Splicing Workstation. 2) Open up the blue stand, placing all four legs on the ground. The adjustment strap across the top is pre-set, allowing the stand to open the distance necessary for correct table top placement.
- Page 2 (Fig. K) Storing the Fiber Optic Splicing Workstation It’s easy to pack up and head out with the Fiber Optic Splicing Workstation. The coated arm should be facing away from the back of 1. Remove the table top your table top and should rest against the wall.
