Summary of Contents for AGROSE ATT-200

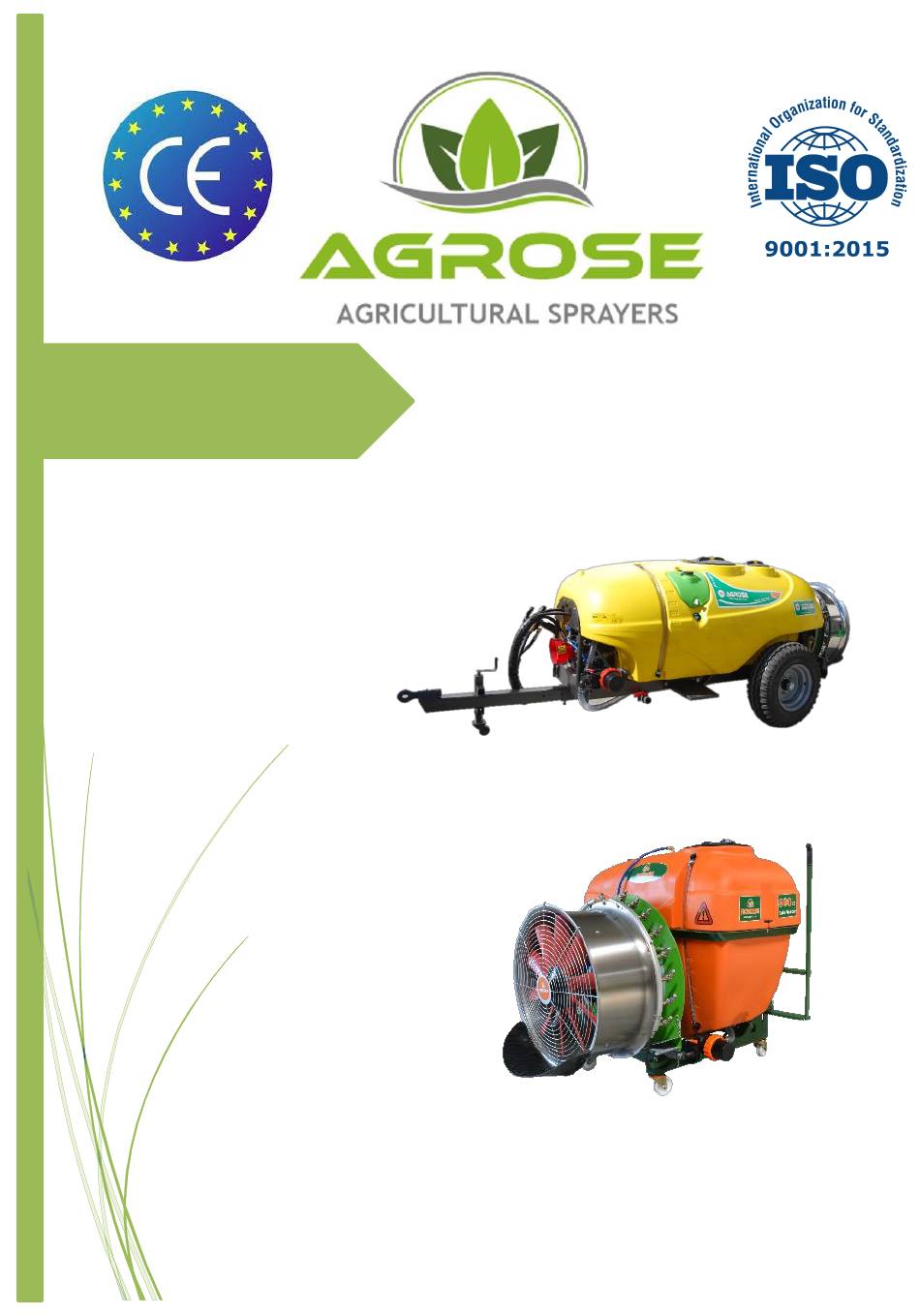

- Page 1 OWNER MANUAL TURBO ATOMIZER (MOUNTED & TRAILED)
- Page 2 Failure to follow safety precautions in this manual an in labels on the product could result in serious injury or death to the operator or bystanders. Keep manual nearby for further reference. If manual is damaged or illegible, contact your AGROSE dealer or AGROSE at the address below for a replacement.
-
Page 3: Table Of Contents
INDEX 1- USING AND KEEPING THE USE AND MAINTENANCE MANUAL………………….. 1.1. COMPOSITION OF THE MANUAL…………………………………………………... 1.2. GUARANTEE……………………………………………………………………………. 1.3. PRODUCT RESPONSIBILITY………………………………………………………... 1.4. WARNING SIGNS IN THE MANUAL AND ON THE MACHINE…………………... 2- SAFETY REGULATIONS AND RESIDUAL RISKS…………………………………….. 2.1. INTENDED USE………………………………………………………………………… 2.2. PROHIBITED USE……………………………………………………………………… 2.3. - Page 4 ………………………………………………………………………………… 13- SPRAYING ……………………………………………… 13.1. DESCRIPTION OF TYPE OF T-JETS ……………………………………………… 14- CALIBRATING AXIAL FAN ATOMIZERS 14.1. CALIBRATING ROBOTİC HEAD / RADİAL CANNON ATOMIZERS …………… …………………………………………………. 14.2. TREATMENTS ON TALL PLANTS ……………………………. 14.3. TREATMENTS ON HERBACEOUS CULTIVATIONS ……………………………………………………………………….. 14.4. HAND LANCES ……………………………………………………………………………...
-
Page 5: 1- Using And Keeping The Use And Maintenance Manual
Improper use: The use the AGROSE machines are designed for is indicated in this manual, any other use is forbidden and makes the guarantee void. -
Page 6: Product Responsibility
Not following the instructions in the manual whether totally or partially. e) Modifications made to the machine that haven’t been authorized by AGROSE. 1.4. WARNING SIGNS IN THE MANUAL AND ON THE MACHINE Below you will find all of the pictograms on the machine, in order to illustrate the warnings, the prohibitions and the correct method of use. -
Page 7: 2- Safety Regulations And Residual Risks
The use of liquid fertilizers in suspension is not allowed, while the use of the same in a solution is possible if requested when the machine is ordered from AGROSE and in any case changing some of the parts described in the handbooks of the regulator, such as the manometer (stainless steel), the nozzles (large diameter ceramic) and eliminating the fine mesh filters to prevent blockages. -
Page 8: Prohibited Use
2.2. PROHIBITED USE Using the machine with the following products is strictly forbidden: Paints of any kind and type Solvents or thinners for paints of any kind and type Combustibles or lubricants of any kind and type ... -
Page 9: Recommendations
Follow the instructions in this manual for the use and maintenance of the frame, tank, multiplier, turbo atomizer groups and robotic head / radial cannon. b) Please contact the agent in your zone, the nearest authorized workshop or AGROSE directly for any repairs the user feels they aren’t capable of performing alone. -
Page 10: Characteristics And Specifications
The axial atomizers produce a mixed spray, breaking the drops with the pressure and the speed of the air produced by the fan. These atomizers produced by AGROSE are identified by the CE plate bearing one of the marks indicated in the tables of the allowed fittings. -
Page 11: Tables Of Fittings Allowed

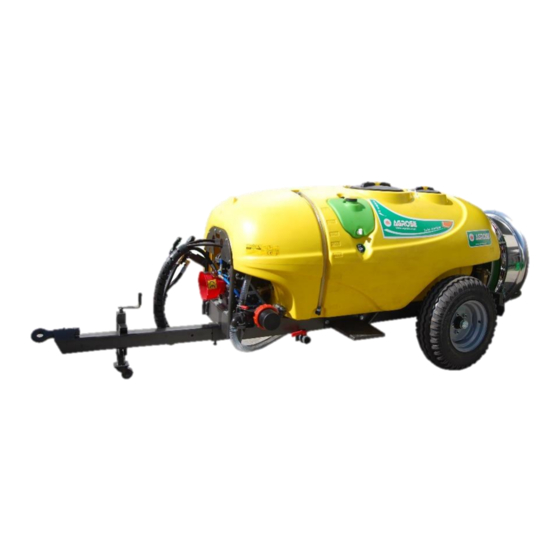

Other fittings or setups of basic components and / or optionals should be considered unsafe and therefore are not covered by the guarantee and aren’t AGROSE’s responsibility. The same goes for fittings realised with components or accessories that aren’t original AGROSE parts. STANDARDS OF REFERENCE:... - Page 12 TRAILED TYPE TURBO ATOMIZERS COMPONENTS PICTURE 2...
- Page 13 MOUNTED TYPE TURBO ATOMIZERS COMPONENTS PICTURE 3...
-
Page 14: 3- User's Instructions
When you receive the machine, check that it is complete and no parts are missing. If there are any damaged parts, inform your local reseller or AGROSE directly in good time. When the machine is delivered, make sure you ask:... -
Page 15: 4- Tractor Coupling
4. TRACTOR COUPLING Refer to the tractor user manual before performing this operation. Turn off the tractor diesel engine, apply the parking brake and remove the starting key from the contact keyhole before coupling the PTO shaft to the tractor PTO. -
Page 16: Cardan Shaft
4.3. CARDAN SHAFT In some models this is supplied on request. The cardan shaft must bear the CE mark. It must always have its own instructions that must be followed scrupulously and it should come with a cover bearing the mark, integrated in every part. -
Page 17: Pump
NOTE: Before cutting the PTO shaft tubes, check for all the possibilities of adjustment on both tractor’s drawbar and sprayer’s tongue. Make sure the hitch pin is mounted with cotter pin. When maneuvering, disengage the PTO and keep the tire from touching the sprayer’s tongue, otherwise this will damage the sprayer’s transmission. -
Page 18: Pressure Regulator
4.6. PRESSURE REGULATOR MTS-401 R MTS-100 BY MTS-50 R-3 PICTURE 10 To use the pressure regulator, follow the instructions in the enclosed handbook scrupulously. The pressure regulator controls all of the most important spraying functions, the thorough knowledge of its functions makes work easier and more precise. - Page 19 MTS-401 CONTROL UNIT 1- Adjust Pressure 2- Manometer 3- Fitting ejector (receiving water) 4- Delivery Water To Boom / Fan On Right Side 5- Delivery Water To Boom/Fan On left 6-Side Delivery Water To Boom/Fan On Left Side 7- Output MTS-50R- 3 CONTROL UNIT 1-On / Off 2-Adjust Pressure...
-
Page 20: 5- Filling The Tank
This reading is precise if the tank is on flat ground; the actual total capacity coincides with the highest number. All the filling systems fitted by Agrose on their production machines or on request are antipollution and stop the liquid overflowing out of the tank. -
Page 21: Manual Premixing
To mix the product in the tank proceed as follows: a) High-pressure machines from 30 to 60 bar (PICTURE. N° 13A): run the stirrer (or ejector) for roughly 10-15 minutes at the maximum pressure available b) Low pressure machines, max 20 bar With a drilled pipe on the drain, run the pump at roughly 540 RPM with the pressure regulator on drain for at least 10-15 minutes. -
Page 22: 8- Turbo Atomizers Group
8. TURBO ATOMIZERS GROUP All the atomizers have a high speed fan rotor. You must take great care and beware of the effects that this can provoke: such as the aspiration and projection of foreign bodies which, although of a small size, can be very dangerous especially for the eyes and face. -
Page 23: 10- Optional Deflectors And Accessories
10. OPTIONAL DEFLECTORS AND ACCESSORIES The atomizers are fitted with deflectors underneath for the optimal regulation of the airflow towards the zone to be treated. To adjust these, simply pull or push the deflector, positioning it in the desired way. Top deflectors can also be supplied on request to improve the regulation of the air flow towards the lateral zones without dispersing the product upwards. -
Page 24: 13- Spraying
13.SPRAYING 13.1. DESCRIPTION OF TYPE OF T-JETS Various types of jets are fitted; with a single or double head. Generally they have a non-drip diaphragm and are made out of brass, suitable for pressures up to 40 bar, some models are nickel plated. -
Page 25: Calibrating Roboti̇c Head / Radi̇al Cannon Atomizers
TABLE 1 N.B. : Depending on the season the vegetation may be more or less luxuriant; bear this in mind before starting the treatment. If the plants don’t have much foliage you should diminish the quantity of liters per hectare using lower pressures or closing one or more jets of the fan. 14.1. -
Page 26: Hand Lances
We recommend using a table of programmed maintenance to follow in time to keep the atomizer in an efficient working condition. For major and important maintenance jobs we recommend using the normal AGROSE assistance service available from your reseller, (if necessary) replacing parts using original spare parts only. -
Page 27: Routine Maintenance
TABLE 2 TABLE OF PROGRAMMED MAINTENANCE END OF OPERATION 50 H 300 H SEASON Check the level and state of the oil Check the accumulator pressure Check the cuction (hoses, pipes, unions) Check and clean the suction and delivery filters Check the pump fixing feet and screws in general Check the diaphragm and the oil and change if necessary Check the suction /delivery valves... -
Page 28: Lubrication
We recommend having the normal AGROSE assistance service available from our reseller perform any repairs or contact a specialized workshop. During all of the repairs, in particular when welding, the machine and the circuit must be clean of any residues of chemical product. -
Page 29: 18- Demolition And Disposal
The user of the present machine can contact the collection centers instituted by the Local Authorities or the AGROSE Company directly, or request withdrawal by the dealer, in order to carry out correct disposal of the waste... -
Page 30: 19- Allowed Fittings
19. ALLOWED FITTINGS TABLE 3A... - Page 31 ALLOWED FITTINGS TABLE 3B...
-
Page 32: Troubleshooting
20.TROUBLESHOOTING TABLE 4A FAILURE CAUSE REPAIR Pump does not suck enough water or is not working. Valves are not seated well. Check valve seats. Service. The external filter is clogged. Remove external filter cap, clean the filter. Air in the suction line. Tighten the suction hose clamps. - Page 33 The output flowrate is decreasing or pump is noisy. Low oil level. Add oil. Valves are not seated well. There is dirt. Check valve seats. Clean. Service. Water with oil is coming out of the pump or water is One or more diaphragms are torn. (Technical service) Drain out pump oil.
-
Page 35: 23- Warranty Policy
The time taken to remove and re-install a warranted part or component Removal AGROSE (at its option) may request failed parts to be returned to the factory. Any travel time of a service into other brands of sprayers will not be covered by Agrose warranty. Only technician and /or transportation of the AGROSE product to the authorized servicing Dealer for warranty work &Installation... -
Page 36: 24- Warranty Registration
23.WARRANTY REGISTRATION Warranty Registration: The Owner acknowledges that the Owner has read & understood all terms & conditions of the Agrose's warranty policy contained in this manual. The warranty policy will commence upon installation. This Warranty Registration must be completed & signed by both the Owner & the Dealer, & the white copy returned by the Dealer to Agrose. - Page 37 DEALER ............Signature of Dealer Representative: Postcode:...... Dealership Name: (Print) ...................... Phone: ............................Date: ..........Mobile:........Address:..................Email:.........................................
