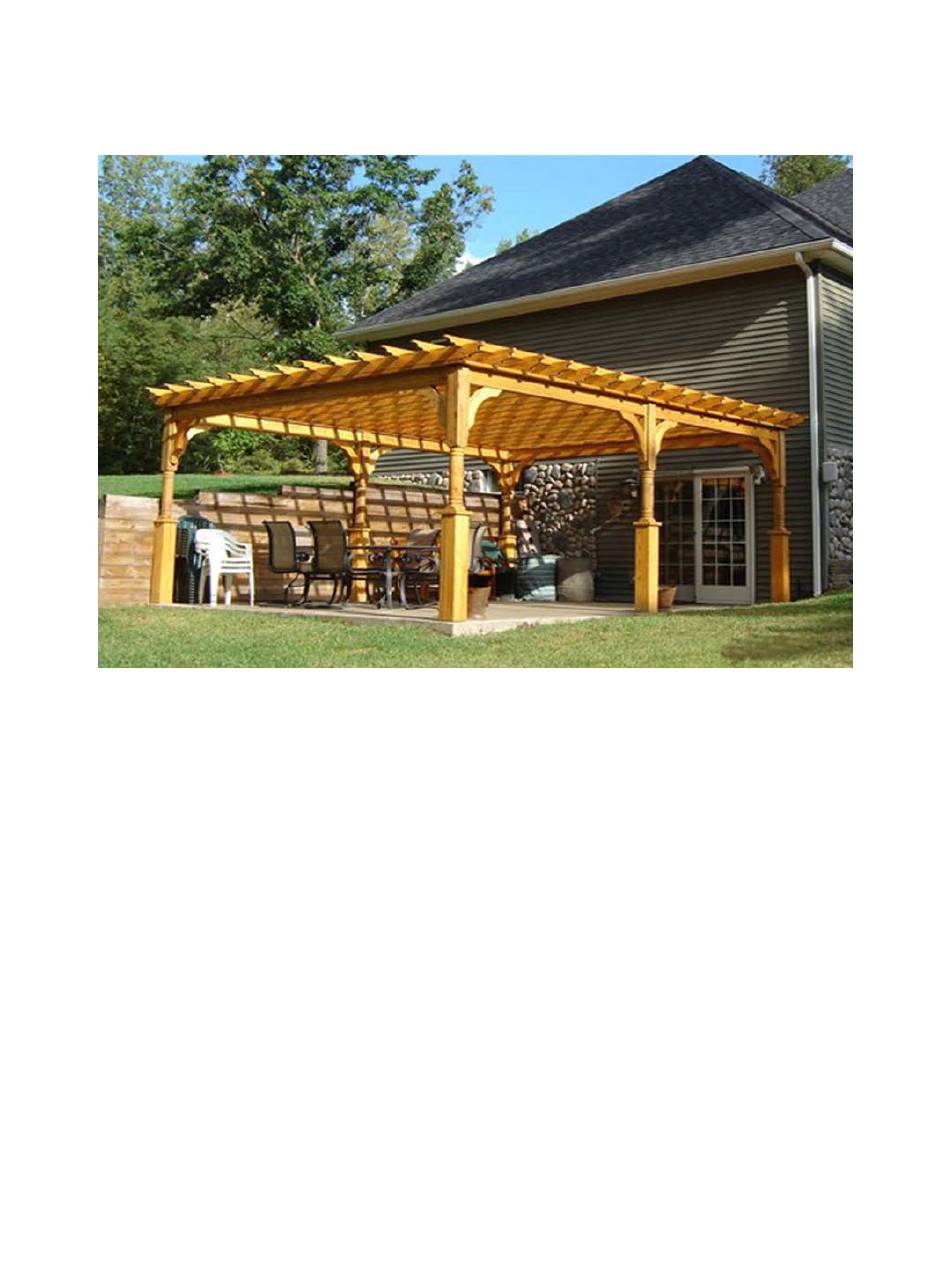

WOOD 4 BEAM DELUXE PERGOLA INSTRUCTIONS
Thank you for purchasing our 4 Beam Deluxe Wood Pergola. Depending on the size of
your pergola, installation can usually be completed in a day.
Consider a few details before starting assembly:
1. The base for the pergola must be solid and level. If installing on a concrete slab or
on concrete footers, they should be level where the posts will rest. If they are not,
it may be necessary to cut the top of the posts so that the tops are all level. Other
than this, no cutting is necessary. If you feel that you will need to make any
additional cuts, please contact us before doing so. Making cuts without calling
first may make installation difficult or impossible or void our warranties.
2. These instructions show connection to asphalt, using a wedge bolt. The same
method can be used with concrete. If connecting to an existing deck, a lag bolt
and deck screws (not included) will replace the wedge bolt.
3. The 4 beam pergola does not give you the ability to alter the location of the posts.
It is important that they are laid out correctly and that you double check for
accuracy before permanently attaching it to your base.
4. There are alternate sections that explain how the runners and top runners attach.
Be sure that you use the correct section.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4 Beam Deluxe Wood Pergola and is the answer not in the manual?

Questions and answers

Summary of Contents for Fifthroom 4 Beam Deluxe Wood Pergola

  • Page 1 WOOD 4 BEAM DELUXE PERGOLA INSTRUCTIONS Thank you for purchasing our 4 Beam Deluxe Wood Pergola. Depending on the size of your pergola, installation can usually be completed in a day. Consider a few details before starting assembly: 1. The base for the pergola must be solid and level. If installing on a concrete slab or on concrete footers, they should be level where the posts will rest.
  • Page 2 SECTION ONE. – POSTS 1. Set the Template: Your pergola is shipped with a wooden template so that you can properly figure the location of the posts. Arrange them so that they are positioned in the approximate location of where your pergola will be.
  • Page 3 5. Post Bases: You will notice that there is a top an bottom of each post. The bottom is square. The bottom of the posts have 45 degree cuts creating a octagon when looking at them from the bottom. There is a top trim for the post base that is made of four 2x2’s that will go onto the posts first, then the 36”...
  • Page 4 1. Install the Beams: Though there is no set order, i t usually works best to install the shorter beams first. This way you can get a feel for how they are done using lighter beams. Lift the beam into place until the top of the beam is flush with the top of the posts, and centered.
  • Page 5 4. You will be joining all the top plate pieces together before attaching them to the top of the posts or to the beam by placing screws on an angle at the corners as shown (through the pre drilled holes). 5.
  • Page 6 SECTION 3 – MAIN RUNNERS The main runners are 2x6’s that have decorative cuts on both ends (unless special order). They have markings on the top for the top runners. NOTE concerning spacing. Generally both the main and top runners are spaced 16” on center unless you order other spacing.
  • Page 7 plate up into the runner on both sides. Only on the two outside runners, will you use screws through the top plate into the runner the full length or the runner – approx. every 24”. NOTE Concerning the markings. Each mark consists of a line and an X the line represents the side of the 2x6 runner, and the x means that the board will be placed to that side of the line.
  • Page 8 4. Once all of the runners are in place and attached with screws, run an additional screw from the inside of pergola, up through the 1½” exposed top plate, and into each runner. You can angle this screw slightly facing toward the outside of the beam.

  • Page 9: Section 5 - Finishing Touches

    SECTION 5 – FINISHING TOUCHES 1. Note that if you have pavers or a brick patio, you may want to fill in the patio components around the post and then slide the post base trim down over the brick to hide cuts.
