Summary of Contents for Deck Superstore Rough-Sawn Pergola System

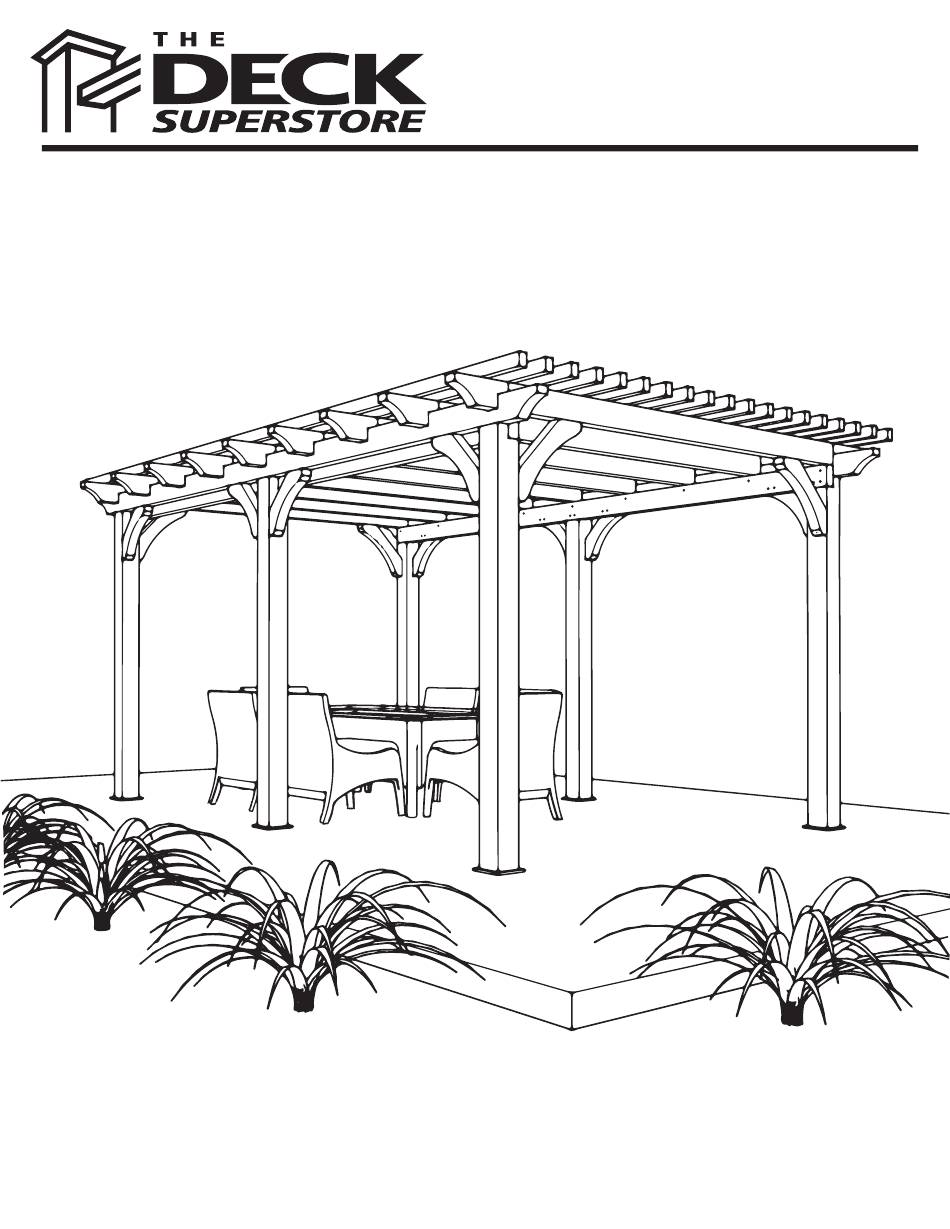

- Page 1 Installation Guide Rough-Sawn Pergola System © 2016 The Deck Superstore...
- Page 2 Sizing & Span Chart Measured at centers of posts: add 2 ’ for total shade coverage Rafter 8’ 10’ 12’ 14’ 16’ Beam # Posts: 4 # Posts: 4 # Posts: 4 # Posts: 4 # Posts: 4 10’ Max rafter spacing: Max rafter spacing: Max rafter spacing: Max rafter spacing:...
- Page 3 Posts Check with your local building department for post foundation and/or ledger requirements. Sturdiest: INSTALL POST ANCHORS DIG post HOLES ONTO EXISTING CONCRETE* ABOUT 2 FEET DEEP Tamped dirt Gravel for drainage Adjust the holes to make the bottoms Measure the differences in elevation, level in elevation.
- Page 4 Inner Beam Inner Beams sit in the notch at the top of the 6x6 posts, and should be flush to the ends of the posts. Attach with two 5” screws at each post. Pre-drilling is not necessary for all of the 5” screws unless going through a knot. 5"...
- Page 5 Outer Beam Outer Beams extend one foot past the Inner Beams on each side and feature decorative cuts to match the Rafter Tails. Attach the Outer Beam to the Inner Beam with one 5” screw at every Rafter location. Offset from the center of your markings so the 10’ screw will not hit it. 5"...
- Page 6 Outer Rafters 10" Construction Screw 1 at each end of each Rafter Pre-drill outer rafters with a 1/4” x 6“ drill bit, then set and attach with 10” screws with the T-40 driver bit. Pre-drill at a slight angle from the rafter into the inner beam.
- Page 7 Braces 5" Construction Screw x4 per Beam Brace 5" Construction Screw x2 per Rafter Brace Rafter Braces are longer Beam Braces are shorter than Beam Braces, so that and rest under the they rest at the same level Outer Beam and next on the bottom as the to the Inner Beam.
- Page 8 Inner Rafters Pre-drill remaining rafters, then set and attach with 10” screws. Pre-drill at a slight angle from the rafter into the inner beam. 10" Construction Screw 1 at each end of each Rafter...
- Page 9 Rafter Tails Rafter Rafter Tail Outer Beam Inner Beam Post Rafter Tails sit on the Outer Beam, aligned with the Rafters. They are pre-drilled through the notch and attach to the Outer Beam with two 5” screws. Do not attach tightly you will need to align them 5"...
- Page 10 Shade Purlins Attach Shade Purlins with a 12” overhang on each side. It helps to measure, calculate spacing, and mark the Shade Purlin locations on the Outer Rafters.It also helps to pre-drill and pre-load the Shade Purlins with 5” screws on the ground before installation.
-
Page 11: Sketch Pad
Sketch Pad... -
Page 12: Order Form
Order Form 303-287-0233 Dimensions: Hardware _________x_________ _______Titan Anchor (Rafter) (Beam) Post Kits (6x6) _______10 “ Screws System Type (Mark One): _______GRK RSS 6” (For Ledgered Systems) Posts: 5” Screw Calculator ______@______’ (see Sizing & Span chart on page 2) x2 per post _______ ______@______’...
