Summary of Contents for SEALVER Wave Boat 575

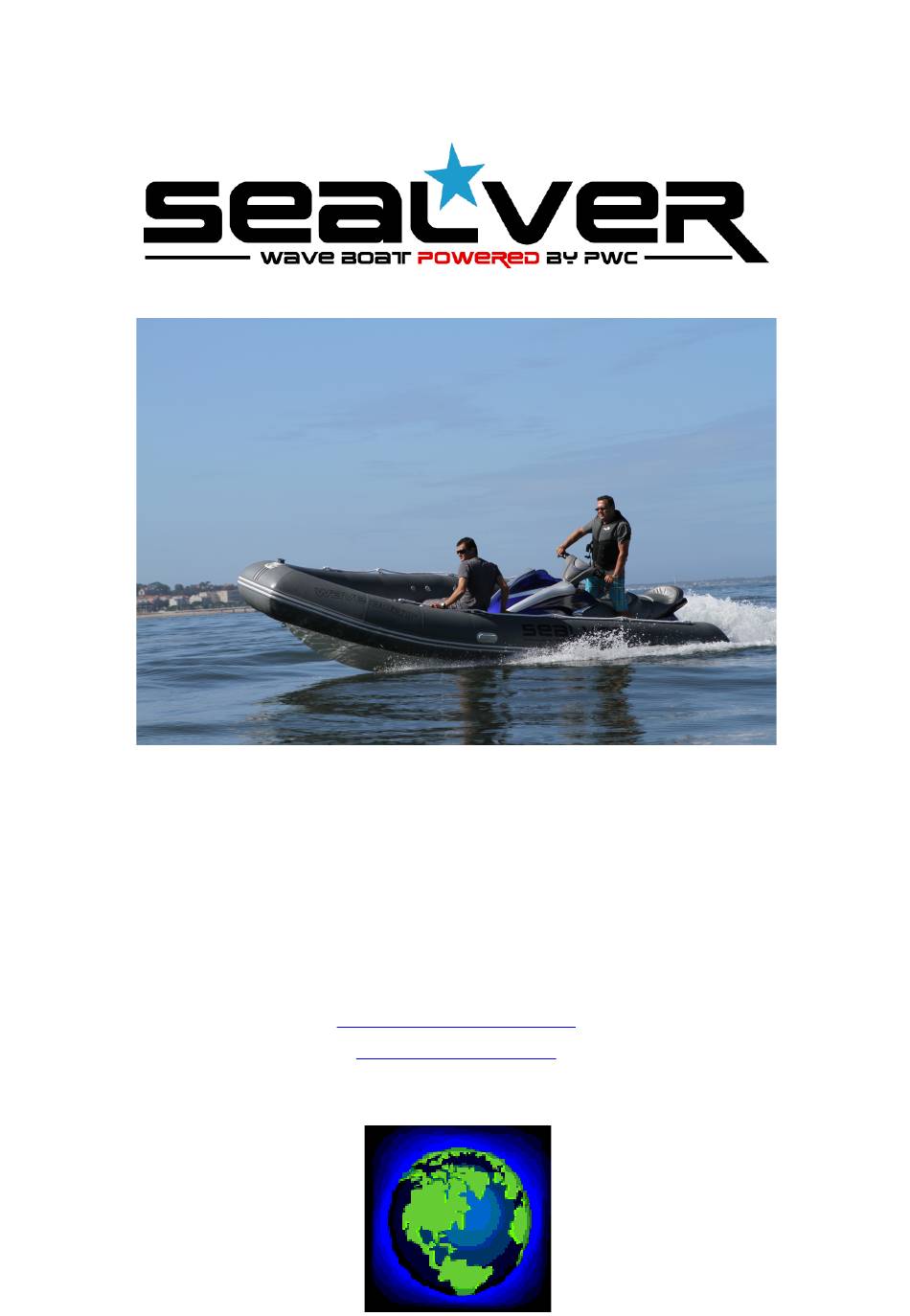

- Page 1 SEALVER® S.A.S. – France contact@sealver.com www.sealver.com N° Siren 518 336 623 – APE : 4764Z-...
- Page 2 Thank you for choosing a SEALVER® product. This manual contains information that you need to know to use and maintain your boat properly. If you have a question regarding use and maintenance of your Wave Boat, please contact the official dealer or distributor in your country.
-
Page 3: Table Of Contents
Contents 1 – General information 1.1 – Identification numbers 1.2 – Design category and conditions of use 2 - Description of the boat 2.1 – Technical features 2.2 – Parts of the boat 2.3 – Pieces provided by your dealer 3 - Use of the boat 3.1 –... -
Page 4: General Information
1 – GENERAL INFORMATION 1.1– Identification number The CIN (formerly HIN) is the Craft Identification Number. The identification number of your boat is affixed on the hull (see drawing). Please note it down; it is a unique number allowing identifying your boat. We invite you to complete on the label below the number of your Wave Boat. -
Page 5: Design Category And Conditions Of Use
Year Model The PWC you will use with your boat has also an identification number. Refer to the Owner Manual of the PWC. 1.2 – Design category and conditions of use Your S EALVER® Wave Boat is EC approved category C as per the Directive 94/25 about leisure boats (modified by the Directive 2003-44), which means that it is designed to go boating in coastal waters, large bays,... -
Page 6: Description Of The Boat
2– DESCRIPTION OF THE BOAT 2. 1 - Technical features Your boat has the following dimensions and weight : Length 575 cm / 18’86’’ Width 240 cm / 7’87’’ Height 140 cm / 4’59’’ Net weight > 250 Kg Approved for 8 people or >600Kg max 600 kg Maximum load: your boat is designed to take on board 8 adults maximum or a maximum weight of... -
Page 7: Parts Of The Boat
Do not exceed the number of people or the authorized maximum load. 2.2 – Parts of the boat (without propulsion) 1- 1 Self-draining Hull in fibber glass resin + 1 self- draining storage places + 1 anchor storage place. 2- Inflatable tubes in PVC or hypalon 3- Rope on the tubes 4- 2 Cleats on the right and left sides 5- 1 fastening kit to hold the PWC... -
Page 8: Use Of The Boat
- that all pieces of equipment are well fitted and there is no part missing (you can check the list on our website www.sealver.com) - The self-draining system functions well. Your boat should be properly attached to the trailer or to the cradle. -
Page 9: General Indications Safety Instructions
If you notice damages due to transport, please inform your dealer. The trailer sold with the Wave Boat has been specially designed to carry both the Wave Boat and the PWC. There is a double system of carpet fittings, the Wave Boat and the PWC must lay on their own fittings, don’t forget to adjust them. - Page 10 3m PWC in a 6m PWC but on a boat, behave as a responsible driver. If the Wave Boat 575 is equipped with a Ti Top, do not forget to tighten it up regularly Beware and respect the laws and the local regulations of the place where you plan to navigate.
- Page 11 Use your common sense and your judgment ability when you navigate. Control the reactions of your boat in the various conditions of navigation that you could meet. Never exceed your own limits or the limits of your boat. Always navigate at safe speed and remain watchful of obstacles and traffic.
- Page 12 Do not modify the Wave Boat nor the PWC : changes could be dangerous, and the guarantee will be cancelled. Do not smoke when you fill in the tank. To fill the petrol tank: Do not smoke while you fill up the tank with petrol and remain away from sparks, flames and any other ignition source.
-
Page 13: Driving The Boat
Do not jump waves. To jump can cause abnormal constraints on the hull and entrainer the appearance of cracks or damage on the hull. 3.3– Driving the boat Refer to the PWC manual, provided by your dealer. Before starting, check that your PWC works perfectly according to the PWC manual. -
Page 14: Maintenance And Wintering
Check the water depth : do not navigate in water lower than 2 feet (60 cm). If you want to separate the PWC and the Wave Boat, make sure that the Wave Boat anchor is correctly casted. If you wish to navigate by night, you need to have navigation lights according... -
Page 15: Wintering
WATER HIGH PRESSURE ENGINE (100 b. max) as it would damage the material. Never use any bleaching agent on the tubes of the wave boat 575 – Wintering Refer to the manual of the PWC which was supplied to you by your dealer. - Page 16 6 months if it is used by a professional for rental purpose. To activate the warrantee, contact the SEALVER® distributor in your country, with the invoice and the faulty piece. Any question about the PWC and its components, contact directly your dealer.
