Summary of Contents for Setec Power DC Quick EV Charger
- Page 1 20kw DC Quick EV Charger OCPP 1.6 Installation Manual...
-
Page 2: Table Of Contents
Table of Contents ..................... INTRODUCTION Features ..............................Applications ....................................IMPORTANT SAFETY AND GROUNDING INSTRUCTIONS Safety and Compliance ..........................Grounding Instructions ..........................................BEFORE INSTALLATION Safety Requirements ..........................Recommended Tools ..........................Important Safety Instructions ......................................GENERAL SPECIFICATIONS ................PRODUCT PRESENTATION .................... -
Page 3: Introduction
INTRODUCTION The DC Quick EV Charger is the top choice to power battery electric vehicles (BEV) today. It is designed for quick charging in retail and commercial parking spaces, fleet charging stations, highway rest areas, etc. The DC Quick EV Charger has network 4G, WIFI, Ethernet communication capability and is able to controlled by mobile phone to check charger’s information through your OCPP... -
Page 4: Important Safety And Grounding Instructions
3.Do not use the DC Quick EV Charger if the chassis, power cord or charging cable are frayed, have broken insulation, or any other signs of damaged. 4.Do not install or use the DC Quick EV Charger if the enclosure is broken, cracked, open or has any other indications of damage. -
Page 5: Before Installation
BEFORE INSTALLATION Safety Requirements Be sure to preview the standard operating procedures (SOP) and ensure local building and electrical codes are reviewed before installing the DC Quick Charger. The DC Quick Charger should be installed by a trained technician according to the instruction manual and local safety regulations. -
Page 6: General Specifications
GENERAL SPECIFICATION Item Specifications Remark Rated voltage 3 phase 380VAC/single phase220VAC Voltage fluctuation range 380V /220V+/- 10% Number of phases Three-phase and four-line +PE Rated frequency 50 or 60 Hz AC Input Frequency fluctuation range +/- 5% Input power factor 0.99 In rated operation Input power... -

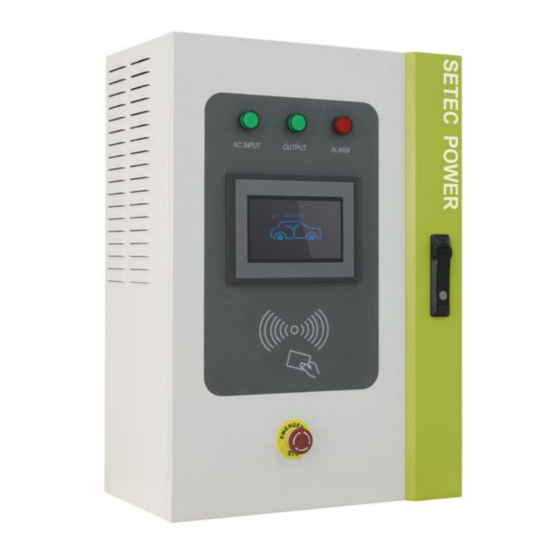

Page 7: Product Presentation
PRODUCT PRESENTATION Item Description Wire hole Charging cable from this wire hole Air hole Forced air cooling through fans and air hole Work indicator light AC power ON-GREEN DC OUTPUT ON-GREEN Fault- Red 10’’ touch screen LCD Touch screen: Operating states such as remaining charging time and failure information, if a failure occurred, can be displayed.Setting parameter, view charging status, etc. -
Page 8: Instruction
INSTALLATION Location ① For the best operating conditions and longest life, take care in selecting an installation site. Operating life and performance will be influenced by charger location. ② Select a dry and well-ventilated location. ③Do not install charging station in locations where it may be exposed to direct sunlight and inclement weather. - Page 9 Wiring Instructions. ③ AC input: Number Terminal Assignment Phase 1 (item L1) Phase 2 (item L2) Phase 3 (item L3) Neutral Ground Noted: 3 phase (380V) AC input cable diameter: 10mm 1 Phase (220V) AC input cable diameter: 25mm...
-
Page 10: Dc Connectors
DC output connector: 1. Chademo Line CHAdeMO function description number definition Grounding wire Charger sequence signal 1 Vehicle charge permission Blue DC output -cathode Brown DC output -anode Connector proximity detection COM1 CAN-H COM2 CAN-L Charger sequence signal 2 Electromagnet&LED - cathode Electromagnet&LED - anode Line number 4 and line number 1 should be connected together,it means EL- connect IM Line number 5 and line number 2 should be connected together,it means EL+ connect CP... -
Page 11: Cable Connections
2. CCS connector ( 4 wires) Line Function description number definition DC output -Positive DC output -Negative Signal Ground 3. Chademo and CCS... -
Page 12: Charging Simple Process
Open the door, 4G card place is in the back of screen. Charging Simple Process Make sure DC quick EV charger has been installed and connection wires correctly according to this manual before operation. Switch on the Mains MCB Switch on the Module MCB Connect the charging connector to the vehicle’s charging port... -
Page 13: Operation
After beep sound, vehicle start to charge with starting sound Operation Front door open ① -Press button under handle and turn handle clockwise in the following order, then Front door will open. ② Switch ON main circuit breaker -Check whether the status LED for AC power is ON. -Check module status. - Page 14 connector on the screen interface accordingly.Tap the RFID card at card read place for several second till there is a beep.Then vehicle starts charging with sound.You can check charging battery’s power status with OCPP 1.6 system. Stop charging When the charging is not finish,and you want to stop charging, please tap RFID card at card reader place to stop charging.
- Page 15 Setting Setting includes: charging point setting, passwords,network (WIFI,4G) and languages and etc. Enter setting interface Firstly, please click SETEC logo, and enter password interface, type password (88888888 in default) to enter into setting interface.
- Page 16 Charging point setting:...
- Page 17 DC setting: You can set max voltage 500V, min voltage 200V, max current 40A, number of ← modules: 6 and click ‘’Save’’. And click back to DC setting interface. DC Rate setting:...
- Page 18 Public setting:...
- Page 19 If you want to use OCPP server, make sure setting your OCPP server URL here and select OCPP valid. History Record:...
- Page 20 AC setting:...
- Page 21 AC Parameter: AC Rate: Change user password:...
- Page 22 Network setting WIFI selection:...
- Page 23 Mobile networks ( insert 4G card): Language selection (English, Russian and Chinese for charging setting):...
- Page 24 Explorer: Upgrade charging APP:...
