JETPRIME Clutch unit Fitting Instructions Manual

For t-max 560

Instruction manual version 190308

Fitting Instructions

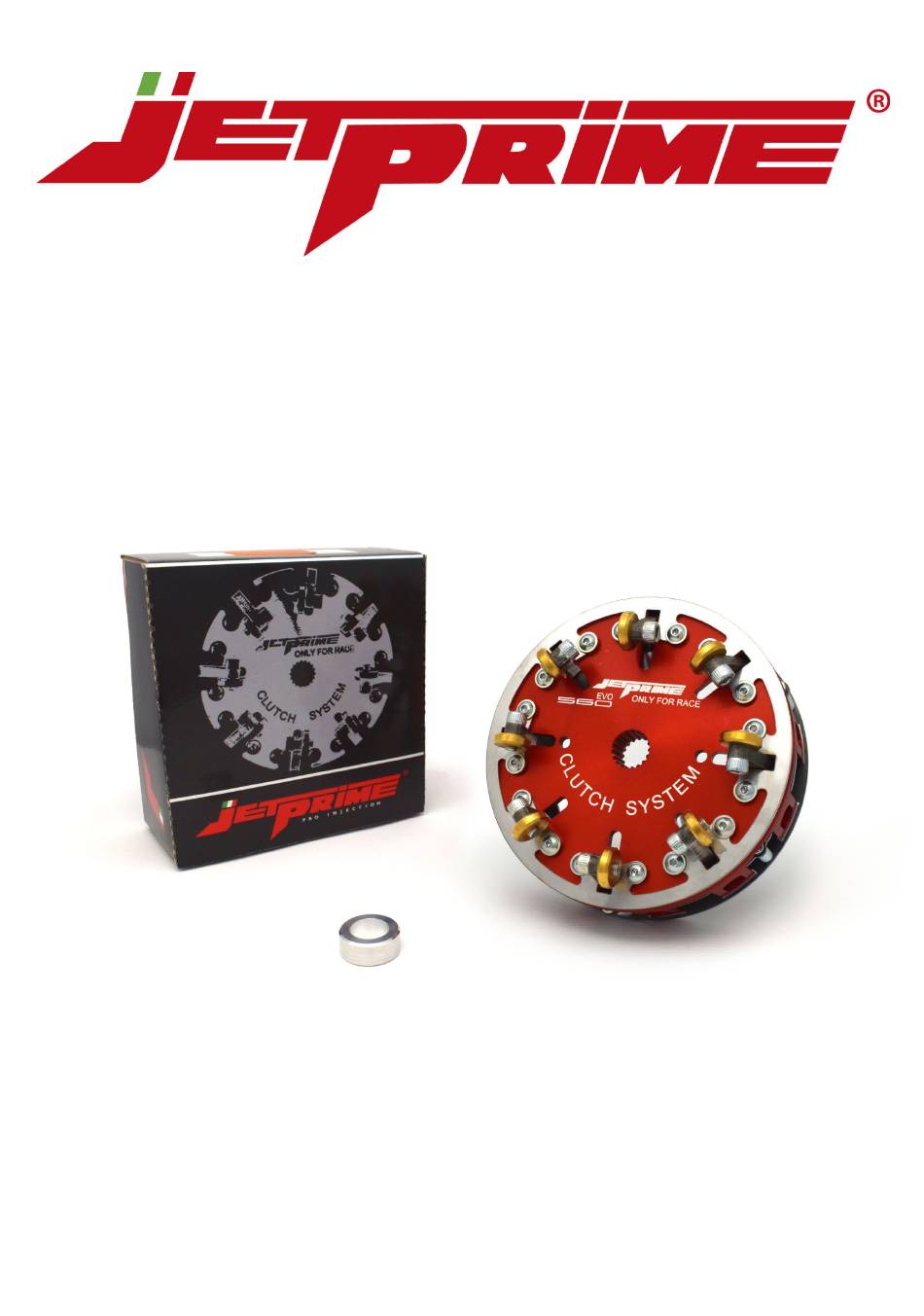

Super light clutch unit for T-MAX 560

This document supports the current version of the Jetprime super light clutch unit and all subsequent

versions until this document is replaced by a new edition.

Jetprime S.r.l. società a socio unico

Sede centrale: Via Eugenio Montale, 1 – 41016 Novi di Modena – Fraz. Rovereto (MO)

Tel: +39 059 672223 – Fax: +39 059 7131226

Email: info@jetprime.it - Web: www.jetprime.it - Online shop: www.jetprimeshop.it

All Jetprime S.r.l. products are dedicated exclusively for sports use.

THANK YOU FOR CHOOSING A JETPRIME PRODUCT

Table of Contents

Need help?

Do you have a question about the Clutch unit and is the answer not in the manual?

Page 1 Fitting Instructions Super light clutch unit for T-MAX 560 This document supports the current version of the Jetprime super light clutch unit and all subsequent versions until this document is replaced by a new edition. Jetprime S.r.l. società a socio unico Sede centrale: Via Eugenio Montale, 1 –...
Page 2 Remove all of the water and oil from the engine and the left hand side crankcase. ● Unscrew the central nut which holds the clutch in place and remove the complete original clutch unit. ● Remove the central hub and gear from the original clutch by unscrewing the central nut. Turn the ●...
Page 3 4 steel discs. The correct sequence for the discs is as shown in the above photo. Please note that the 2 mixed discs should be fitted first with the friction side of the disc facing the Jetprime spring holder disc.
Page 4 Place the springs into the appropriate positions. ● Fit the Jetprime closing disc and the snap ring. ● Remount the complete Jetprime clutch unit onto the Tmax. ● Fit the aluminium spacer onto the pin between the bolt and cover. ●...
Page 5 Instruction manual version 190308 Client Notes...
Page 6 Sede centrale: Via Eugenio Montale, 1 – 41016 Novi di Modena – Fraz. Rovereto (MO) Tel: +39 059 672223 Email: info@jetprime.it - Web: www.jetprime.it - Online shop: www.jetprimeshop.it All Jetprime S.r.l. products are dedicated exclusively for sports use. Jetprime® is a registered trademark. All rights reserved.
