East Coast Garage Doors & Gates Boss Coding Instructions

REMOTE HANDSET CODING INSTRUCTIONS

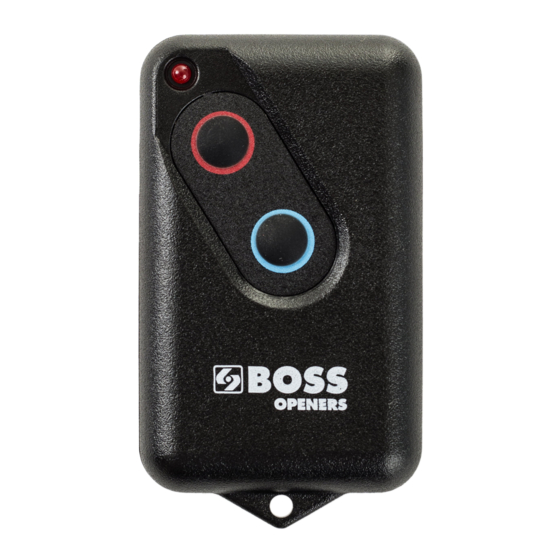

AS SHOWN - WITH ONE OR TWO BUTTONS – WITH BLACK CENTRES
TO CODE YOUR NEW REMOTE THE MOTOR PANEL
If you have access to the motor operating your door, you can use these instructions. However, if the door/gate motor is
shared with other tenants at a residential/commercial complex, do not use these instructions.
Note: a Maximum of 20 remotes can be coded into BOSS MOTOR receivers.
To code in a new remote to a motor:
1. Ensure your new battery is installed correctly in the new remote
2. Open the cover, if any, on your MOTOR to access the CONTROL PANEL
a. On ROLLER DOOR motor, you may need to insert a screwdriver into the slot near the bottom of the
faceplate, then:
i. Press and release the small LEARNING button under the large aqua button. (see Diagram 1)
ii. The YELLOW LED light on control panel should come ON
iii. Press the remote button ONCE. If the programming is successful a GREEN LED will blink twice
iv. Press and release the small LEARNING button again. The YELLOW LED light should go OFF
b. On a PANEL DOOR motor, press the RADIO SET button (see Diagram 2 over page)
i. With a pointed object, push and release the RADIO SET button
ii. The MOTOR light should come ON for 30 seconds
iii. Within that 30 seconds, press the remote button until the motor light FLASHES TWICE
3. Press the remote control button to test operation of the door
To code in the remote to operate 2 or 3 DOORS:
1. Remove the cover on each door's CONTROL BOX PANEL.
2. Repeat the above process using a DIFFERENT button on the remote to operate each door
TO DELETE ALL STORED CODES FROM A DOOR
Do not do this if the door is shared with other tenants at a residential/commercial complex.
1. On a ROLLER DOOR motor: turn off the power, then press and hold down the LEARNING button whilst turning
the power on. The 3 LED lights on the control panel will flash – confirming all codes have been deleted
2. On a PANEL DOOR motor: hold the RADIO SET button down for 5 seconds. The motor light will flash 7 TIMES –
confirming all codes have been deleted
Thank you for your purchase.
Our Customer Support team are available weekdays 8am-5pm on (07) 5476 9227 if you have any further questions.
(IF YOUR BUTTONS HAVE WHITE CENTRES, SIMPLY COPY DIP SWITCH PATTERN FROM
YOUR OLD REMOTE/MOTOR TO THE NEW REMOTE)
