- Page 2 8642 US Highway 20 Garden Prairie, IL 61038 The APW is the most popular product of All Paws Pet Wash. It is a piece of self-serve pet washing equipment that can be implemented and used in many different industries. These units are built with the quality and precision that our other products have been built with since 2009.
-
Page 3: Table Of Contents
CONTENTS page 3-5 I. OVERVIEW 1. Equipment 2. Plumbing 3. Electrical page 6-7 II. OPERATION 1. Set-Up 2. Testing page 8 III. DAILY MAINTENANCE SCHEDULE page 9 IV. SECURITY page 10 V. TROUBLESHOOTING page 11 VI. APW WARRANTY INFORMATION Please Note: Due to ongoing product changes, sales literature descriptions of product features and options may not reflect current product offering. -
Page 4: Overview

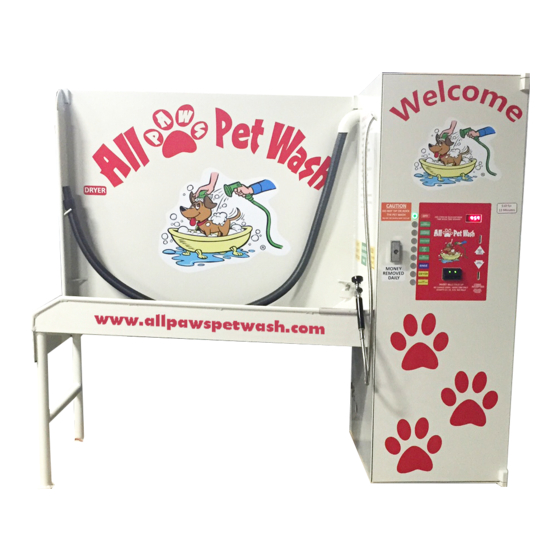

I. OVERVIEW 1. Equipment APW Flip-Tub (open) APW Flip-Tub (closed) Inside Cabinet Flip-Tub A. Wash Tub B. Cabinet C. Sprayer D. Dryer E. Spray Control (9 button [shown] or 3 Button) F. T-Handle Lock G. Hot and Cold Hook-Ups Inside Cabinet 1. -
Page 5: Plumbing
I. OVERVIEW (cont.) 2. Plumbing • When installing in a self-serve bay, a hole • Drain pipe can be routed through the back of will be cut in the back of the unit to allow the cabinet or through the side, underneath access to utilities. -
Page 6: Electrical
I. OVERVIEW (cont.) 3. Electrical Electrical Box This box contains the electrical components that drive the spray controls. This box also contains the wash-down and output test switches, used for maintenance and testing. Activates 2 minute timer. Resets with each button push. When light is on, timer is active. -
Page 7: Operation
Wash-down switch again to reactivate the two minute timer. Filling Your Soap Containers • All Paws Pet Wash recommends a dilution ratio of 20:1 for our soap concentrates. This means that for every ounce of concentrate in your jug, you need to add 20 oz of water. If this ratio isn’t followed properly, you may end up with soap too viscous to siphon properly. -
Page 8: Testing
• Turn on the sprayer to get the water flowing. Lock the sprayer Sprayer Lock in the “on” position and place in tub to keep the water flowing. • In your cabinet, you should see the soap from the Oat Shampoo begin the fill the line leading from the container up to the Solenoid valves. - Page 9 The following are general, suggested guidelines for daily, weekly, monthly, and bimonthly maintenance on your All Paws Pet Wash self serve pet wash vending station. You may find more applicable methods of maintenance in the daily operation of your personal unit.
-
Page 10: Security
IV. SECURITY • All of your profits from the sales of your washes will end up in one place, behind the spray control system. The spray control system opens on the back side of the cabinet door. To access the back end of your control system, open your door and remove the pin keeping the panel in place. -
Page 11: Troubleshooting
TROUBLESHOOTING Common Problems & Solutions Problem: No water pressure flow in the wash tub. Solution: Check water flow from incoming water line. Check pressure gauge on water column in cabinet of APW. The unit requires 40-50 PSI to function properly. If you have sufficient flow form the incoming water line, and 40-50 PSI of required pressure, you will need to adjust the flow screw [Reference image on page 3 / #4 Inside... -
Page 12: Apw Warranty Information
[8642 US Hwy 20 Garden Prairie, IL 61038] for repair or replacement. All Paws Pet Wash will ship the repaired or replaced part back to the purchaser. Purchaser is responsible for the shipping charge to return to seller and seller is responsible for shipping charge to return to purchaser. - Page 13 est. 2009 Everything you need for Find a Pet Wash Near You! your pet wash business! 8642 US Highway 20 Garden Prairie, IL 61038 800.537.8231 www.allpawspetwash.com...
