Introduction

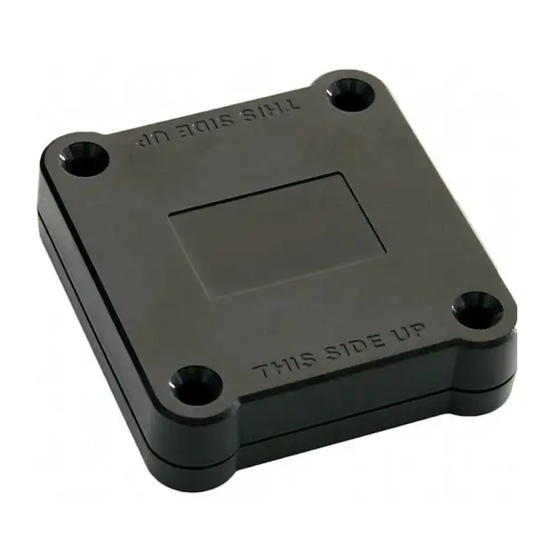

The Pacific Track PT30 is an Electronic Logging Device (ELD) that can be used to implement the

Federal Motor Carrier Safety Administration (FMCSA) Hours of Service (HOS) requirements. The

PT30 includes 4 major functional blocks:

▪ A GPS receiver

▪ A CAN transceiver

▪ Memory Storage

▪ A Bluetooth Low Energy (BLE) transceiver

The PT30 includes a single 10-pin interface. The PT30 must be connected to the vehicle

diagnostic port with the supplied cable. The diagnostic connector provides power (typically 12V)

and connection into the vehicle CAN bus.

The Bluetooth Low Energy implements the Low Energy section (Bluetooth 4.0 specification). The

transceiver operates between 2402 MHz and 2480 MHz at a power of -4 dBm. The antenna is

integrated on the Printed Circuit Board (PCB) of the PT30. There are no serviceable or adjustable

parts inside the product. Any modification of the product will void the warranty.

The Pacific Track PT30 is certified by the FCC Rules and Regulations Part 15 subpart C. It is the

responsibility of the OEM or integrator to include the following labeling text in the end user

manual:

FCC ID: 2ALBDPT30

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference and

(2) this device must accept any interference received, including interference that may

cause undesired operation

In addition, the following text shall also be part of the user manual:

This equipment has been tested and found to comply with the limits for a class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and
