The Fake
Plastic
Trees
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fake Plastic Trees and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AUDIO KITCHEN Fake Plastic Trees

  • Page 1 The Fake Plastic Trees Owner’s Manual...
  • Page 3 Important safety instructions A PLEASE read this instruction manual carefully before switching B ALWAYS use a 9VDC (Centre Negative) supply capable of delivering at least 100mA. C There are no user serviceable parts. D Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,...
  • Page 4 What is the Fake Plastic Trees? Honestly, I can't remember why the Fake Plastic Trees (FPT) project started. Certainly, the idea of mimicking an EL84 output using a transformer-coupled JFET got the cogs turning. At any rate, sometime in 2018 I began to breadboard, and the circuit looked a little bit like The Big Trees (TBT) with JFETs: I thought I was pretty close.
  • Page 5 How do I use the Fake Plastic Trees? Unlike TBT, the FPT will NOT drive a speaker, and consequently it functions solely as a pedal. Connect an instrument and amp to the In and Out jacks respectively, adjust the Gain and Volume pots for the desired break-up and output level, and away you go.

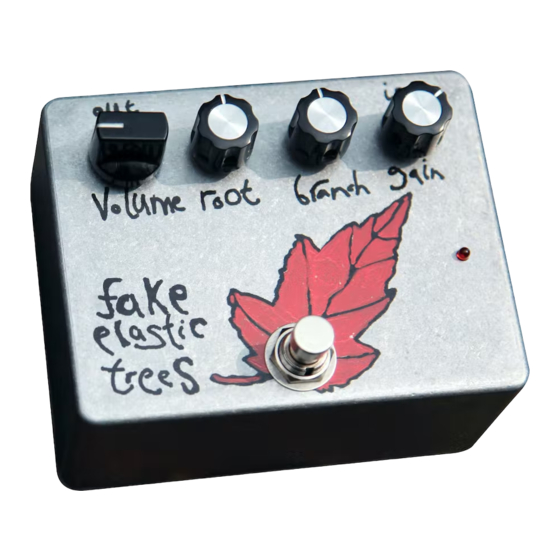

  • Page 7 Gain – This controls the level of preamp signal presented to the output stage and as such will control the degree of break-up. Root – This controls the level of bass frequencies present in your tone. Branch – This controls the level of treble frequencies present in your tone.
  • Page 8 12 Impress House, Mansell Road Acton, London W3 7QH +44 (0)20 8735 0045 www.audiokitchen.co.uk...
