Brief introduction
GTWAE7-4D (
LX-HS06) is a set of entirely new English home security alarm
system, it uses advanced MCU control and SMD technology. it innovate multiple
trade new technique. It has integration high, reliability good, technology
advanced, function mightiness and operation simple etc. feature. It used abroad
in bank, organ, enterprise, army, villa Dom, and small zone housing network
alarm.
Technical parameter
Main controller:
Power:12VDC(power adapter convert)
Standby power: DC12V(chargeable battery)
Working frequency: 433MHz
Remote control distance:≥30m
Static current: 150mA
Battery group waiting time: 90min
Factory setting:
System password:000000
User password: 1234
Code: 0000
Report: no report
Sensor emitter LX-AL8:
Working power: DC9V(cascading battery)
Sense distance: 12m
Installing height:2m
Remote controller: Working power: DC12V (alkaline battery)
Door magnetism (LX-DM1): Working power: DC12V (alkaline battery)
Siren: power DC12V, current: <800mA

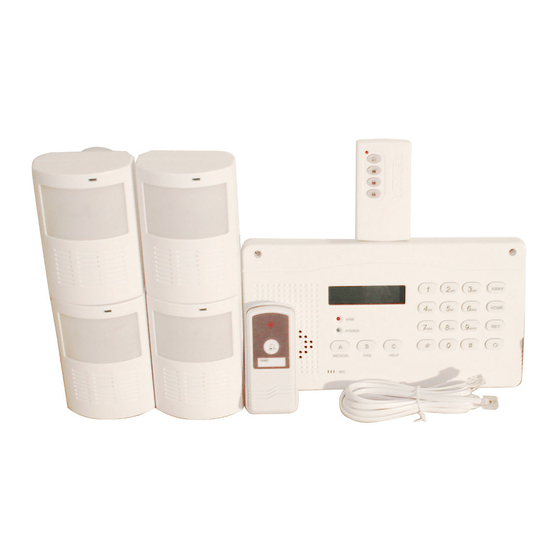

Basis configuration
controller（DC12V storage battery group include）
Power adapter
(Input 230VAC,output 12VDC,current 1000mA)
4-key remote controller（battery include）
single-key remote controller（battery include）
Sensor emitterLX-AL8（battery include）
Door magnetismLX-DM1（battery include）
Siren
Telephone line
Option unit
GTWAE7-4D
Smoke alarm
detectors PIR LX-AL11）、wired or wireless PIR LX-AL9!
Function
4+8 arm zone
LX-HS06 has 4 wired arm zones and 8 wireless arm zones.
English display
Its operation and setting all be displayed by English and operation is more convenient and shortcut.
Function mightiness
Possessing multiple programmable function setting, operation and setting is simple, standby power for 24 hours.
One key operation
You need only press [AWAY] or [HOME] key to set arm/stay, you can also use remote controller to arm/disarm. Under any
state disarming need only pressing user password.
Numeral speech
Inner set numeral speech ware, and has 8 section numeral speeches. During operation, it prompt:" System arm", "system
disarm"; during alarming, it can identify detector automatically and transmit alarm info to receiving alarm telephone, like
" fire alarm", " gas alarm", " security alarm", "help alarm".
Password popedom
It has [system password] and [user password], the two passwords can be set after entering alarm system but respective
function popedom is different, that is convenient for manager and operator to control alarm system religiously.
Home security alarm system GTWAE7-4D
System delay:0sec
Alert: 300sec
Dial times: 3
Vibrant ring times: 8
Static current: 30μA
Sense angle:110°
(LX98-RF、 LX728-RF) 、 wired sensor （ glass break LX-AL5、 PIR LX-AL6, PIR &glass break LX-AL7, double
Instruction
1pcs
1pcs
2pcs
1pcs
1pcs
2pcs
1pcs
1pcs
Advertisement
Summary of Contents for GuardTronic GTWAE7-4D

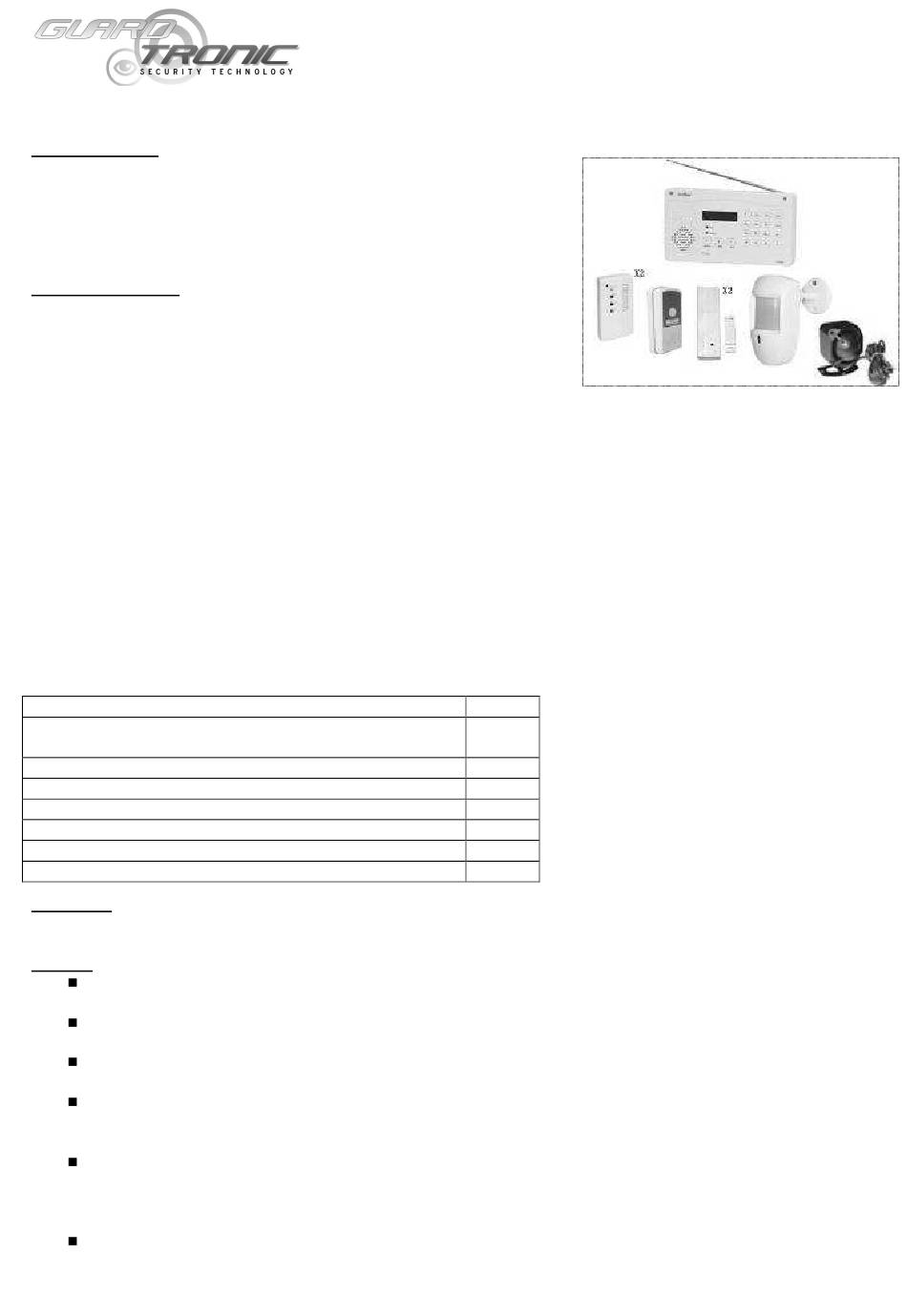

- Page 1 Home security alarm system GTWAE7-4D Instruction Brief introduction GTWAE7-4D ( LX-HS06) is a set of entirely new English home security alarm system, it uses advanced MCU control and SMD technology. it innovate multiple trade new technique. It has integration high, reliability good, technology advanced, function mightiness and operation simple etc.
- Page 2 Long-distance remote control The alarm can be controlled by keypad and remote controller, by telephone line, it can be long-distance controlled, and fulfill arm/disarm/monitor hearing function. Intelligent study. Wireless detector study is very simple. The study time need no 1sec. Connection line 1.
- Page 3 · · · · function menu Arm state 1.Sys level 1.Level 2.User level 2.Code 1. Sys 1.Arm report 3.Report 2.No report 4.Delay Wired 1. Instant 2. Zone 2. Delay (zone) 1.Smoke 3. 24 HR Disarm state 2.Gas 4.Bypass 3.Panic … Wireless 1.
- Page 4 Attention: when need saving telephone expense or the alarm needn’t be network, you can not set it. —delay <system delay> 4.delay Enter menu 4. relay→LCD display: Input delay After inputting press # key to confirm.** is delay time for away home when arming, it can set to 00~99sec. ·...
- Page 5 *************is telephone number, it can set to 3~13 bits telephone number. —dialing setting Set dial times enter menu3.call→2.dial→LCD display: press # key to confirm ,** is dial times. Factory set is 3 times; network center is not limited by it until center telephone receiving alarm.
- Page 6 Installing out-line hole Fig. 2 Fig. 3 Fig. 1 1． Untighten the screw to open the unit (see fig.1); 2． Pull in wires through the out-line hole on bottom cover and then connect wire to terminals on PCB according to connection line diagram.
