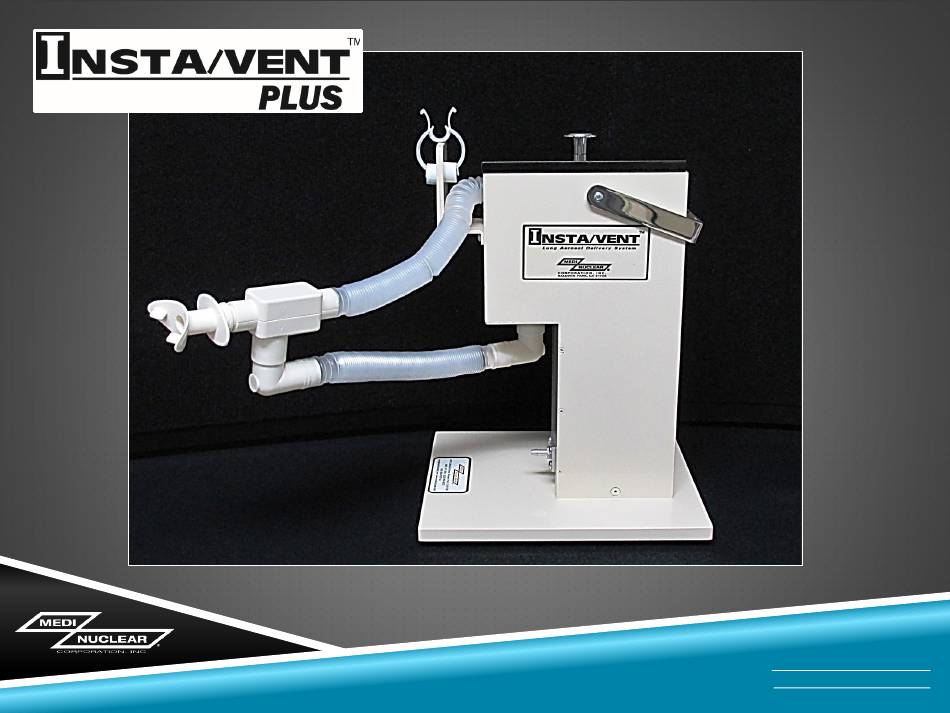

- Page 1 Step by Step Instructions (800) 321-5981, (626) 960-9822 info@medinuclear.com www.medinuclear.com © 2018 Medi/Nuclear® Corporation, Inc. 4610 Littlejohn Street, Baldwin Park, CA 91706 All Rights Reserved Rev 07/02/18...

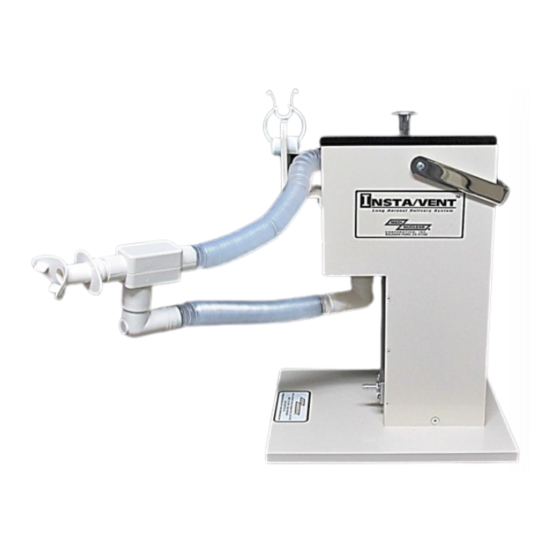

- Page 2 Insta/Vent ™ Plus Overview Medi/Nuclear’s Insta/Vent™ Plus is a two tube system that eliminates dead space and with an expansion bag, provides more efficient radioaerosol delivery. Unidirectional airflow allows for the radioaerosol particles of Tc-DTPA or an equivalent alternative to be immediately available upon inhalation.
- Page 3 As a patient inhales, medication from the nebulizer moves through the top tube and into the mouthpiece. When the patient exhales an internal flapper closes and exhalation is directed through the bottom tube and into a HEPA filter. During exhalation, air continues to flow through the nebulizer into a breathing bag which acts as a reservoir to store aerosol that would normally be wasted during...
- Page 4 Insta/Vent Plus Assembly ™ • Remove the components from the plastic bag: ▪ Insta/Vent™ Plus Assembly (manifold with attached nebulizer, HEPA filter, green expansion bag and breathing tubes with Flow Control and elbows). ▪ Small bag containing Safety Shield™ Mouthpiece, nose clip, and “Caution Radioactive Material”...
- Page 5 Unfold the green expansion bag. • Open the lid of Insta/Vent™ shield • and install the Insta/Vent™ Plus manifold. A. The upper /attached breathing tube will fit through the slot at the top. B. The nebulizer will be directed into the lead cylinder and into the silver oxygen/air pressure port.
- Page 6 • While holding down the Insta/Vent™ Plus manifold inside the shield, attach the elbow on the free end of the second breathing tube, to the HEPA filter. The HEPA filter can be reached through the exhaust opening in the underside of the Insta/Vent™ shield.
- Page 7 • Attach the Safety Shield™ Mouthpiece to the patient port. If desired, an air- filled face mask (#MN5045) may be used instead. • Connect the oxygen tube to the oxygen inlet connection on the front of the lnsta/Vent™ lead shield. Use only the provided oxygen tube (#IV-605).
- Page 8 • Prepare Tc-DTPA or an equivalent alternative in accordance with the manufacturer’s instructions. • Using a shielded syringe and needle, inject 40 mCi in 2 mL of Tc-DTPA solution through the center of the grey stopper in the top of the Insta/Vent™ manifold and into the nebulizer.
- Page 9 Insta/Vent™ Plus Operation • Remove the Safety Shield™ Mouthpiece cover by pressing in the sides and gently pulling out. • Place the mouthpiece in the patient’s mouth. • Place the nose clip on the patient’s nose, unless using a face mask. •...
- Page 10 • Gradually turn on the oxygen/air, adjusting the flow rate to 10-12 liters/minute. Caution: At normal 50 PSI pressure for the oxygen/air supply, a sudden increase of flow from 0 to10 liters/minute may blow the air line off of the Insta/Vent™...
- Page 11 • After inhalation, turn off the oxygen/air and instruct the patient to continue breathing through the mouthpiece for additional four or five tidal breaths to clear the system of aerosol. • Remove the nose clip and the mouthpiece from the patient. •...
- Page 12 Insta/Vent Plus Disposal ™ • Be sure the oxygen/air supply is off. • Disconnect the elbow from the bottom of the HEPA filter. • Remove the Insta/Vent™ shield lid and remove the used radioaerosol kit from the shield. • Disconnect oxygen tubing from the oxygen/air source. Warning: Disconnecting the oxygen line before removing kit may result in a vacuum sufficient enough to pull liquid into the oxygen port which could result in...
- Page 13 • Place the kit in the re-sealable disposal bag. Remove seal strip from the bag to expose the unused tape. Seal the bag securely. • Quickly attach the radiation label, and place the kit in a shielded disposal area to allow for radioactive decay. •...
- Page 14 Insta/Vent™ Ordering Information Catalog Product Description Qty/ Units IV-600 Insta/Vent™ Radioaerosol Kit, 24/cs Single Tube System IV-600M Insta/Vent™ Radioaerosol Kit with Mask, 24/cs Single Tube System IV-600P Insta/Vent™ Radioaerosol Kit, 24/cs Two Tube System IV-600PM Insta/Vent™ Radioaerosol Kit with Mask, 24/cs Two Tube System IV-600V...
- Page 15 For additional information, please contact: 800.321.5981 / 626.960.9822 info@medinuclear.com www.medinuclear.com We’re here to be of assistance! (800) 321-5981, (626) 960-9822 info@medinuclear.com www.medinuclear.com © 2018 Medi/Nuclear® Corporation, Inc. 4610 Littlejohn Street, Baldwin Park, CA 91706 All Rights Reserved Rev 07/02/18...
