Summary of Contents for AutoTrends 035-5246-4

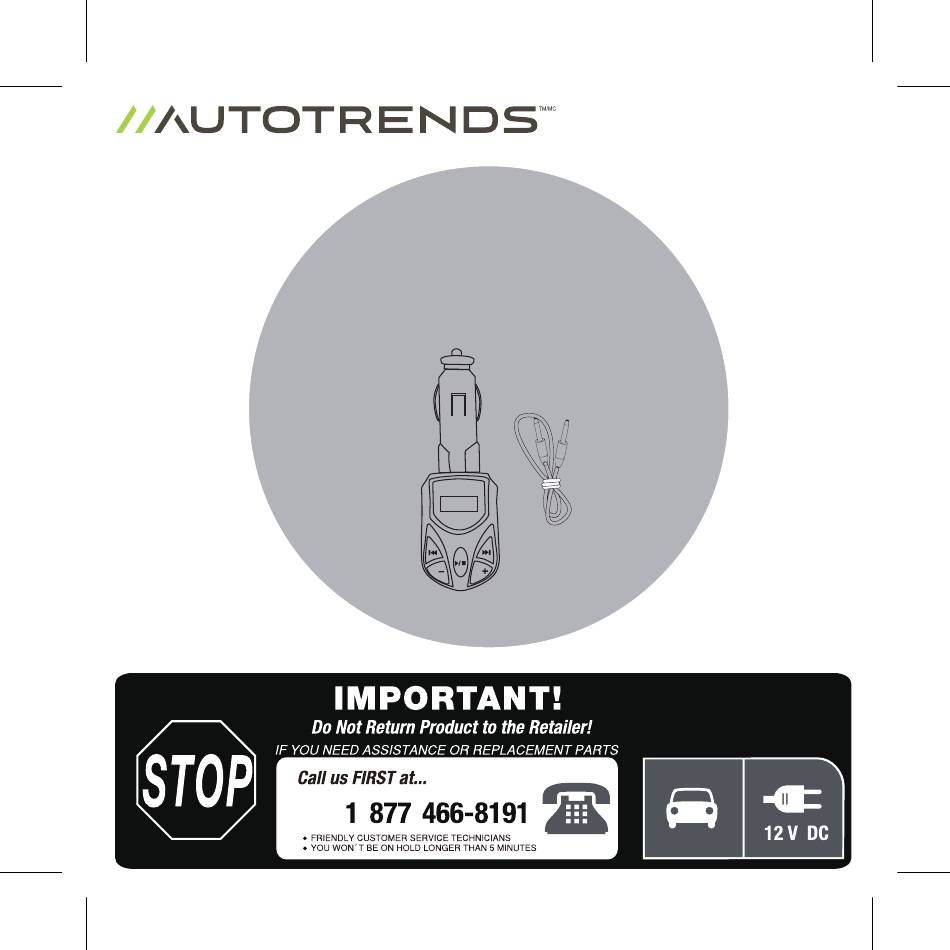

- Page 1 FM Transmitter Model no. 035-5246-4...
-
Page 2: Safety Information
SAFETY INFORMATION IMPORTANT: RETAIN FOR FUTURE REFERENCE AND READ CAREFULLY! Read this manual carefully before using the product. Follow all safety instructions to avoid damage caused by improper use. Should this product be transferred to a third person, this manual must be included. WARNING! Make sure your connected device is firmly and securely fastened. -
Page 3: Intended Application
SAFETY INFORMATION DANGER! Objects installed near an airbag can be hurtled with high velocity in the event of the airbag being triggered, and thus cause severe injuries. Never install the car transmitter near an airbag. Do not make any notes or search for telephone numbers while driving. This distracts you from the traffic situation. - Page 4 Description Rotatable 12 V cigarette lighter connector LCD display Pause/play button Manual MP3 scan buttons ( Manual MP3 scan buttons ( "C-"button ( manual scan frequency buttons)
- Page 5 "C+" button ( manual scan frequency buttons) 2.1 A USB port TF card reader SD card Reader 3.5 mm jack connector 3.5 mm audio cable Plug the FM transmitter into the cigarette lighter of the vehicle directly. Connect your mobile device to the car transmitter using. USB cable (not provided) for a smartphone.
- Page 6 88.5 Plug the FM transmitter into the cigarette lighter of the vehicle directly. Connect 3.5 mm audio cable (12) to your MP3/MP4 player or smartphone. Use the manual scan frequency buttons to select the optimal radio FM frequency. Set the same frequency on the car stereo. Now the car transmitter is ready to transmit the audio signal to the car stereo.
- Page 7 4 When the call comes, the playing music will pause. Press answer key to answer the call and you’ll hear the voice of the caller from the car radio. When the call concludes, the music will automatically resume playing. Question: My music is playing, but there seems to be a lot of static.
-
Page 8: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Question: My music sounds overdriven and distorted. Answer: 1. Ensure the FM frequency you are using is still unoccupied as you drive through different areas. FM signals can intrude on an unused frequency. 2. Set your MP3/MP4 player or smartphone EQ (equalizer) to OFF and adjust your car's bass and treble controls to 0. -
Page 9: Technical Specifications
FREQUENTLY ASKED QUESTIONS Question: Is this car transmitter compatible with other devices? Answer: Yes, it is compatible with most MP3/MP4 players with standard 3.5mm audio output, and mobile devices with USB sockets (e.g. GPS). TECHNICAL SPECIFICATIONS Input：DC 12V USB output: 5 V/2.1 A Frequency range: 88.1-107.9 MHz(0.1MHz/step) Working current：15 mA±5 mA MAINTENANCE AND SERVICE... - Page 10 This unit carries an exchange warranty only against defects in workmanship and materials when accompanied by proof of purchase. There are no replacement parts. Malfunctions due to abuse, misuse, or accidental damage are not covered by warranty. 035-5246-4 Made in China Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8...
