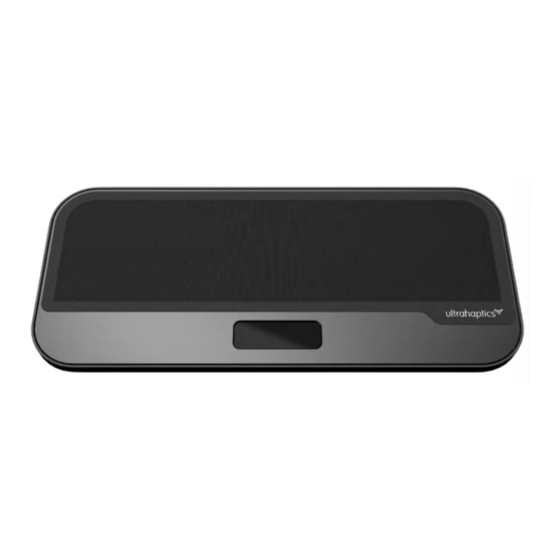

Overview
Ultrahaptics' STRATOS™ Inspire is a fully
integrated device, providing end users with
the ability to bolt mid-air haptics onto their
application. With a rugged, splash-proof
enclosure and with regional safety and
electrical certification (CE, FCC, NRTL, PSE),
STRATOS™ Inspire is designed to deliver
'plug-and-play' mid-air haptics functionality
without the need to develop custom
hardware.
Getting started

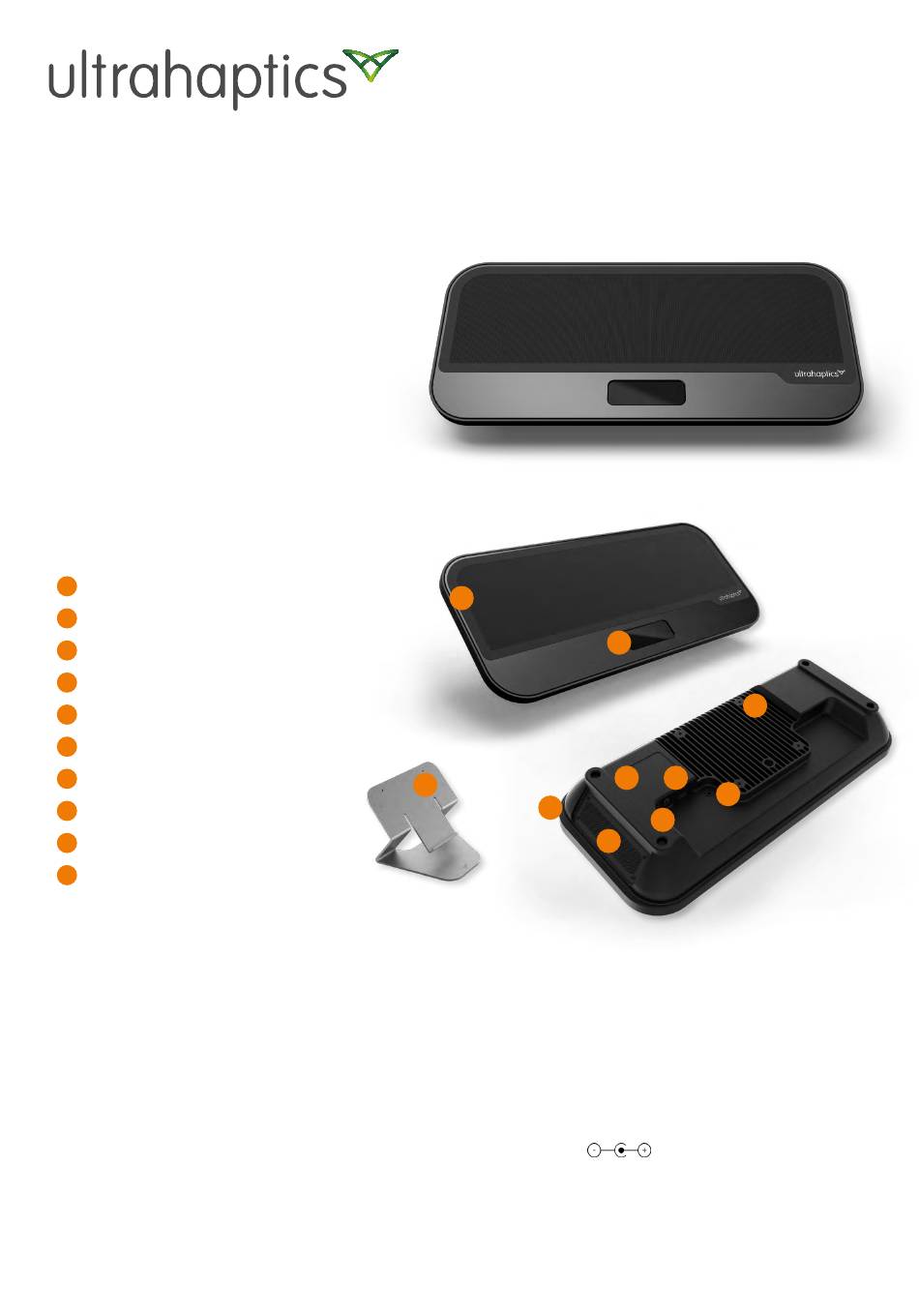

Front grille
1
Leap Motion
®
camera module
2
Desktop stand
3
Sealing position for recessed installation
4
Fan inlet/outlets
5
Rating plate with serial number
6
Power socket
7
USB Type-C port
8
Security bolting point
9
VESA 100 x 100 mount
10
Connections and power requirements
The STRATOS™ Inspire requires two wired connections to operate:
DC power
STRATOS™ Inspire requires a DC power supply, which is connected at the rear of the unit. A universal
mains (100 to 240V AC) DC power supply is supplied with the unit. An alternative Limited Power Source
may be used as long as it fulfils the following specification:
•
24V DC ±10% 3.75A max.
•
5.5mm × 2.1mm barrel connector, connected centre-positive
•
A Limited Power Source (LPS) in accordance with IEC 62368-1:2014
USB type-C
Data is sent from a connected PC to the STRATOS Inspire using a USB type-C cable. A suitable cable is
supplied with the unit. An alternative USB type-C compliant cable may be used as convenient.
1
3
4
2
10
6
8
9
7
5
Advertisement
Table of Contents
Summary of Contents for Ultrahaptics STRATOS Inspire
- Page 1 A Limited Power Source (LPS) in accordance with IEC 62368-1:2014 USB type-C Data is sent from a connected PC to the STRATOS Inspire using a USB type-C cable. A suitable cable is supplied with the unit. An alternative USB type-C compliant cable may be used as convenient.
- Page 2 Haptic interaction zone STRATOS™ Inspire can be used to create haptics on a user’s hand in a 3-dimensional zone. Viewed from the side of the unit: Viewed from the top of the unit: Seen from the front of the array, the haptic interaction zone measures approximately: Depth Width Best haptic quality...
- Page 3 • When the intended use is primarily for standing adults, we recommend that the centre of the interaction zone should be approximately 900mm / 3’ from floor level. • If the intended use is primarily for seated adults, wheelchair users or standing children, the centre of the interaction zone should be approximately 750mm / 2’...
- Page 4 This should be positioned below the USB and power cords. A suggested position is shown in the template shipped with the product, and in the CAD available from Ultrahaptics. A minimum hole size of 25mm / 1” is recommended to simplify connection.
- Page 5 Contact Ultrahaptics for more information. NOTE: Most Ultrahaptics demos support only Microsoft Windows. Check with Ultrahaptics if unsure. Ultrahaptics provides a set of demos with the Demo Suite software package, which can be downloaded from the Ultrahaptics developer site to experience mid-air haptic sensations.
- Page 6 (1). Use a vacuum cleaner or soft brush to do this. Avoid stiff bristle brushes. Cleaning Use a clean, damp cloth to clean the unit. Mild detergents will not damage the STRATOS Inspire. Avoid the use of solvents and abrasive cleaners which may damage the unit. Do not use jets of water or submerge the unit.
- Page 7 Ultrahaptics or the vendor from whom you purchased the unit. If there is no LED showing, restart the demo or Ultrahaptics software, and try again. If this doesn’t work, turn the power to the STRATOS™ Inspire off, wait a few seconds and reboot.
