TUD Modelltechnik Freestyler 3 Pilot's Information Manual

Preliminary pilot information

Advertisement

Quick Links

Recommended RC-components:
version
FLAPS
low-cost
HS85 MG
DS368, DS3068,
normal
S3150
high-end
DS3068
Note concerning cheap AA batteries – it seems possible that life time ends relatively abruptly. Don't save
too much at the battery or replace upon slight doubt about capacity under load. Prepare new batteries by
charging/discharging several times, checking capacity and voltage.
Center of gravity:
95-98 mm measured from leading edge at wing root.
Tow hook:
CG
2 mm, depending on desired launch safety.
±

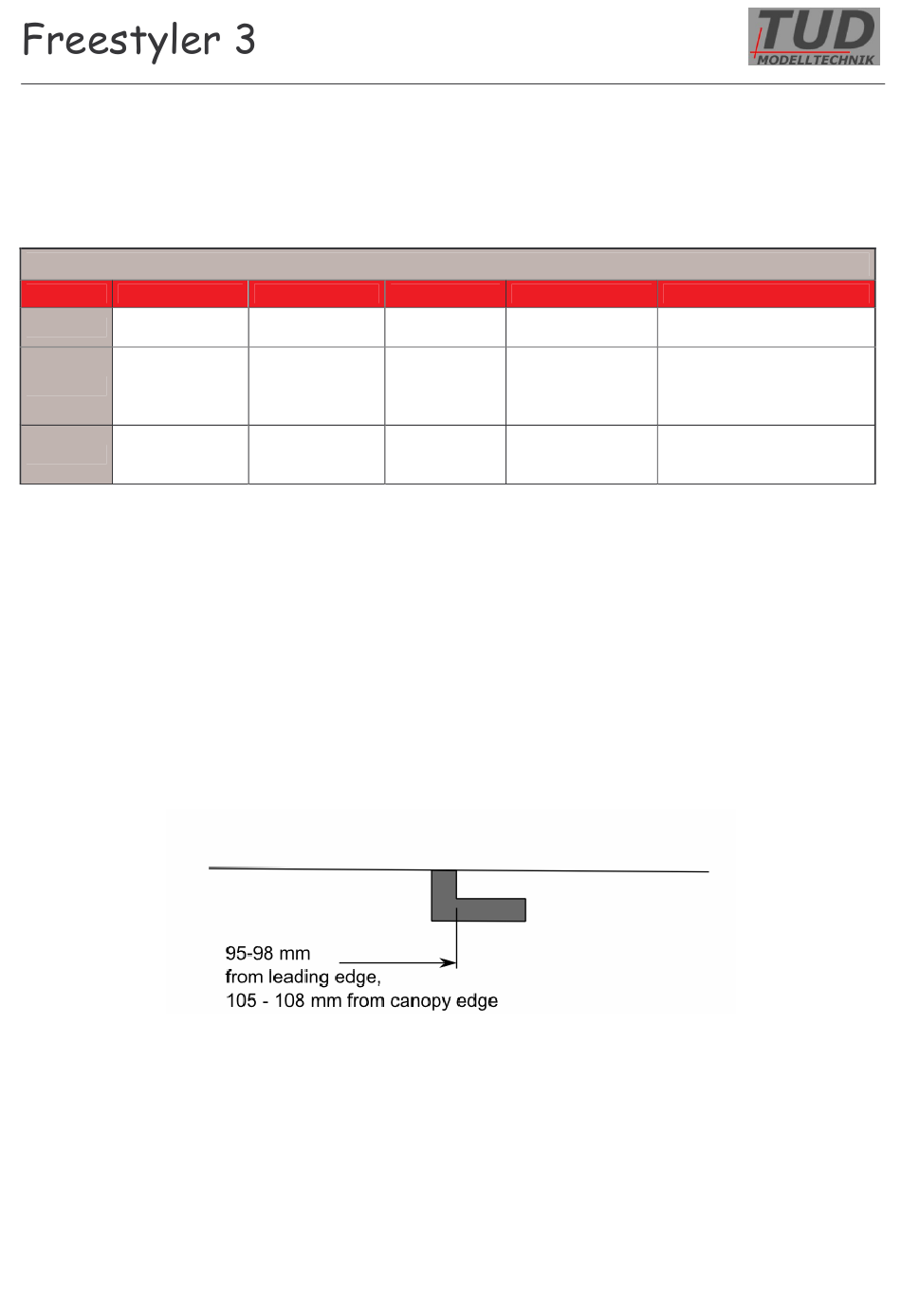

Position measured from wing leading edge to rear edge of hook, see sketch below.
02 Aug. 07
Preliminary pilot information
RC-component suggestions for Freestyler 3, V-tail
AILERONS
HS85 MG
DS368, DS3068,
S3150
DS3068
V-tail
receiver
HS81 MG
SMC 14
S3150
SMC 14, SMC 19
SMC 14, SMC 19,
DS3781
SMC 19 DS
battery
4 x AA NiMH 2100 mAh
(Sanyo, GP)
4 x 2/3 A 1400 mAH (GP,
Intellect),
4 x AA NiMH 2100 mAh
(Sanyo, GP)
4 x 2/3 A 1400 mAH (GP,
Intellect),
4 x 4/5 A NiMH 2150 mAh
page 1/21
