Setting Up the 289H LAN Controller Card with PressureMAP

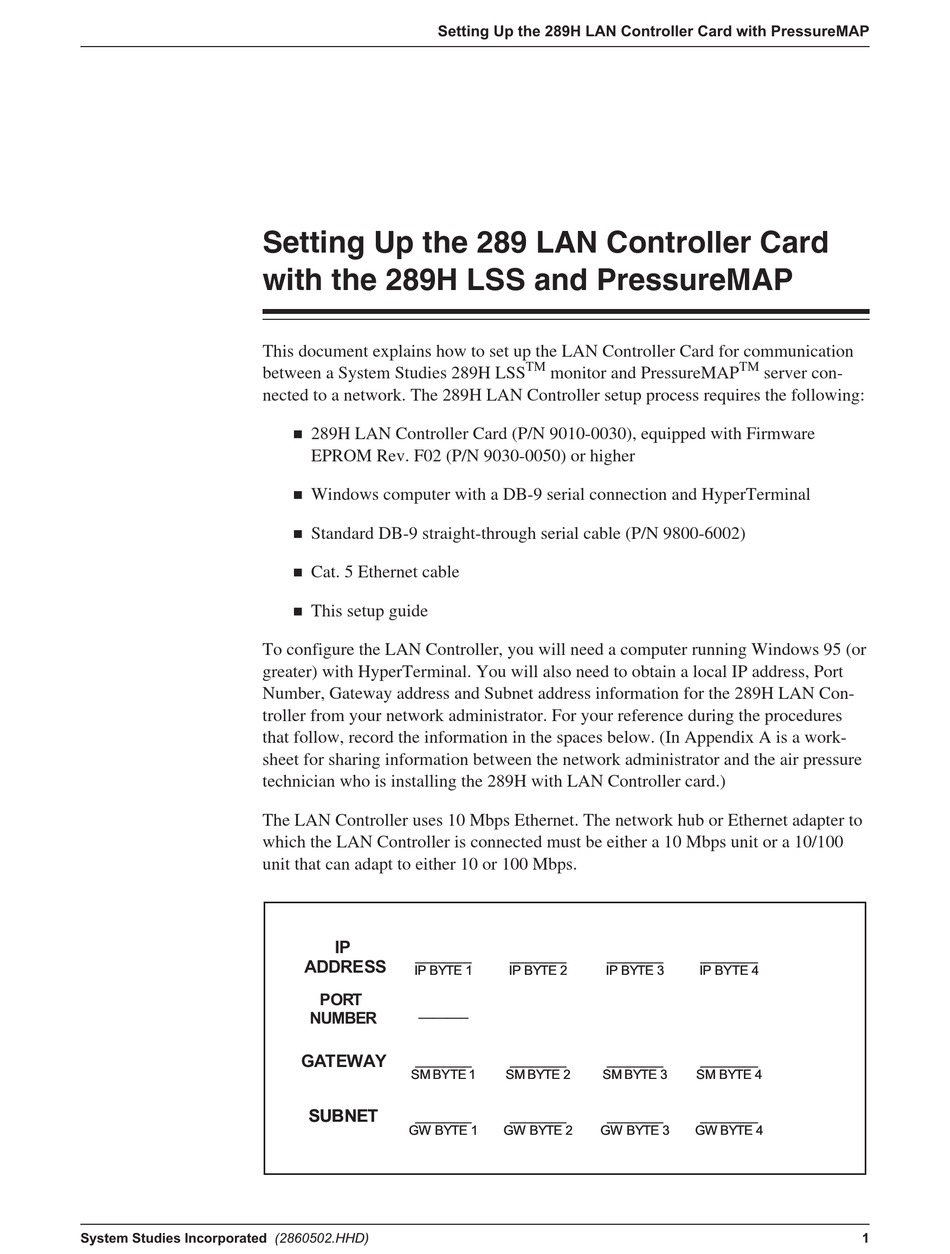

Setting Up the 289 LAN Controller Card
with the 289H LSS and PressureMAP
This document explains how to set up the LAN Controller Card for communication
between a System Studies 289H LSS
nected to a network. The 289H LAN Controller setup process requires the following:
n
289H LAN Controller Card (P/N 9010-0030), equipped with Firmware
EPROM Rev. F02 (P/N 9030-0050) or higher
n
Windows computer with a DB-9 serial connection and HyperTerminal
n
Standard DB-9 straight-through serial cable (P/N 9800-6002)
n Cat. 5 Ethernet cable
n This setup guide
To configure the LAN Controller, you will need a computer running Windows 95 (or
greater) with HyperTerminal. You will also need to obtain a local IP address, Port
Number, Gateway address and Subnet address information for the 289H LAN Con-
troller from your network administrator. For your reference during the procedures
that follow, record the information in the spaces below. (In Appendix A is a work-
sheet for sharing information between the network administrator and the air pressure
technician who is installing the 289H with LAN Controller card.)
The LAN Controller uses 10 Mbps Ethernet. The network hub or Ethernet adapter to
which the LAN Controller is connected must be either a 10 Mbps unit or a 10/100
unit that can adapt to either 10 or 100 Mbps.
IP
________ ________
ADDRESS
IP BYTE 1 IP BYTE 1
PORT
_______ _______
NUMBER
________ ________
GATEWAY
SM BYTE 1 SM BYTE 1
________ ________
SUBNET SUBNET
GW BYTE 1 GW BYTE 1
TM
monitor and PressureMAP
________ ________ ________ ________
IP BYTE 2 IP BYTE 2 IP BYTE 3 IP BYTE 3
________ ________ ________ ________
SM BYTE 2 SM BYTE 2 SM BYTE 3 SM BYTE 3
________ ________ ________ ________
GW BYTE 2 GW BYTE 2 GW BYTE 3 GW BYTE 3
TM
server con-
________ ________
IP BYTE 4 IP BYTE 4
________ ________
SM BYTE 4 SM BYTE 4
________ ________
GW BYTE 4 GW BYTE 4
