Summary of Contents for Oxygen College STUDIO C

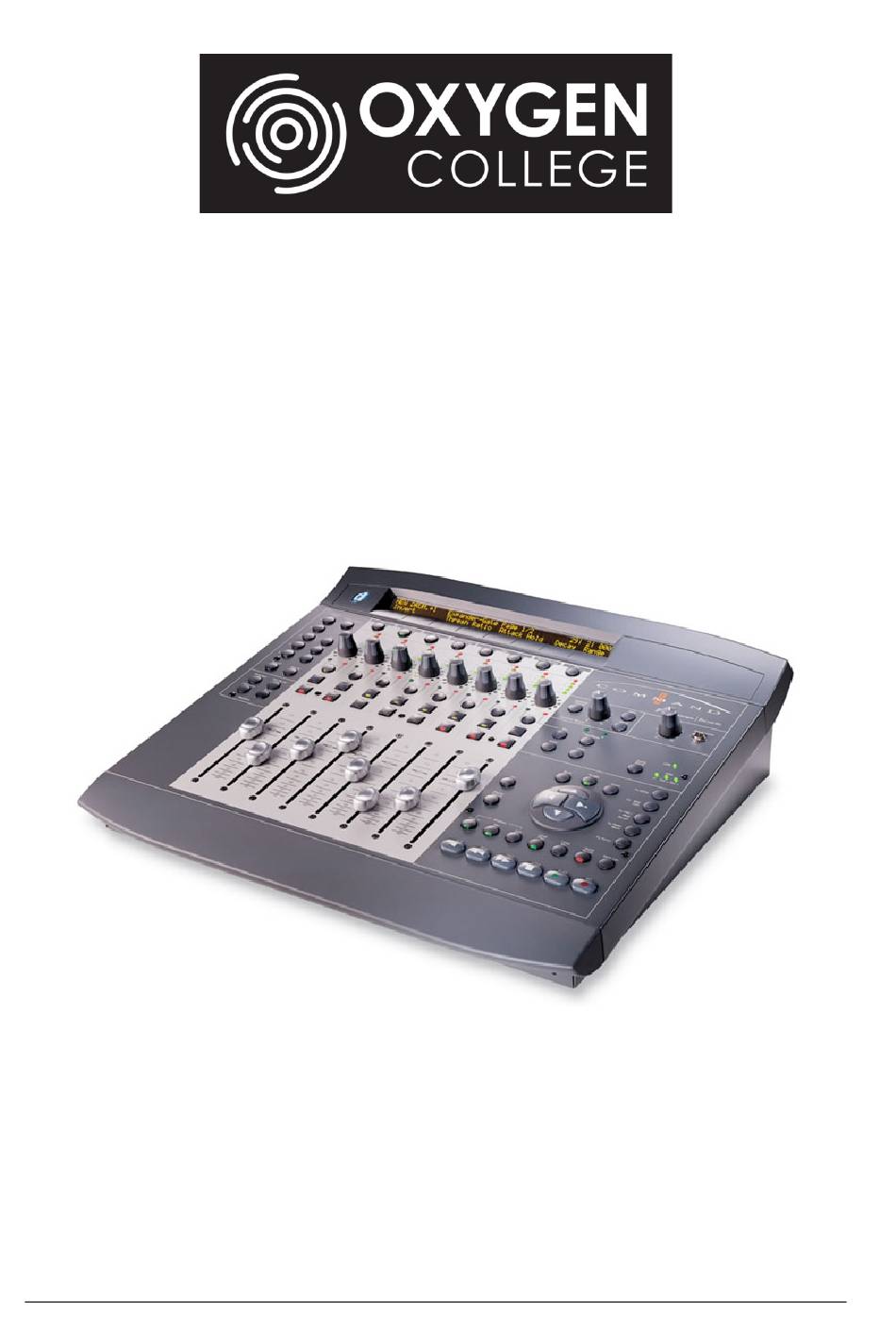

- Page 1 STUDIO C OPERATIONS MANUAL Studio C Operations Manual © Oxygen College 22407 V3 – 02/20 Page | 1...
- Page 2 Introduction This manual provides information on the operation of Studio C at Oxygen College. It contains a comprehensive list of all the equipment in the studio, how it is set up and patched, and also how it is to be operated. The following is a list of the equipment that will be discussed: Command 8 Console •...
- Page 3 You can control the volume for the monitor speakers and also 2 headphone outputs using controls in the monitor section, however in studio C the monitor speakers will be controlled by the Command 8 console. PLEASE NOTE, TO GET BEST RESULTS MONITOR VOLUME ON INTERFACE MUST BE ON ALL THE WAY UP TO FEED THE COMMAND 8 CONSOLE.
- Page 4 8, or 1 fader at a time. THE COMMAND 8 HAS MANY OTHER USEFUL FEATURES THAT ARE NOT COVERED IN THIS MANUAL, FOR MORE INFORMATION CONTACT YOUR TRAINER OR VISIT AVID.COM TO READ MORE. Studio C Operations Manual © Oxygen College 22407 V3 – 02/20...
- Page 5 These inputs are for instruments that do not provide their own gain, such as guitar or bass, and can be plugged straight into rear of the unit the unit. However in Studio C, it is recommended to use the more accessible inputs on the front of the 8PreX Studio C Operations Manual ©...
- Page 6 While having the ability to send signal via standard analog outputs, in the case of Studio C it is connected using the digital S/PDIF output, providing analog to digital conversion before sending the signal. The key features of this unit are: Variable Input Impedance For Flexible Microphone Voicing (150 Ohms To 2400 Ohms) •...
- Page 7 Studio Layout and Patching Studio C has both a live space and vocal booth for recording, with a separate control room with a window to maintain visual contact with the performers. Each room has a wall box to connect cabling, and the patching for these is shown in the pictures and diagrams below.
- Page 8 Presonus Digimax D8 and the Art MPA II are all connected with BNC cable to provide a common wordclock to all units. The Liquid Saffire 56 is the master clock source, linked to the Art MPA II then to the Presonus Digimax D8. Studio C Operations Manual © Oxygen College 22407 V3 – 02/20...
- Page 9 2. Right monitor Speaker (via Command 8) 3. Headphone Amp 1 4. Headphone Amp 2 5. Headphone Amp 3 6. Headphone Amp 4 7. Not Connected 8. Not Connected Studio C Operations Manual © Oxygen College 22407 V3 – 02/20 Page | 9...
-
Page 10: Headphone Monitoring
Studio Talk Back Studio C does not have a built in microphone to provide talk back from the control room to the live space. One mono audio record channel will be required to achieve this, along with a microphone and cable that is supplied in the studio. - Page 11 Setting up your session from scratch (Example) The following instructions are an example of how to setup a recording session in Studio C, with 18 channels of input and 2 headphone sends.
-
Page 12: Troubleshooting
No sound in the headphones – check that the headphone amp settings are correct as • described earlier, the cables are correctly patched and the volume is up on the Pro Tools send. Studio C Operations Manual © Oxygen College 22407 V3 – 02/20 Page | 12...
