Summary of Contents for ASTE AVO Series

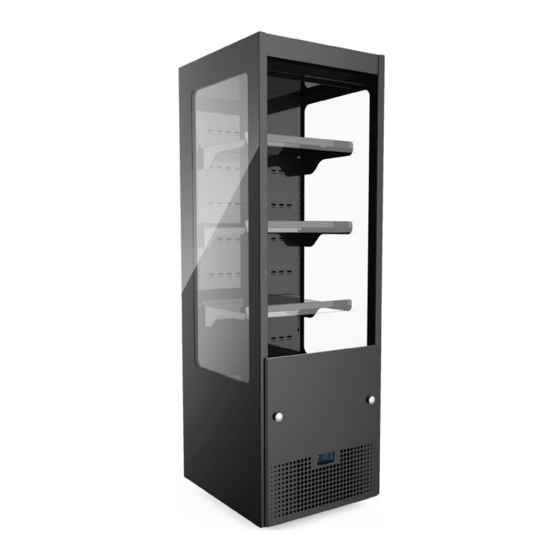

- Page 1 USER MANUAL series Standard AVO Standard 170-60,AVO Standard 170-60 Coolboard AVO Standard 170-60 G, AVO Standard 170-87 G...
- Page 2 On behalf of the Aste-team Jussi Salonen CEO and Founder, Aste Finland Oy *Aste constantly works on the further development of all models. Therefore please understand that we have to reserve the right to make design, equipment and technical modifications.
-
Page 3: Table Of Contents
EN E TABLE OF CONTENTS 1. SAFETY INSTRUCTIONS ..........4 2. PUTTING INTO OPERATION .......... 7 3. USE OF THE APPLIANCE ..........8 4. CLEANING AND MAINTENANCE ....... 11 5. TROUBLESHOOTING ............. 13 6. TECHNICAL SPECIFICATIONS ........16 7. ENVIRONMENTAL POLICY & RECYCLING ....18 8. -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS EN EN Please read this operating and maintenance manual carefully. We suggest to keep the guide into your possession during the entire life cycle of the product. After delivery, immediately check the appliance for possible transport damage and make sure it works properly. - Page 5 EN E Keep a minimum distance of 10 cm between the appliance and neighbouring surfaces (walls, roof, furniture etc.). Keep clear of obstructions all ventilation openings in the appliance enclosure or for built-in structure. Before connecting the device, check: • The power rating (on the type plate) •...
- Page 6 EN EN Do not store explosive substances such as aerosol cans with a flammable propellant in the appliance. The user is solely responsible for damages to properties or products, or injuries to persons resulting from careless and improper use of the appliance. Do not expose the appliance into direct sunlight.
-
Page 7: Putting Into Operation
2. PUTTING INTO OPERATION EN E 2.1. INSTALLATION IMPORTANT! Never move the appliance by grasping the edge of the glass sides. Position the device where it is protected from sunlight and other heat sources, since operation may be disturbed if the ambient temperature exceeds +25°C. -
Page 8: Use Of The Appliance
3. USE OF THE APPLIANCE EN EN 3.1. STARTING UP IMPORTANT! All packaging materials are recyclable/energy waste. Clean the appliance with detergent before switching it on, dry it with a soft, clean cloth and let it ventilate for a while. It is advised to keep the appliance in an upright position for at least 2 hours after transport before using it. - Page 9 3.3. DIGITAL CONTROLLER EN E HINT! The digital temperature controller is located behind the ventilation grating. Select the desired target temperature by pressing Turn lights ON/OFF by pressing for 3 seconds to switch ON or Press and hold turn OFF the appliance. Start defrosting by pressing and holding for 3 seconds.
- Page 10 3.5. ENERGY SAVING TIPS EN EN Do not place the appliance in direct sunlight, HVAC outlets or near heat- producing appliances (like ovens, boilers and heaters). The appliance reaches its top efficiency when it works 24/7, do not switch it off during the night.
-
Page 11: Cleaning And Maintenance
4. CLEANING AND MAINTENANCE EN E IMPORTANT! Lack of maintenance will cause the appliance to break down. 4.2. PREPARATION Remove or relocate appliance’s contents. Disconnect the appliance from the mains. 3. Open the night curtain to allow free air circulation. 4. - Page 12 4.3. CLEAN CONDENSER EN EN IMPORTANT! Only the ventilation grating to the condenser may be opened. Only a trained specialist may open other covers of the appliance. 8. Unscrew two knobs holding the ventilation grating. 9. Remove the ventilation grating. 10.
-
Page 13: Troubleshooting
5. TROUBLESHOOTING EN E Problem Possible causes Remedy The appliance does not The appliance is not Switch ON the appliance operate switched ON. The power plug is not Reconnect the appliance plugged in correctly to the power supply in a correct way Power relay tripped Wait for at least 5 minutes... - Page 14 Problem Possible causes Remedy EN EN Unpleasant smell Re-evaporation tray is Contact the seller or your dirty local service provider Appliance’s Too high ambient Install the appliance in an performance level of temperature and/or adapted environment cooling is not enough relative humidity % The airflow is restricted Check the distance between the appliance...
- Page 15 Problem Possible causes Remedy EN E Excessive ice formation Too high ambient Install the appliance in an in the evaporator area temperature and/or adapted environment relative humidity % The night curtain does The night curtain is Use the night curtain not operate correctly released incorrectly according to instructions...
-
Page 16: Technical Specifications
6. TECHNICAL SPECIFICATIONS EN EN AVO Standard AVO Standard AVO Standard Type 170-60 170-60 170-60 G Coolboard 90 kg 93.5 kg 100 kg Net Weight Gross Volume 267 l 267 l 267 l 203 l 203 l 203 l Net Volume Width (external) 540 mm 540 mm... - Page 17 EN E AVO Standard Type 170-87 G 150 kg Net Weight Gross Volume 426 l 324 l Net Volume Width (external) 865 mm Depth (external) 630 mm Height (external) 1695 mm Power Input 680 W Defrosting Automatic Avg. Consumption 14 kWh/24h Classification Temperature range +2°C …...
-
Page 18: Environmental Policy & Recycling
7. ENVIRONMENTAL POLICY & RECYCLING EN EN Environmental awareness is key throughout the complete life cycle of our products: from designing to producing it to finally recycling it. We keep a close eye on the economical and effective use of new environmentally friendly materials in our products and production. -
Page 19: Detailed Product Information
9. DETAILED PRODUCT INFORMATION Detailed product information is available from European product database (EPREL). Use the QR code on the rating plate to find the product information from EPREL. You can also access the EPREL using the link: https://eprel.ec.europa.eu/ You will be asked to enter the model ID. You can find the model ID on the rating plate. - Page 20 Aste Finland Oy Koskivuorenkatu 5 30420 FORSSA - FINLAND service@astecoolers.com Tel. +358 (0)2 970 200 160 www.astecoolers.com...
