Summary of Contents for i5 Industries Kai BF24

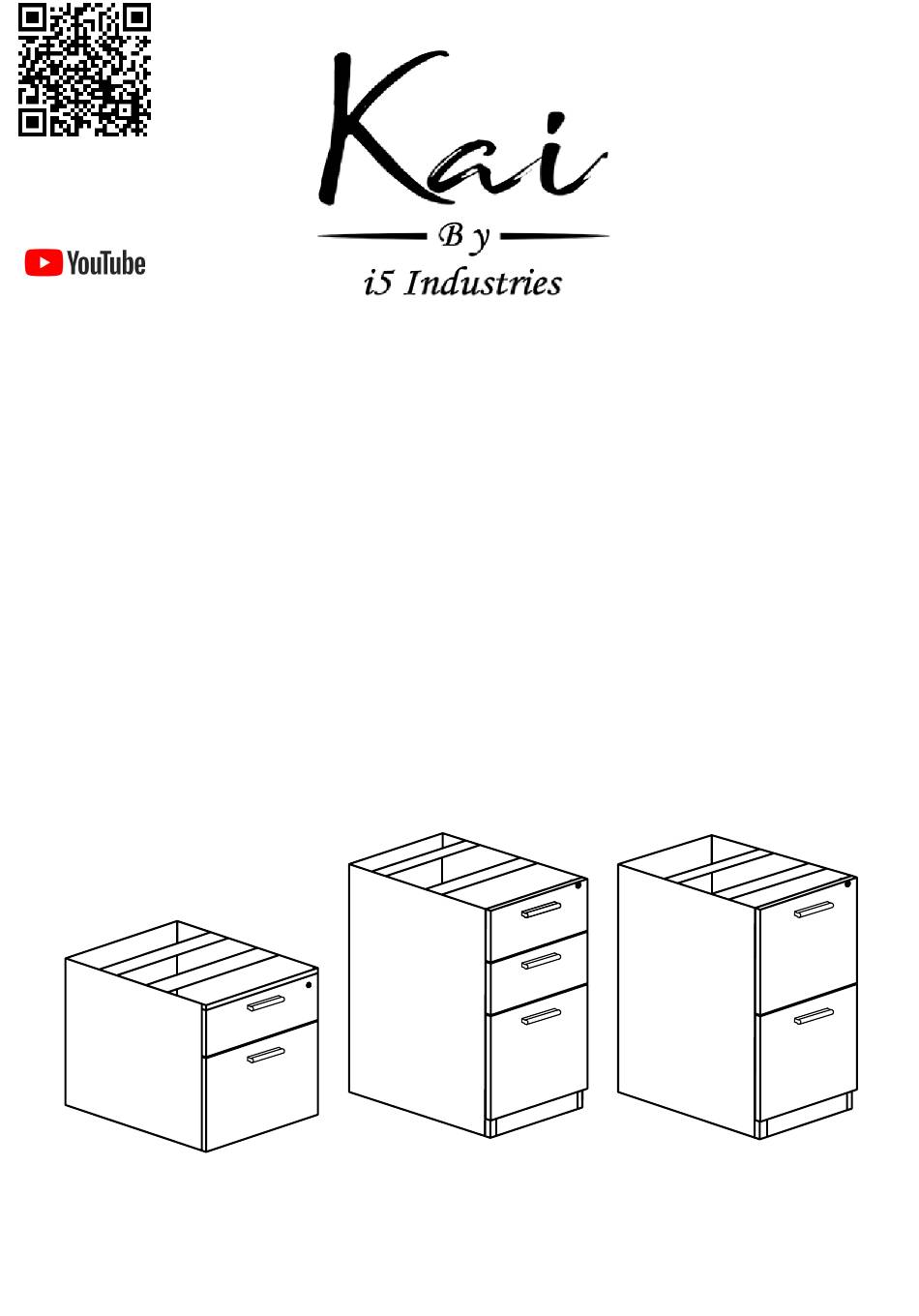

- Page 1 Scan Me to watch Assembly Instructions Assembly: BF/BBF/FF Pedestal MODELS: BF24 Box/File Pedestal BBF24 Box/Box/File Pedestal FF24 File/File Pedestal...
- Page 2 INFORMATION BF/BBF/FF PEDESTAL • Place all laminated parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched. • Check to be sure that you have all parts and hardware. • Remove all wrapping materials, including staples & packing straps before you start to assemble.
-
Page 3: Parts & Hardware
PARTS & HARDWARE BF/BBF/FF PEDESTAL PART QTY. 3 (BBF) Metal Handle 2 (FF/BF) 2 (BBF/BF) File Clip 2 (FF) 1 (BBF/BF) Metal Bar 2 (FF) Bolt Washer Wood Screw L Bracket Adjustable Glide 4 (BBF/FF) Keys 1 Set Wood Screws... -
Page 4: Hardware Installation
1. HARDWARE INSTALLATION BF/BBF/FF PEDESTAL To release drawer, push the left tab down and right tab up. Remove Drawers Tighten clockwise... - Page 5 2a. MOUNTING INSTALLATION SETUP: FOR BF PED ONLY BF/BBF/FF PEDESTAL Attach pedestal to top of your return shell, desk shell, or credenza shell using the machine bolts and washer (D) x4 (E) x4. For added support use (L) x4 to tie in your pedestal to the inside of the end support. FLIP RETURN, DESK OR CREDENZA DO NOT OVER TIGHTEN Tighten x4 (L)
- Page 6 2b. MOUNTING INSTALLATION SETUP: FOR BBF & FF PED ONLY BF/BBF/FF PEDESTAL Insert pedestal with drawers removed into place for mounting 4X (F) Place drawers back on tracks and push back into place.
